Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 150mm -
Fork RockShox ZEB Ultimate
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox ZEB Ultimate, Charger 2.1 RC2 damper, DebonAir spring, 51mm offset
Rear Shock
RockShox Super Deluxe Select+ RT, 205mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano SLX M7100, 170mm length
Bottom Bracket
Shimano MT800B
Chain
Shimano Deore M6100, 12-speed
Chain Guide
Upper slider
Pedals
HT PA12 platform
Wheels
Front Hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
DT Swiss E1900 Spline wheelset
Spokes
DT Swiss E1900 Spline wheelset
Tires
Front: WTB Vigilante, TCS, Light/High Grip, 29" x 2.5", Rear: WTB Trail Boss G2, TCS, Light/Fast Rolling, 29" x 2.4"
Brakes
Brakes
Shimano SLX M7120, 4-piston, Shimano RT70 rotors
Brake Levers
Shimano SLX M7120
Cockpit
Stem
Race Face Turbine R, 40mm length, 35mm bar clamp
Handlebar
Race Face Turbine R, 800mm width, 20mm rise, 35mm clamp diameter
Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS LEV Integra dropper, Drop: 125mm (MD), 150mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 756 mm | 786 mm | 807 mm |
| Rake | 51 mm | 52 mm | 51 mm |
| Trail | 115 mm | 114 mm | 115 mm |
| Stack | 608 mm | 617 mm | 621 mm |
| Reach | 438 mm | 463 mm | 483 mm |
| Top Tube Length | 600 mm | 627 mm | 649 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 445 mm | 465 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1204 mm | 1234 mm | 1255 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

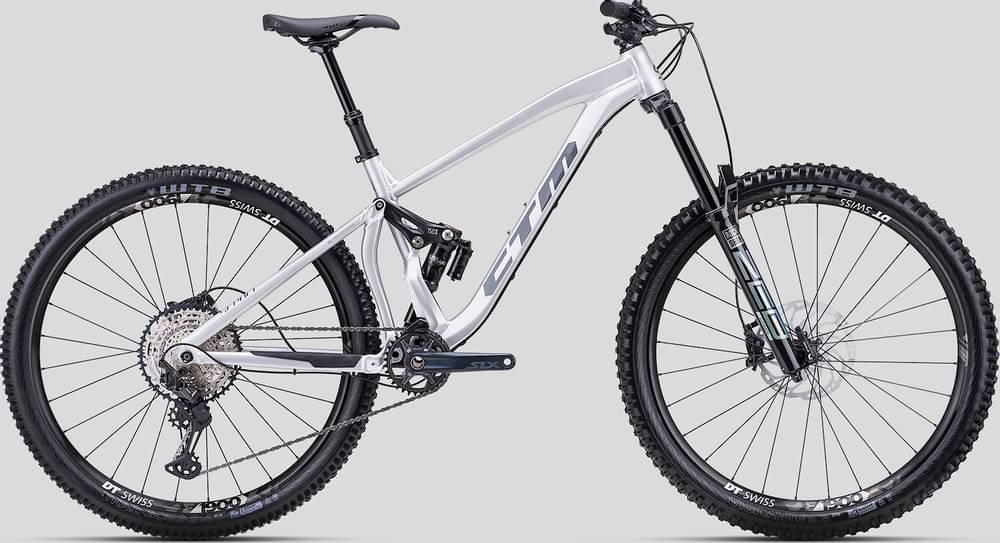

Scroll Pro 29″ completes the Ctm Scroll model. 17 bikes variations carry this model name so far. You can easily view all of the Ctm Scroll bikes models from 2021, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, Scroll Pro 29″ has a weight of 15.2 kg (33.51 lbs). To sum up, it’s 6.52% heavier than the average weight of Enduro bikes.
Scroll Pro 29″ components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Select+ RT, with a travel distance of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Scroll Pro 29″ are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
CTM Scroll Pro 29″ includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
