Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox ZEB
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox ZEB, Charger R damper, DebonAir spring, 51mm offset
Rear Shock
RockShox Super Deluxe Select+ RT, 205mm x 65mm
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Shimano Deore M6100, 170mm length
Bottom Bracket
Shimano
Chain
Shimano Deore M6100, 12-speed
Chain Guide
Upper slider
Pedals
HT PA12 platform
Wheels
Front Hub
Front: Shimano MT400, 110x15mm Boost, Rear: Shimano MT410, 148x12mm Boost, MICRO SPLINE driver
Rear Hub
Front: Shimano MT400, 110x15mm Boost, Rear: Shimano MT410, 148x12mm Boost, MICRO SPLINE driver
Rims
WTB ST i29 TCS 2.0, 32 hole
Tires
Front: WTB Vigilante, TCS, Light/High Grip, 29" x 2.5", Rear: WTB Trail Boss G2, TCS, Light/Fast Rolling, 29" x 2.4"
Brakes
Brakes
Shimano MT420, 4-piston, Shimano RT64 rotors
Brake Levers
Shimano MT420
Cockpit
Stem
Race Face Aeffect R, 40mm length, 35mm bar clamp
Handlebar
Race Face Aeffect R, 780mm width, 20mm rise, 35mm clamp diameter
Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS Rage-i dropper, Drop: 125mm (MD), 150mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 756 mm | 786 mm | 807 mm |
| Rake | 51 mm | 52 mm | 51 mm |
| Trail | 115 mm | 114 mm | 115 mm |
| Stack | 608 mm | 617 mm | 621 mm |
| Reach | 438 mm | 463 mm | 483 mm |
| Top Tube Length | 600 mm | 627 mm | 649 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 445 mm | 465 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1204 mm | 1234 mm | 1255 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

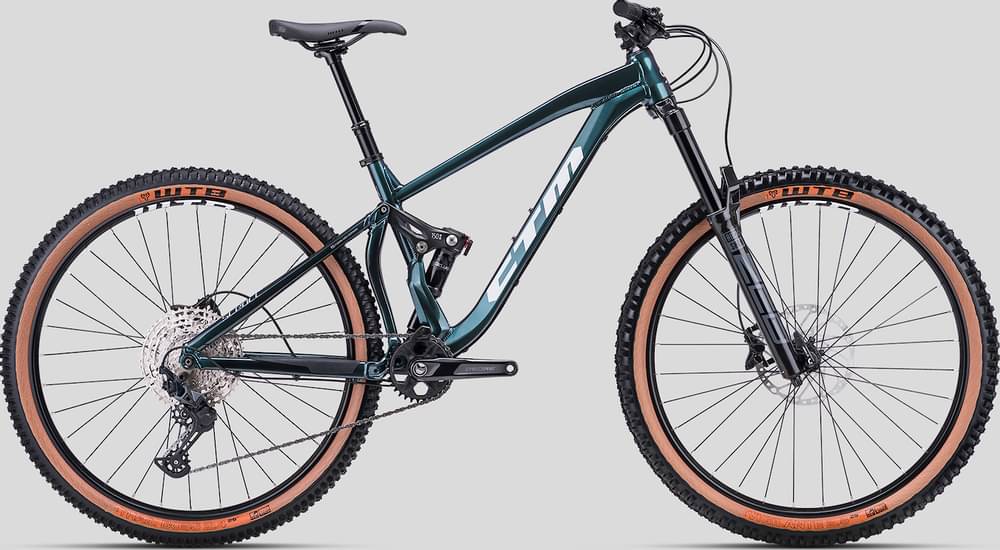

Scroll Xpert 29″ is a Ctm Scroll model. CTM launched 17 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.5 kg (34.17 lbs), the Scroll Xpert 29″ model is a bit heavier than average. In short, the average Enduro bike weight is 8.62% lower than this one.
Overview of components
Fork
The Scroll Xpert 29″ comes factory-installed with the RockShox ZEB fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe Select+ RT model, with a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Scroll Xpert 29″ model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. CTM Scroll Xpert 29″ has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Scroll Xpert 29″ comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
CTM Scroll Xpert 29″ comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
