Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork Suntour NEX -
Groupset Altus -
Suspension Hardtail -
Motor Bafang 250W 80Nm hub-drive -
Battery 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")
Suspension Fork
Suntour NEX-E25 RL DS 700C
Drivetrain
Rear Derailleur
Shimano Altus RD-M2000
Shift Levers
Shimano Altus SL-M2000RA 9 sp.
Crank
Bafang 42T, 170mm
Chain
KMC X9e 124L
Pedals
VPE-537
Wheels
Rear Hub
Novatec D041DSB/D142TSE,36H,CL
Rims
WTB ST i23 TCS 2.0 29" 36H
Tires
WTB Riddler 700x45C Comp
Brakes
Brakes
ZOOM HB875/CL180
Cockpit
Stem
CTM UNO/70mm
Handlebar
CTM rise bar, 700/31.8 mm
Headset
NECO H153
Seat
Saddle
SR Vivo Ergo Man
Seatpost
CTM 350x31.6 mm
Motor & Battery
Motor
BAFANG M420 / 250W / 80Nm
Battery
630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Front Center | 675 mm | 685 mm | 694.8 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 598 mm | 608 mm | 618 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1142 mm | 1152 mm | 1162 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
Model Overview

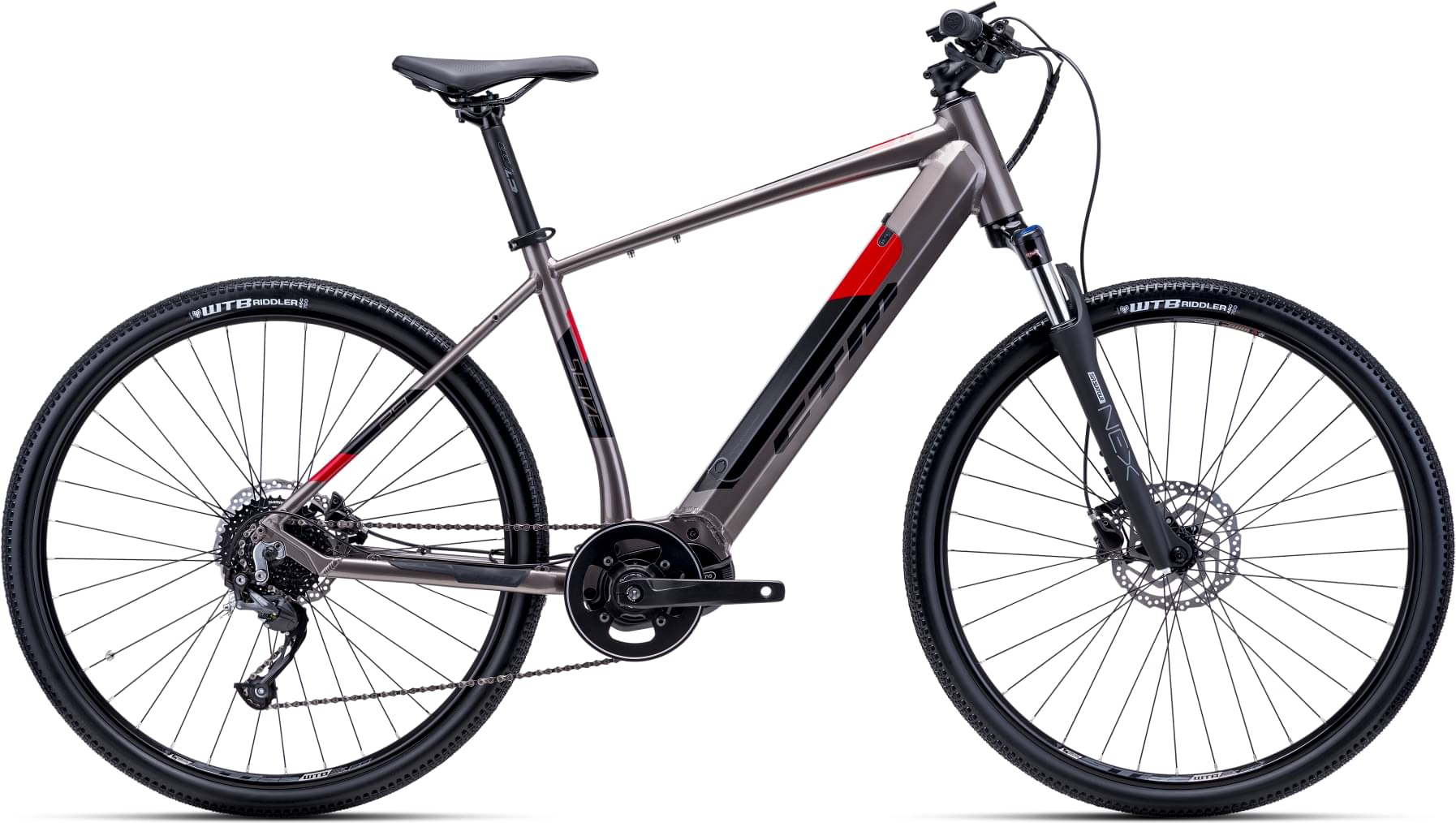

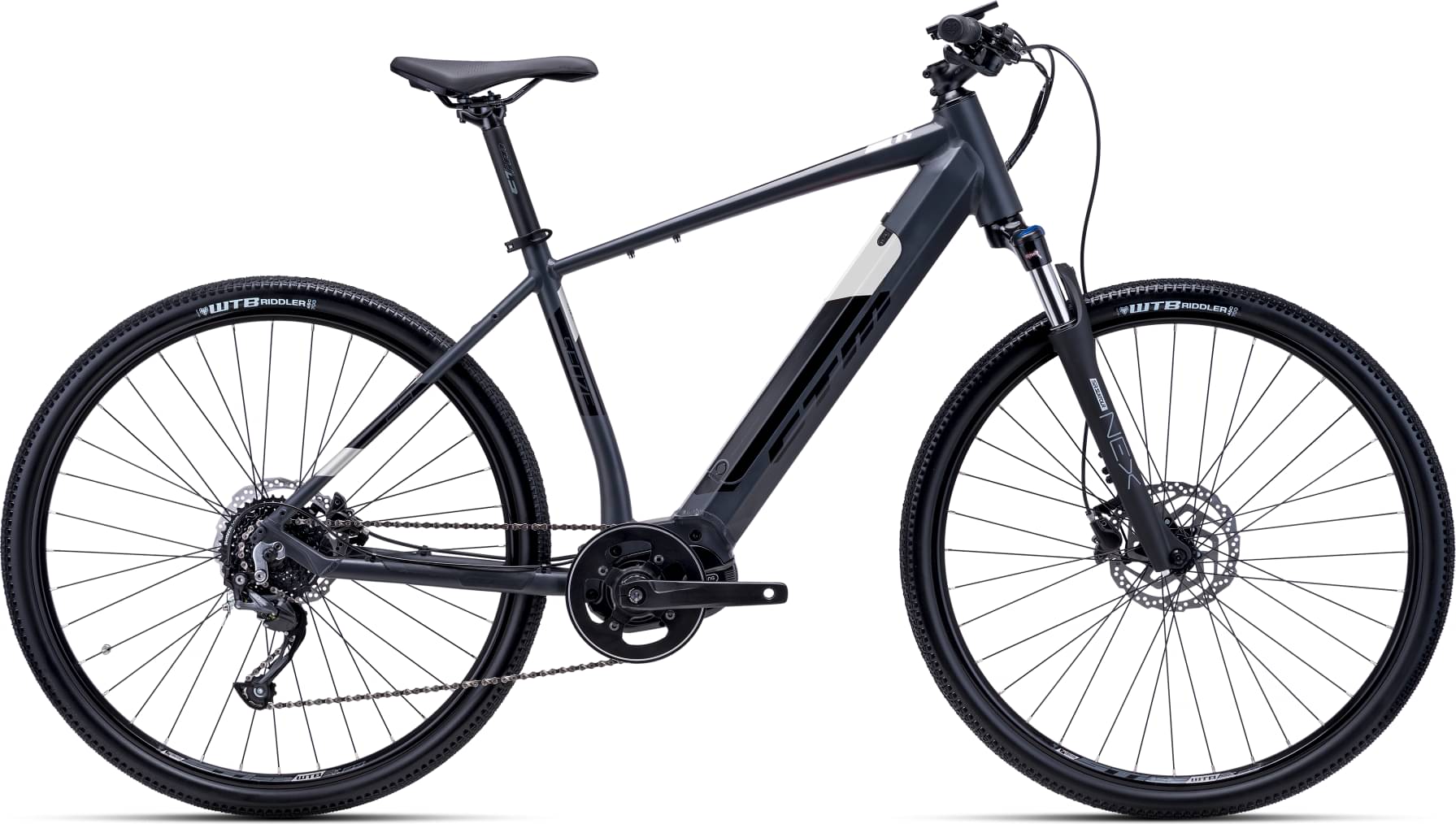

SENZE MAN completes the Ctm E Senze model. There are 6 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CTM SENZE MAN 2022 is the cheapest e-bike model and costs 2123$. CTM SENZE LADY TREK 2022 is the most expensive one and costs 2229$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2123$. Doing a quick comparison, we notice that SENZE MAN price is 16.82% smaller than the average cost of a Hybrid e-bike.
SENZE MAN components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The SENZE MAN 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SENZE MAN has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
SENZE MAN comes in 3 sizes, that range from 160 cm – 205 cm (5.25 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
