Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Suntour XCR Air
-
Groupset Deore, FSA -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, rear travel 130mm, M, L, XL

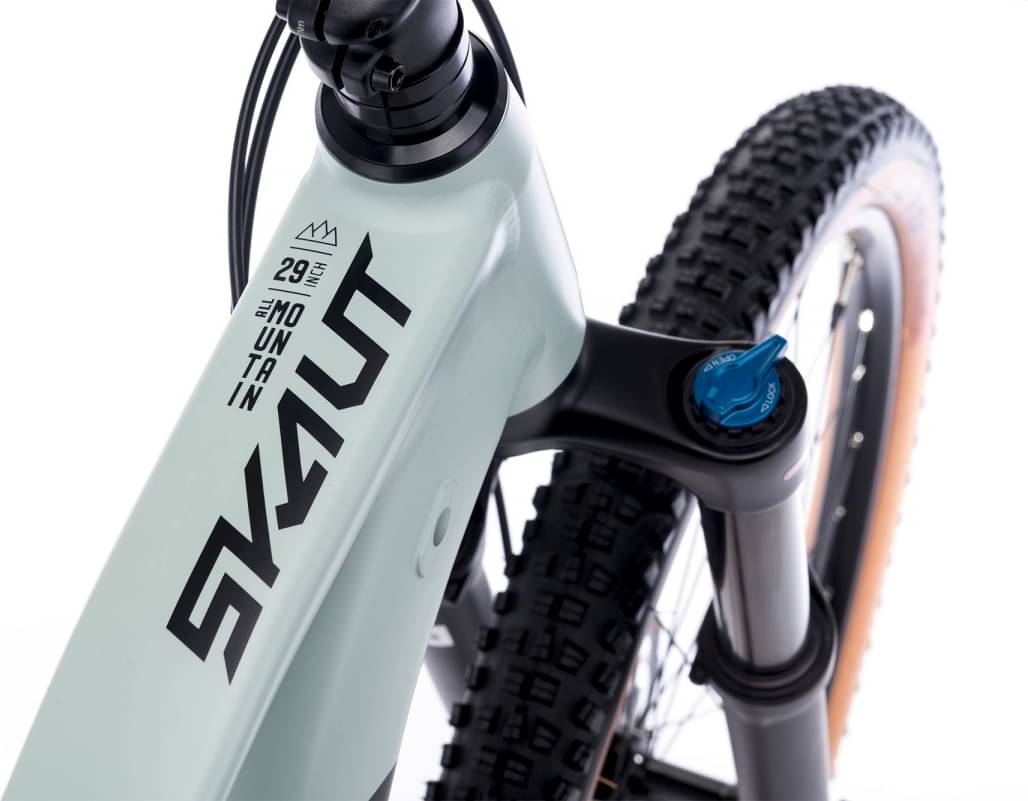

Suspension Fork
Suntour XCR34, AIR, LOR, DS, 140mm, boost™ 15x110axle
Drivetrain

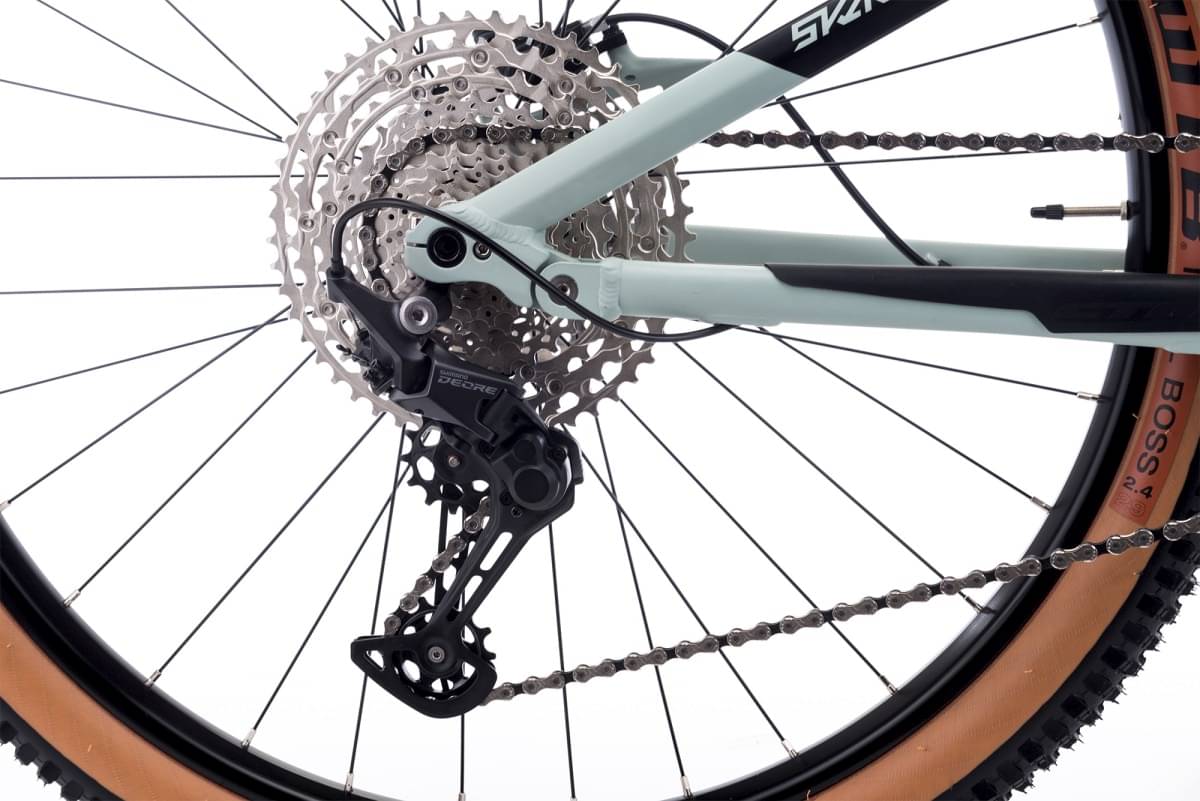

Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.

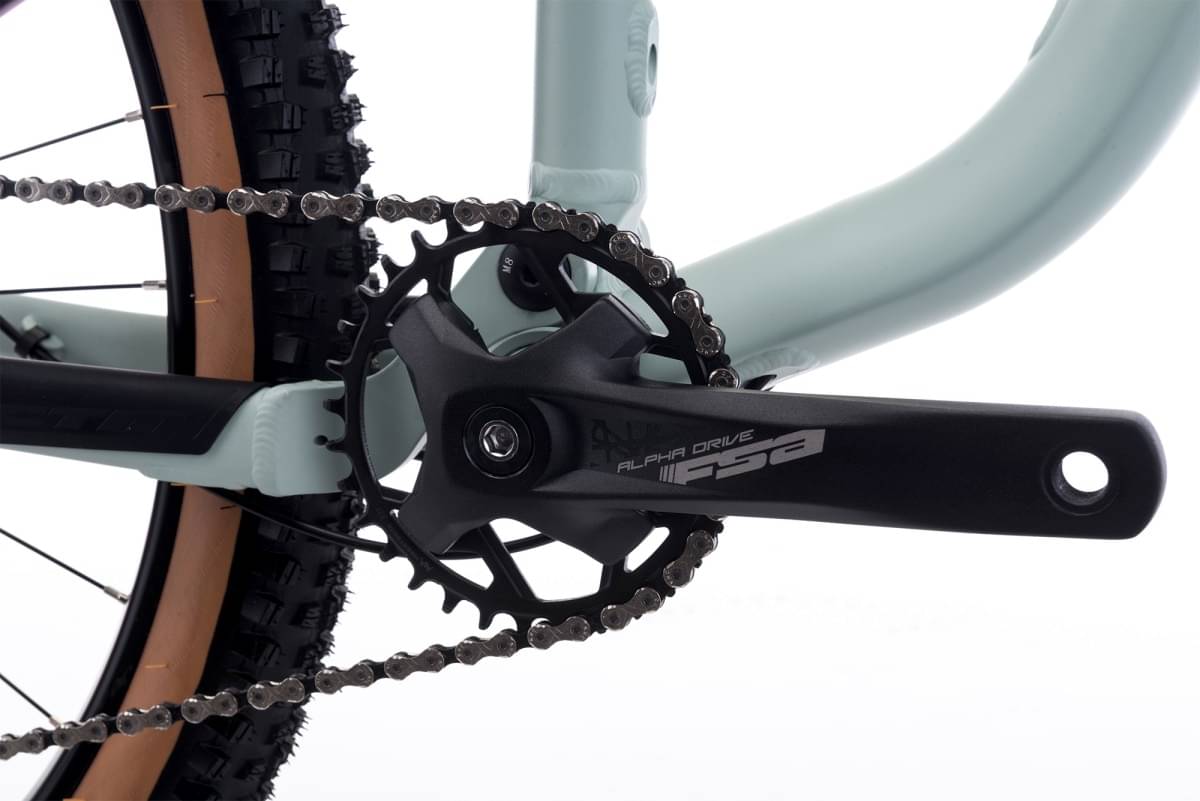

Crank
FSA Alpha Drive 1X, 32T, 170mm
Chain
KMC X11/120L
Pedals
VPE-537
Wheels
Rear Hub
Shimano MT400 / 32H
Rims
WTB STi25, TCS, 29", 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
ZOOM HB875/CL160-180

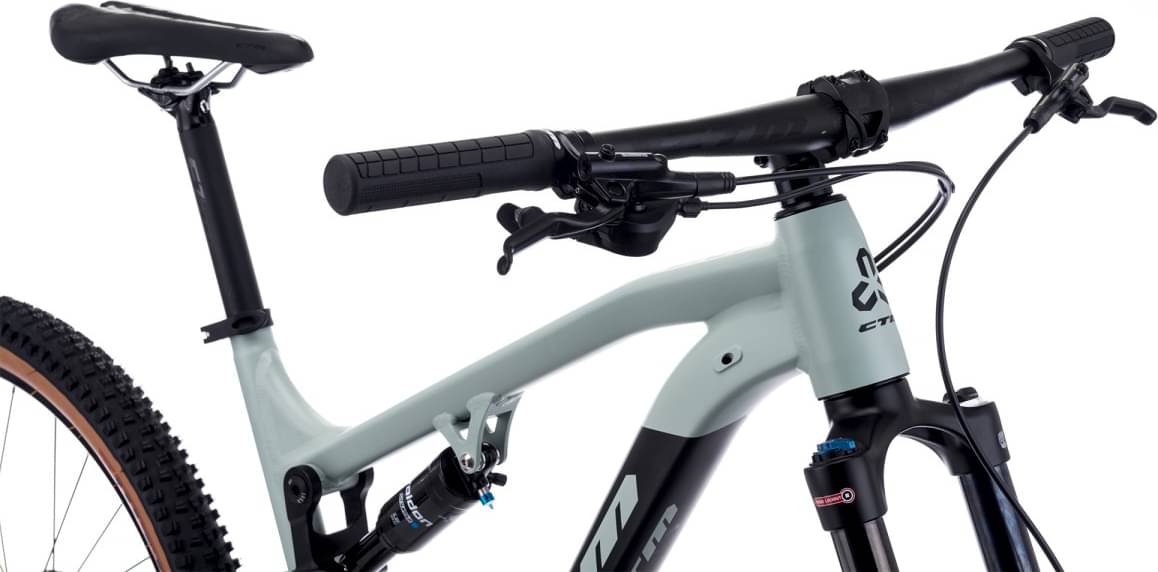

Cockpit
Stem
CTM ASM04 45 mm
Handlebar
CTM HB352, 35dia, 760mm
Headset
NECO H156
Seat
Saddle
CTM FLAT
Seatpost
CTM SPDC1, 350x31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.27 mm |
| Front Center | 752 mm | 774 mm | 796 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 622 mm | 627 mm | 632 mm |
| Reach | 456 mm | 476 mm | 496 mm |
| Top Tube Length | 610 mm | 631 mm | 652 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 440 mm | 465 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1205 mm | 1227 mm | 1249 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
Model Overview
SKAUT 1.0 is a Ctm Skaut model. There are 10 bikes that carry this model name. Take a sneak peek at all Ctm Skaut bikes models from 2022, by clicking here.
Model range prices
CTM SKAUT 1.0 2022 is the cheapest bike model and costs 1592$. CTM SKAUT 3.0 2022 is the most expensive one and costs 2016$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1592$. Comparing the average cost of a Trail bike to this one, you will see that SKAUT 1.0 price is 73.49% smaller.
SKAUT 1.0 components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

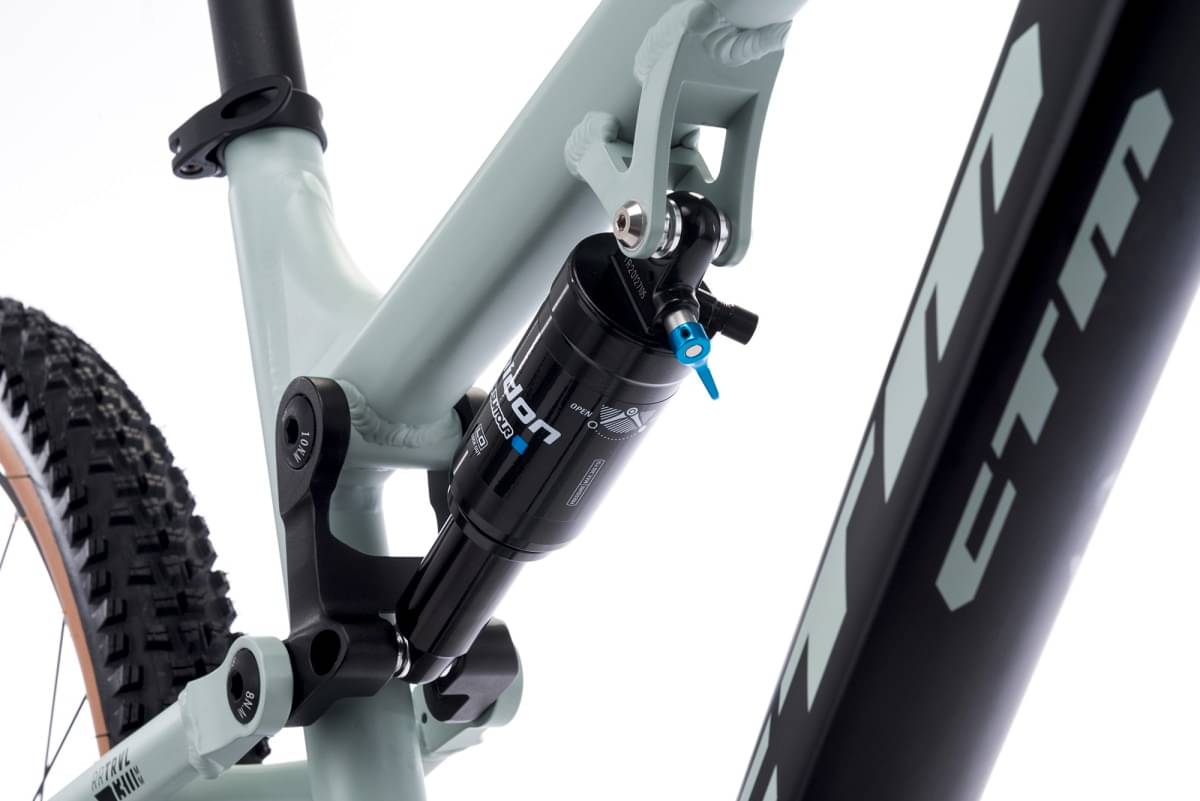

Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on SKAUT 1.0 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. CTM SKAUT 1.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
SKAUT 1.0 comes in 3 sizes, that range from 165 cm – 205 cm (5.41 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
