Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Suntour XCR Air
-
Groupset Deore, FSA -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

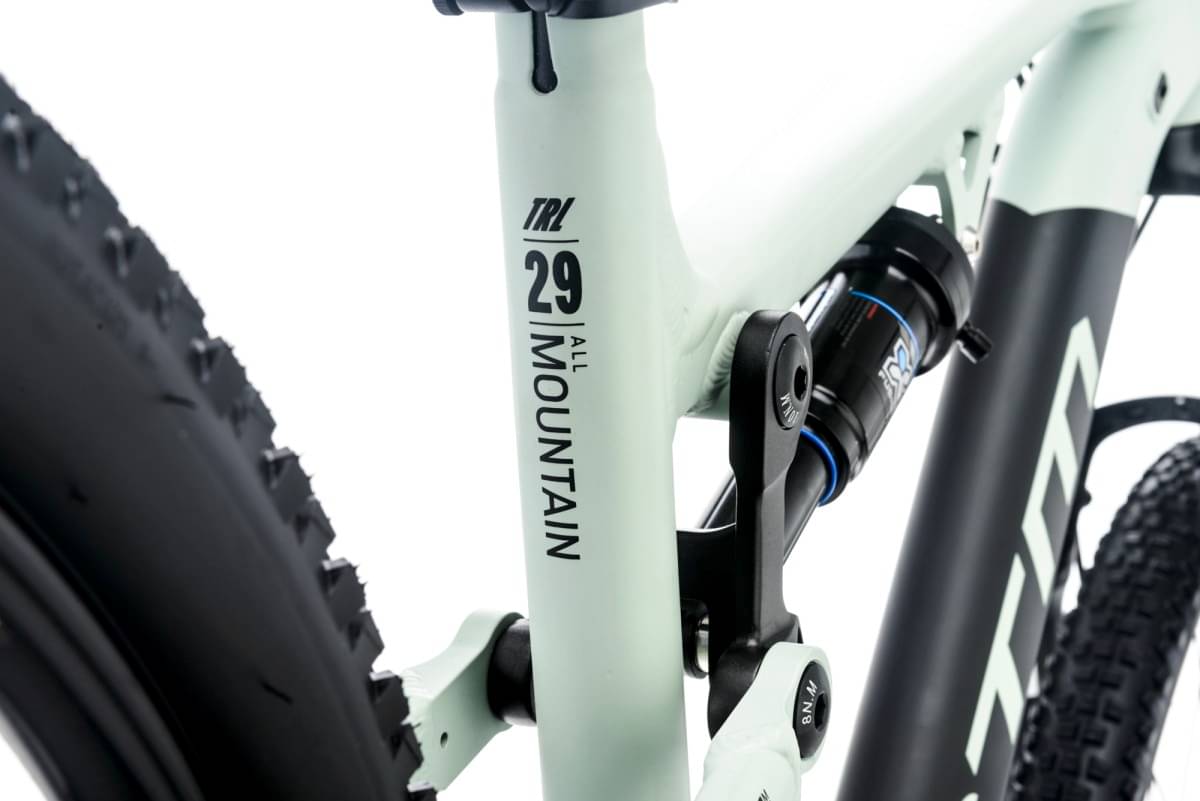

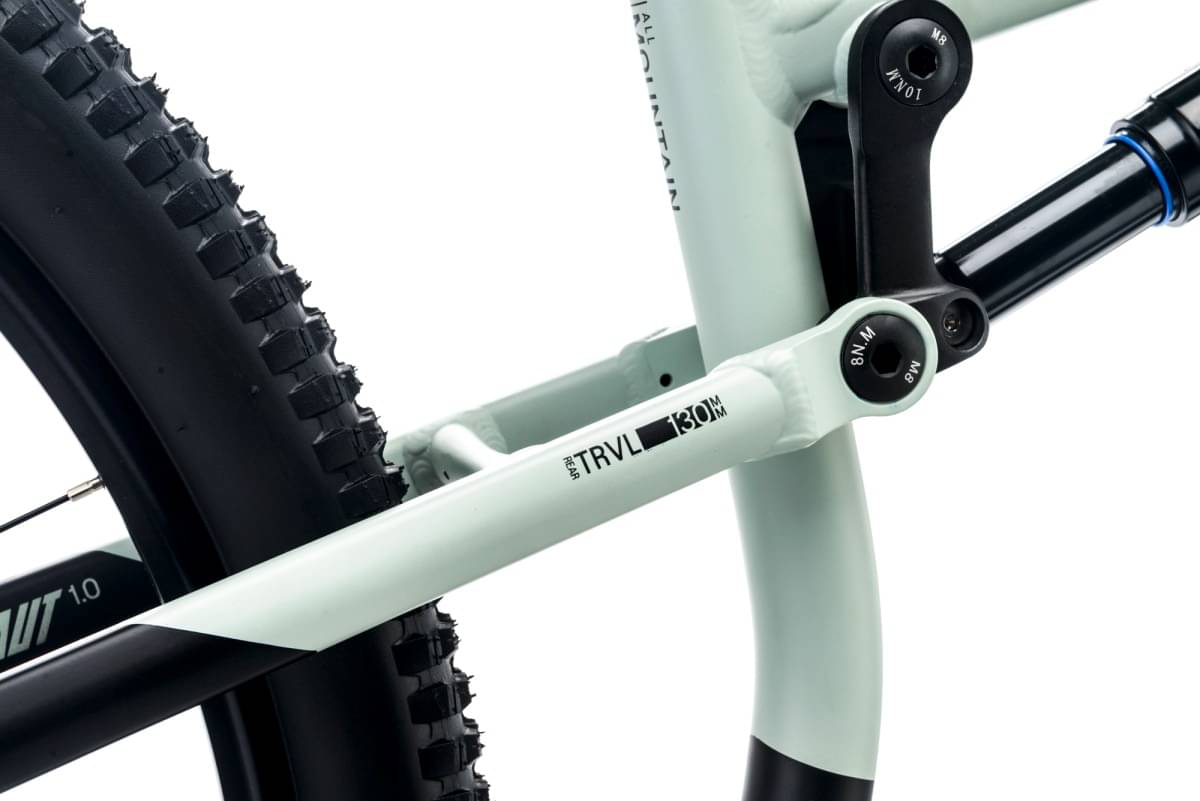

ALU 6061, rear travel 130mm, S, M, L, XL
Suspension Fork

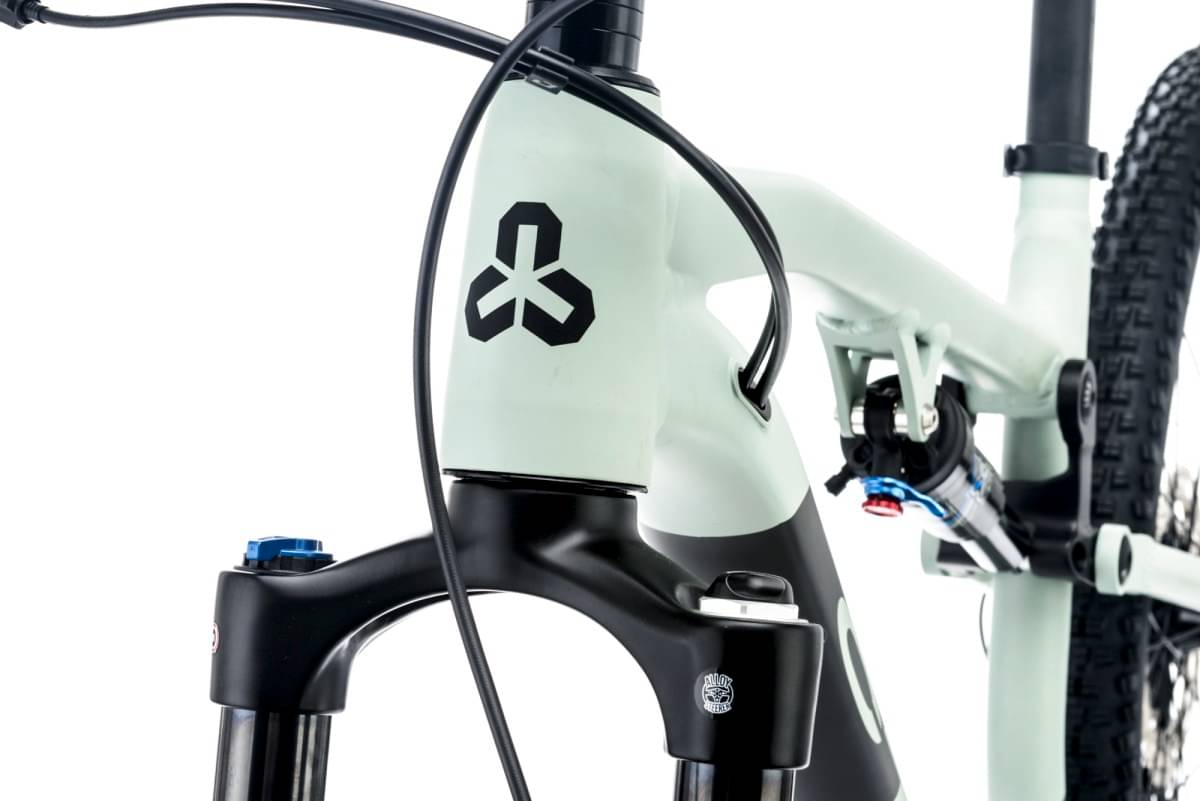

Suntour XCR34, AIR, LOR, DS, 140mm, boost™ 15x110axle
Drivetrain
Rear Derailleur

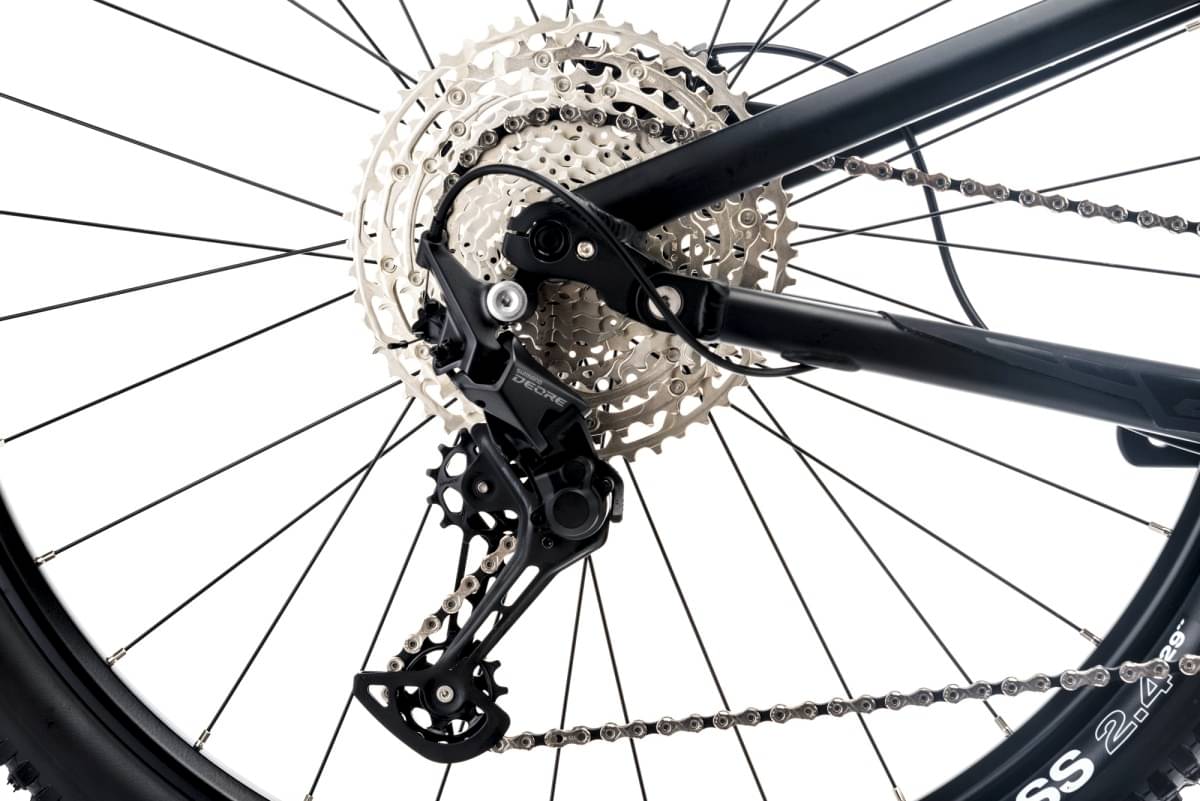

Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.
Crank

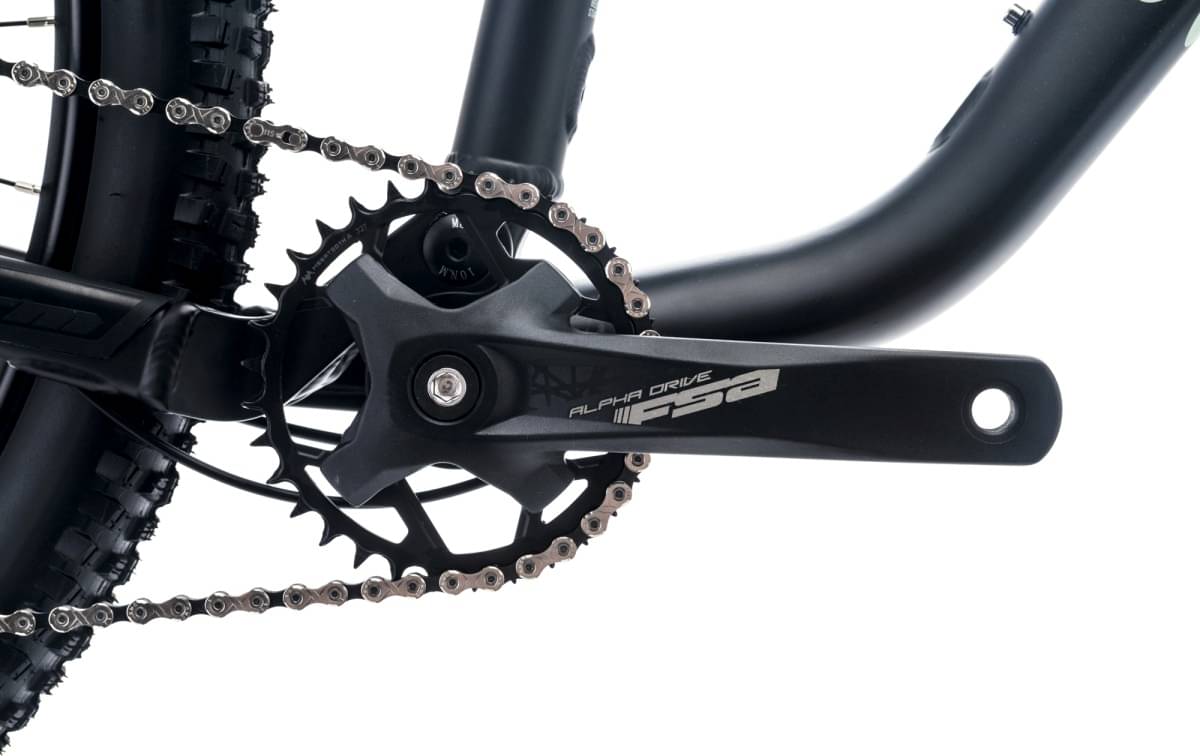

FSA Alpha Drive 1X, 32T, 170mm
Chain
KMC X11/120L
Pedals
VPE-537
Wheels
Rear Hub
Shimano MT400 / 32H
Rims
WTB STi25, TCS, 29", 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes

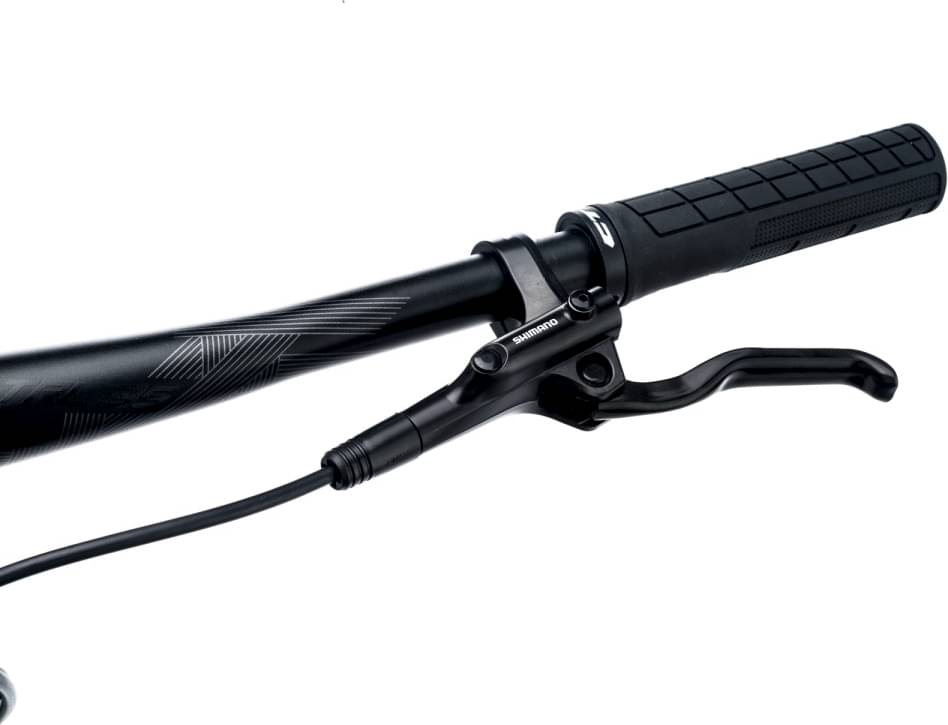

Shimano MT200 / SMRT10S,M
Cockpit
Stem
CTM ASM04 45 mm
Handlebar
CTM HB352, 35dia, 760mm
Headset
NECO H156
Seat
Saddle
CTM FLAT
Seatpost
CTM SPDC1, 350x31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Front Center | 727 mm | 757 mm | 779 mm | 806 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 620 mm | 622 mm | 624 mm | 629 mm |
| Reach | 426 mm | 456 mm | 476 mm | 501 mm |
| Top Tube Length | 579 mm | 609 mm | 631 mm | 656 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 440 mm | 465 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1180 mm | 1210 mm | 1232 mm | 1259 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 205 cm |
Model Overview
SKAUT 1.0 completes the Ctm Skaut model. 10 bikes variations carry this model name so far. Take a sneak peek at all Ctm Skaut bikes models from 2023, by clicking here.
Model range prices
CTM SKAUT 1.0 2023 is the cheapest bike model and costs 1698$. CTM SKAUT 4.0 2023 is the most expensive one and costs 2229$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 1698$. Doing a quick comparison, we notice that SKAUT 1.0 price is 62.66% smaller than the average cost of a Trail bike.
Overview of components
Fork
CTM SKAUT 1.0 2023 bike is equipped with the Suntour XCR Air fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

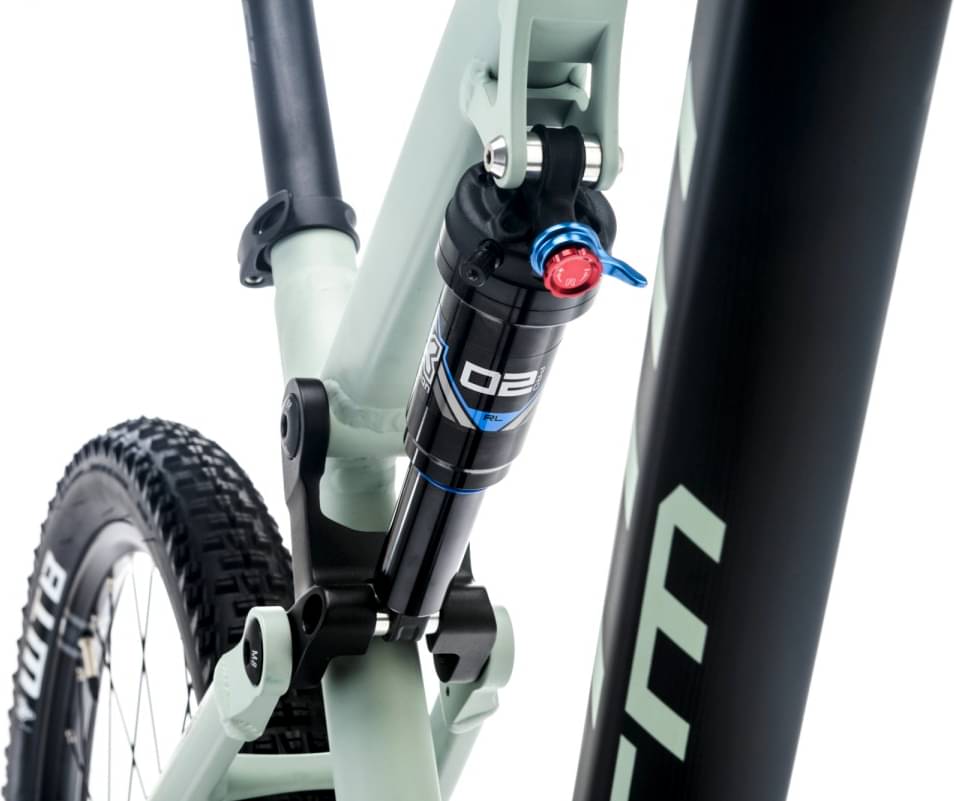

Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, CTM SKAUT 1.0 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.

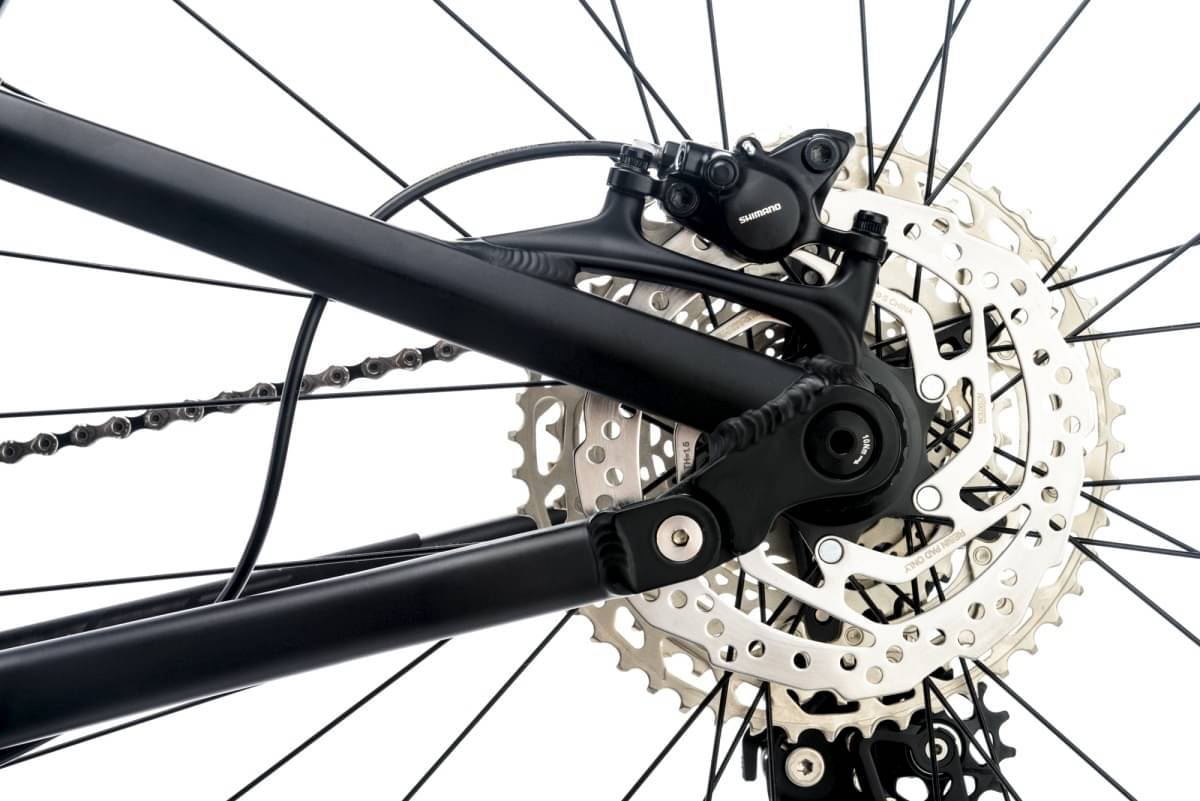

Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
SKAUT 1.0 comes in 4 sizes, that range from 155 cm – 205 cm (5.09 ft – 6.73 ft). In conclusion, you won’t have a problem finding one that suits you.
