Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork Suntour NCX -
Groupset Deore, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (17"), L (19"), XL (21") double butted
Suspension Fork
Suntour NCX-D-AIR RL DS 700C
Drivetrain
Rear Derailleur
Shimano Deore RD-T6000
Shift Levers
Shimano Deore SL-T6000/10sp.
Crank
Shimano FCT6010EB866CS
Chain
KMC X10/114L
Pedals
VPE 461
Wheels
Rear Hub
CTM alloy center-lock 32H QR black
Rims
WTB ST i23 TCS 2.0 / 700c 32H
Tires
WTB Riddler 700x45C Comp
Brakes
Brakes
ZOOM HB875/CL160
Cockpit
Stem
CTM AS/90ex plus design
Handlebar
CTM rise bar, 700/31.8 mm
Headset
Something semi-integrated
Seat
Saddle
SR Essenza Athletic
Seatpost
CTM SP-3D2, 350/31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Front Center | 660 mm | 670 mm | 680 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 600 mm | 610 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1101 mm | 1112 mm | 1122 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
About this model

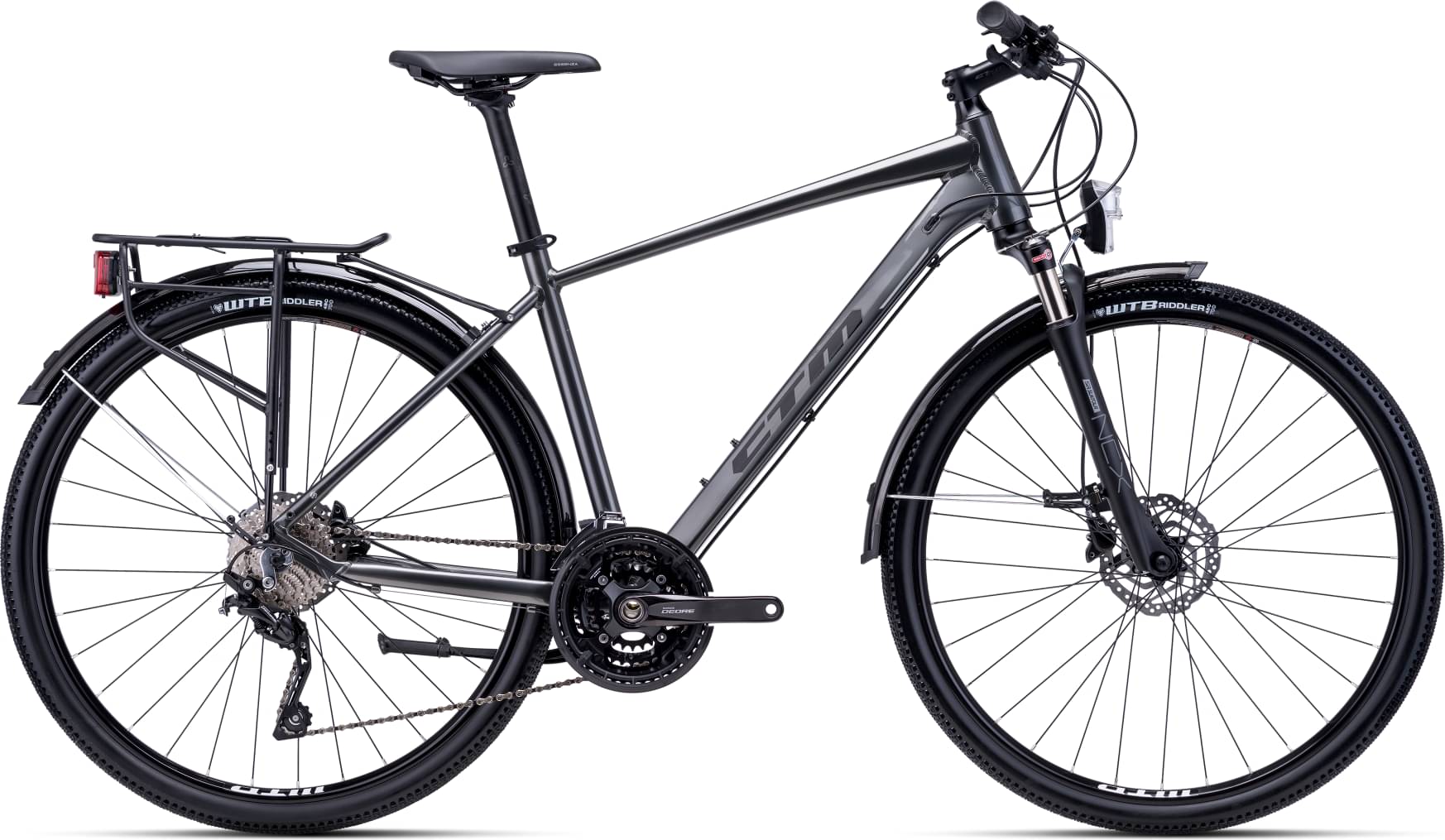

STARK 3.0 TREK completes the Ctm Stark model. CTM released 16 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the CTM STARK 1.0 2022 has a starting price of 540$. CTM STARK 4.0 TREK 2022 on the other hand is the most expensive at 1337$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring bikes
If you want an acceptable Touring bike you should know that the average price is 1007$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 1018$. Doing a quick comparison, we notice that STARK 3.0 TREK price is 1.09% higher than the average cost of a Touring bike.
Overview of components
Fork
The STARK 3.0 TREK comes factory-installed with the Suntour NCX fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, CTM STARK 3.0 TREK 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The STARK 3.0 TREK has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
STARK 3.0 TREK comes in 3 sizes, that range from 160 cm – 205 cm (5.25 ft – 6.73 ft). In short, you can easily find one that suits you.
