Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 150mm -
Fork RockShox ZEB Ultimate
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036 / 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, rear travel 150 mm, MD, LG, XL

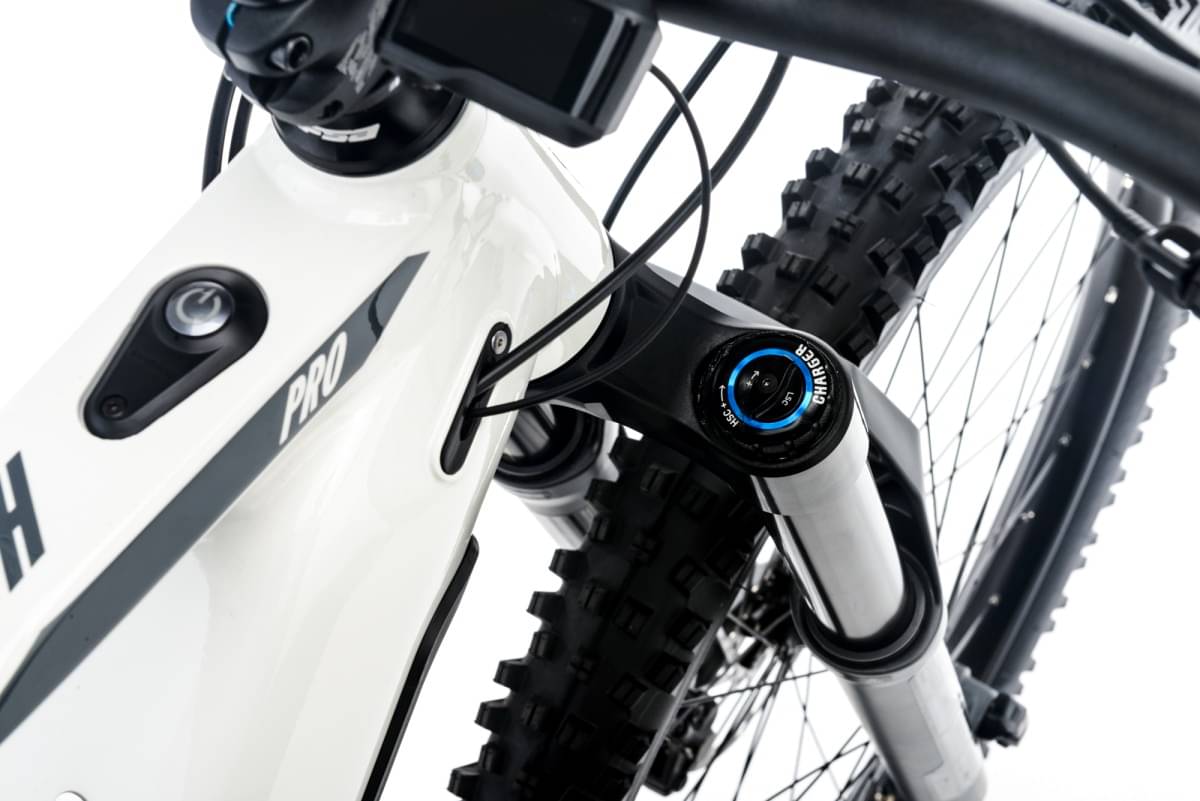

Suspension Fork
Rock Shox ZEB ULTIMATE CHARGER3 RC2, 170mm, 15x110axle
Drivetrain

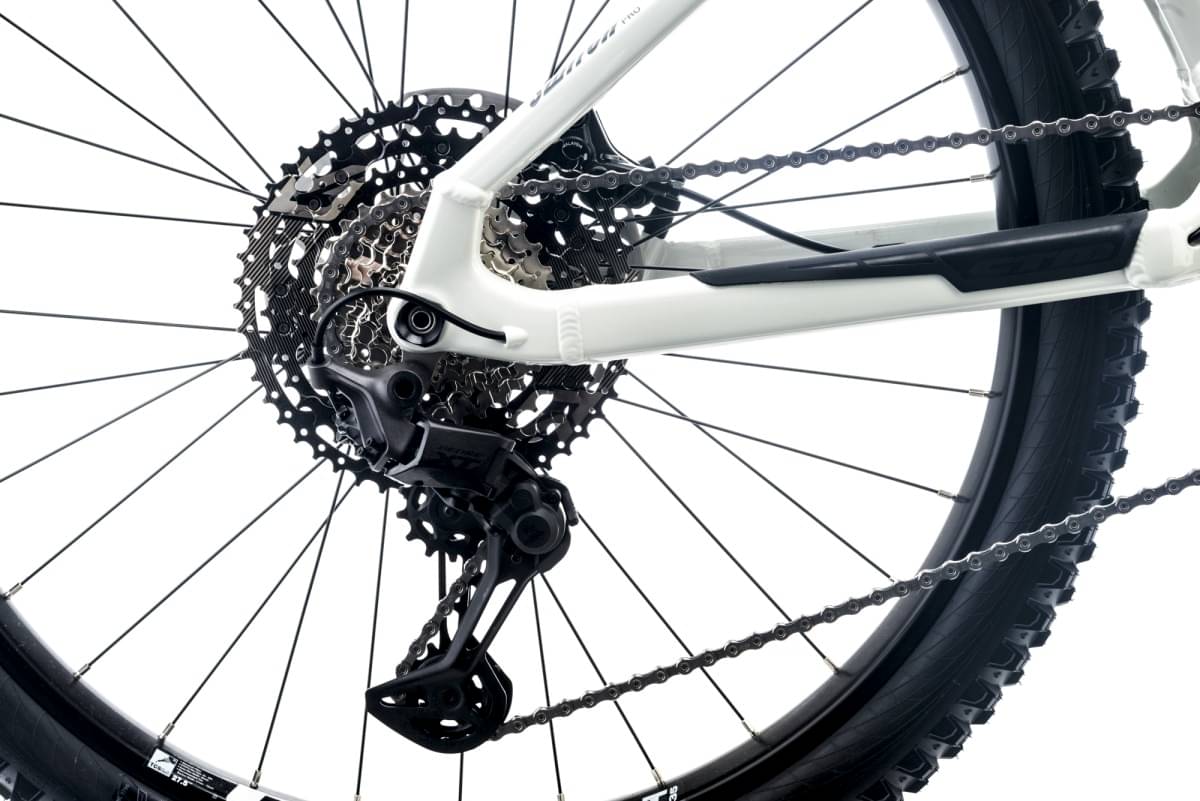

Rear Derailleur
Shimano Deore XT RD-M8130
Shift Levers
Shimano Deore XT SL-M8130/11sp.

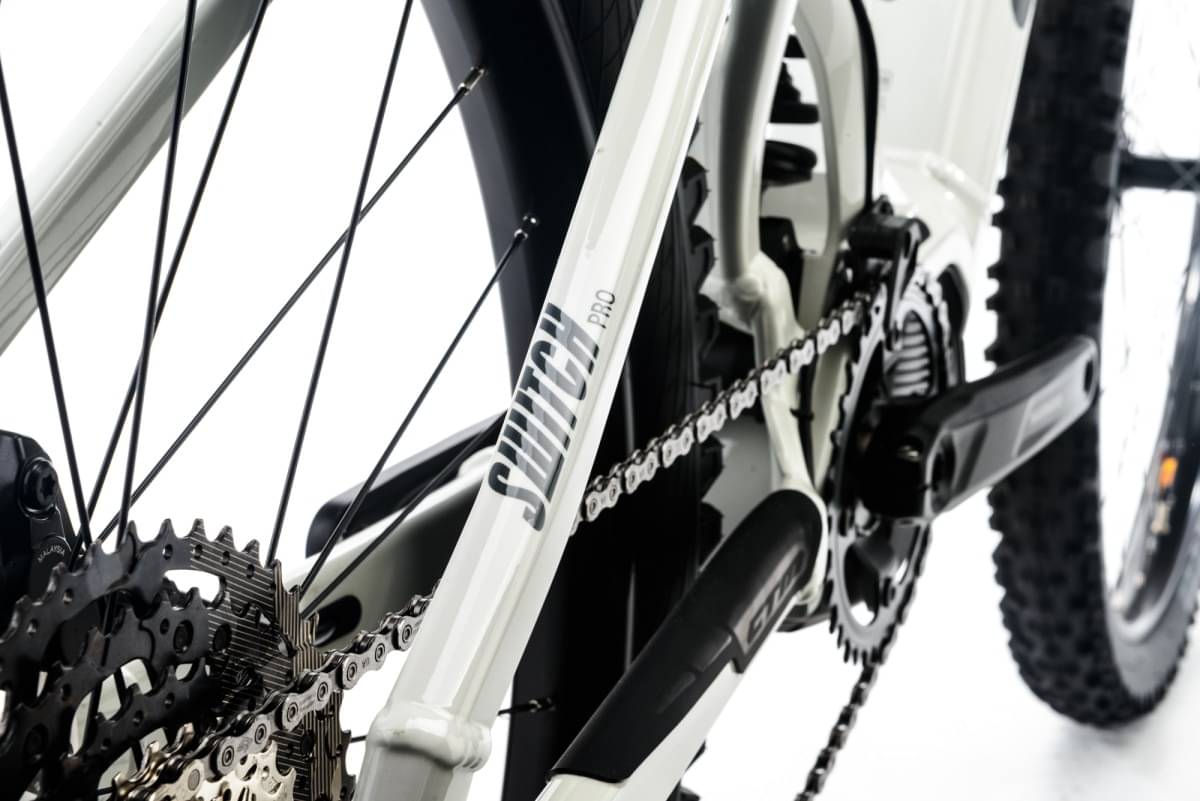

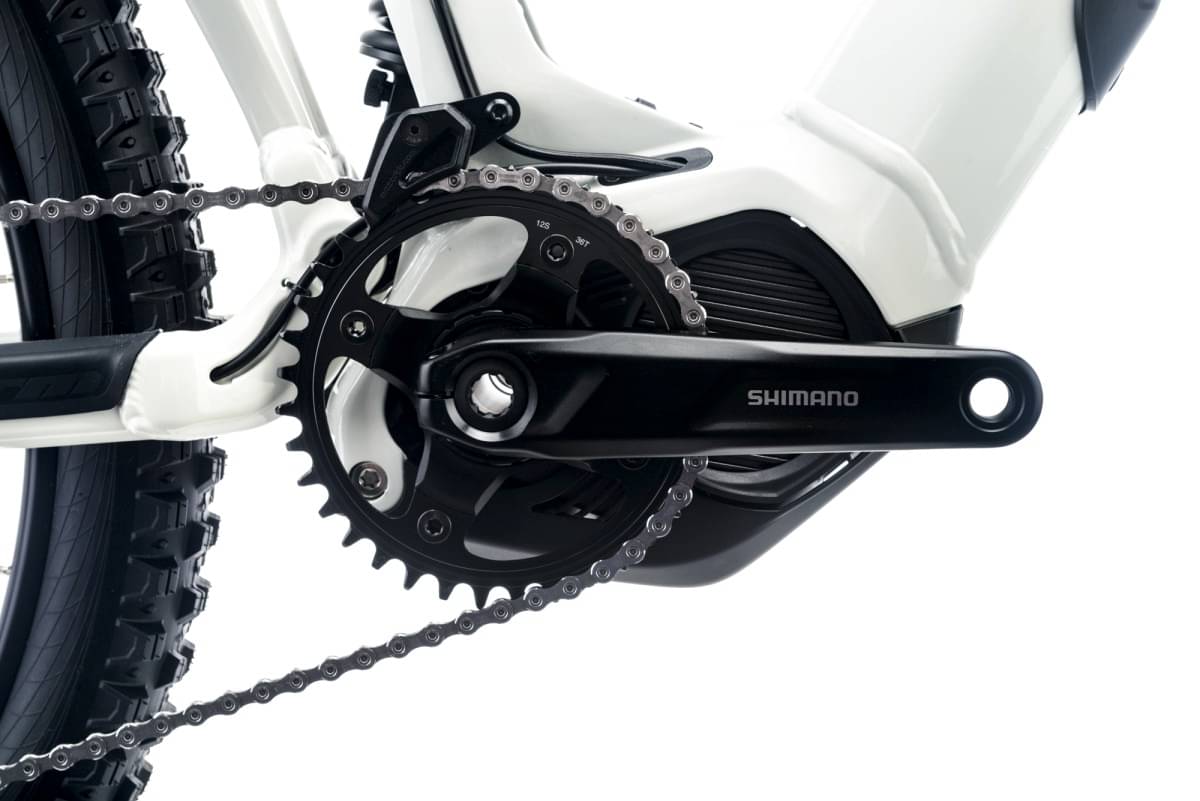

Crank
Shimano FC-EM600, CE80, 36T, 165mm
Chain
Shimano CN-LG500 122l
Pedals
HT-PA12
Wheels
Rear Hub
Shimano MT400 / MT510 boost / 32H
Rims
WTB ST i35 TCS 2.0 / 27.5" / 29" / 32H
Tires
WTB Verdict 27.5x2.5" / Vigilante 29x2.6"
Brakes
Brakes
Shimano MT420 / SMRT64LEC
Cockpit
Stem
Race Face CHESTER 35, 40mm

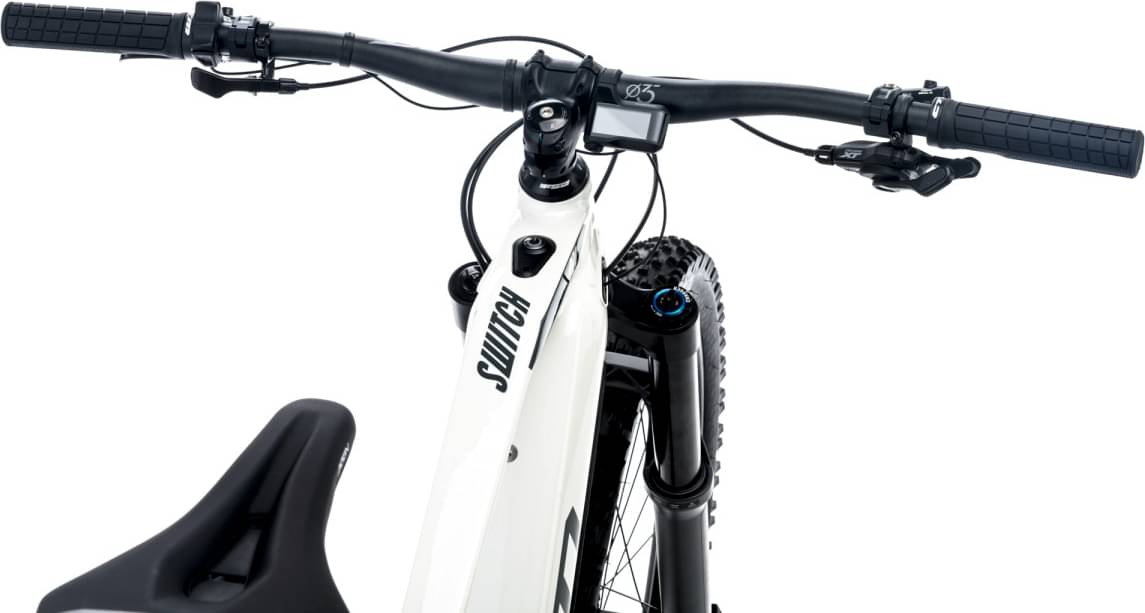

Handlebar
Race Face CHESTER 35/780mm, rise 20
Headset
FSA Orbit 1.5
Seat

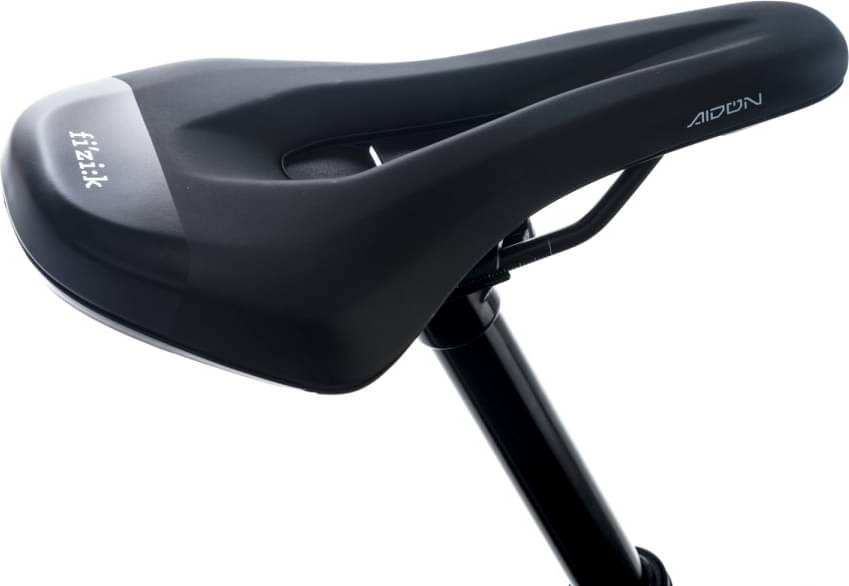

Saddle
PHYSICS Terra Aidon X5
Seatpost
KS RAGEi (M-125mm/L-150mm/XL-170mm)
Motor & Battery
Motor
SHIMANO STEPS EP8 / 250W / 85Nm

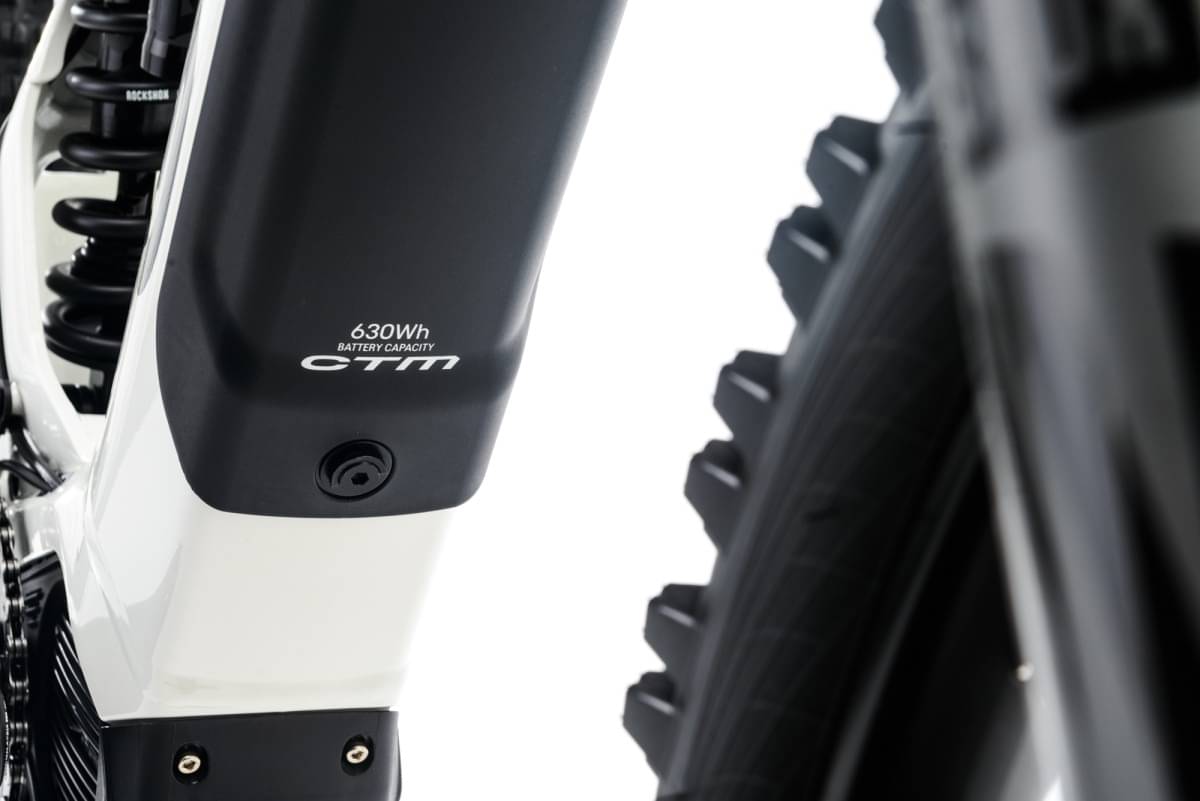

Battery
SHIMANO BT-E8036 / 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.25 mm | 1.22 mm |
| Front Center | 760 mm | 784 mm | 808 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 595 mm | 604 mm | 613 mm |
| Reach | 463 mm | 483 mm | 503 mm |
| Top Tube Length | 622 mm | 644 mm | 667 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1223 mm | 1248 mm | 1271 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 180 cm | 190 cm | 205 cm |
About this model
SWITCH Pro is part of the Ctm E Switch model. CTM released 10 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CTM SWITCH Comp 2023 is the most economical model, with a starting price of 4246$. CTM SWITCH Pro 2023 on the other hand costs 5733$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 5733$. In conclusion, this e-bike price is 19.81% higher than the price of the average Enduro e-bike.
SWITCH Pro components

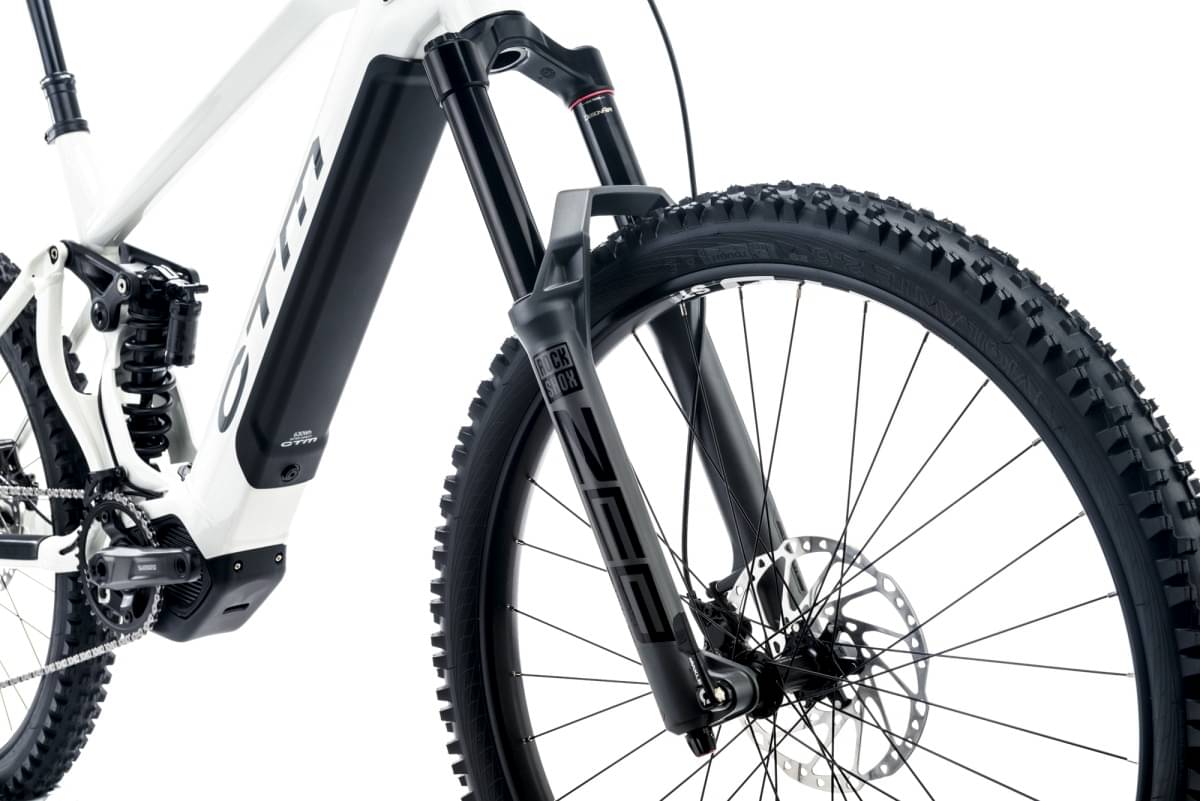

Fork
The SWITCH Pro comes factory-installed with the RockShox ZEB Ultimate fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

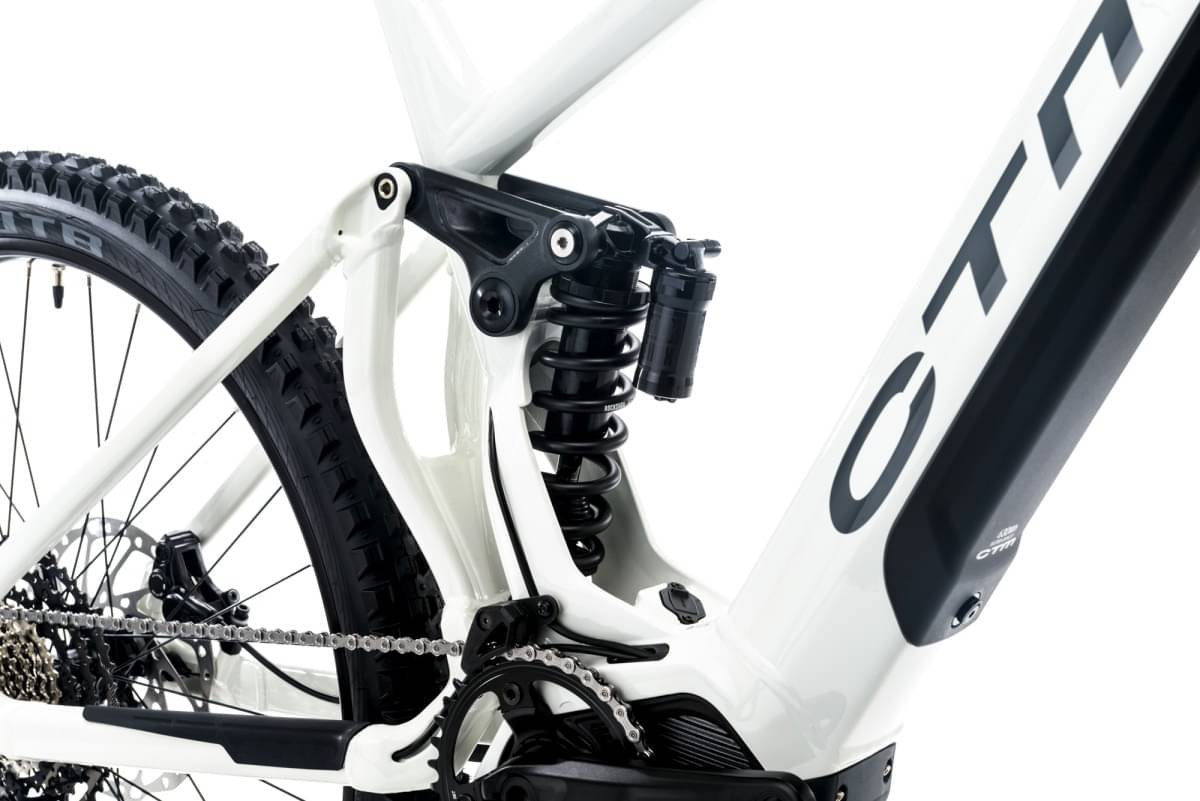

Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the SWITCH Pro model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.

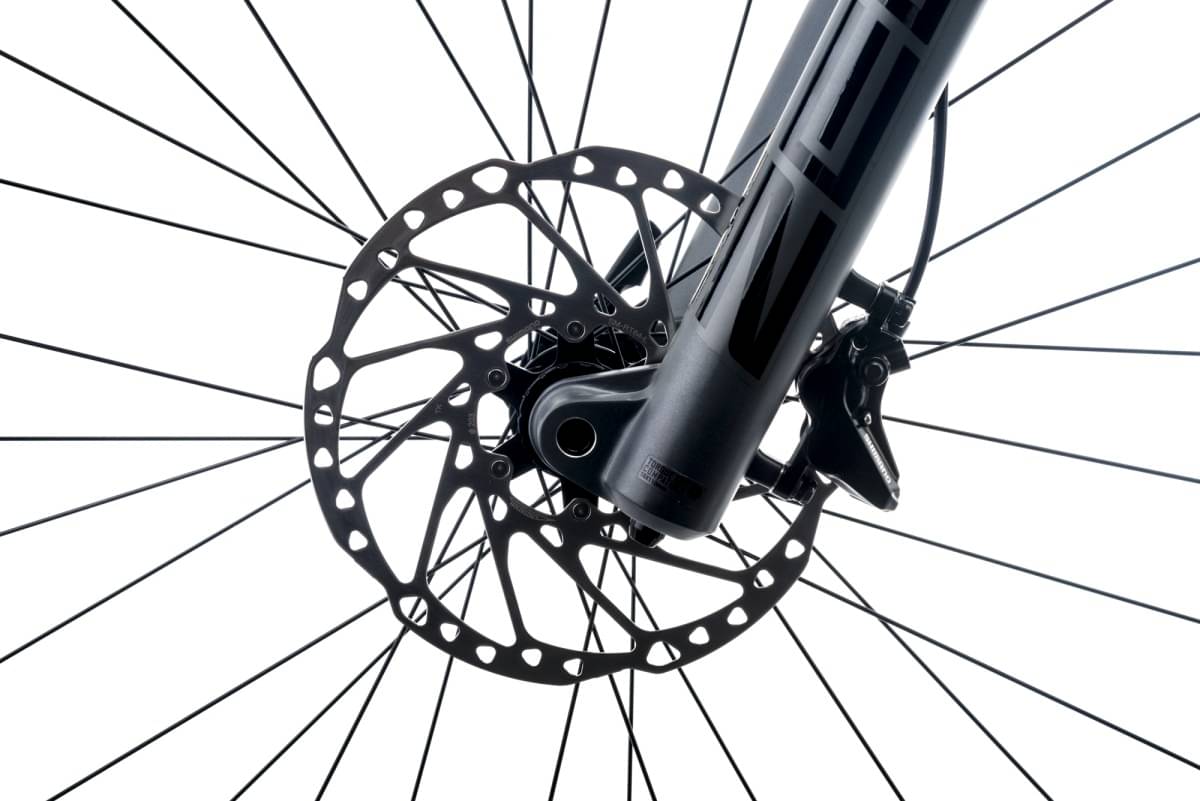

Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 205 cm (5.41 ft – 6.73 ft). In short, you can easily find one that suits you.
Dropper post
CTM SWITCH Pro comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
