Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset Deore, FSA -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8036, integrated, removable -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox 35 Silver TK, Solo Air spring, 42mm offset
Rear Shock
RockShox Deluxe Select+ RT, 205mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore M5100, 11-speed
Front Derailleur
None
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-speed, 11-51 tooth
Crank
FSA CK-751, 165mm length
Chain
KMC X11e, 11-speed
Chain Guide
Upper slider
Pedals
VPE-527 platform
Wheels
Front Hub
Shimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Shimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST i35 TCS 2.0, 32 hole, 35mm internal width
Tires
WTB Trail Boss, G2, 2.6"
Brakes
Brakes
Tektro Orion, 4-piston, 203mm rotors
Brake Levers
Tektro Orion
Cockpit
Stem
CTM ASM04, 35mm bar clamp
Handlebar
CTM HB352, 780mm width, 35mm clamp diameter
Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS Rage-i dropper, Drop: 125mm (MD), 150mm (LG/XL)
Motor & Battery
Motor
Shimano STEPS E7000, 250W, 60 Nm max torque
Battery
Shimano STEPS E8036, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.25 mm | 1.22 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm |
| Front Center | 760 mm | 784 mm | 808 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm |
| Stack | 595 mm | 604 mm | 613 mm |
| Reach | 463 mm | 483 mm | 503 mm |
| Top Tube Length | 622 mm | 644 mm | 667 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1223 mm | 1247 mm | 1271 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

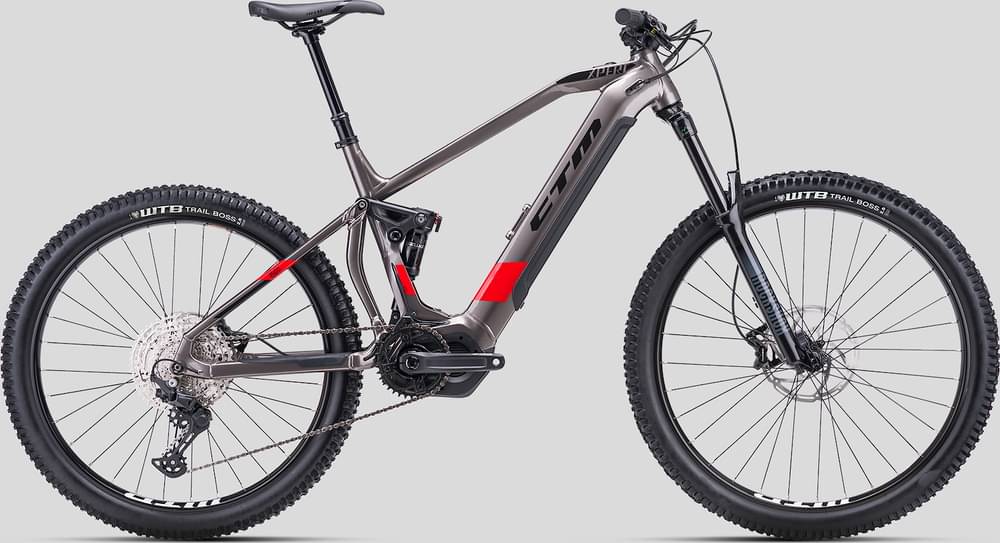

Switch Xpert is a Ctm E Switch model. CTM released 10 e-bikes variations of this model so far. Take a sneak peek at all Ctm E Switch e-bikes models from 2021, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Switch Xpert has a weight of 24.1 kg (53.13 lbs). In short, the average Enduro e-bike weight is 2.9% lower than this one.
Overview of components
Fork
The Switch Xpert comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select+ RT rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Switch Xpert 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CTM Switch Xpert has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
