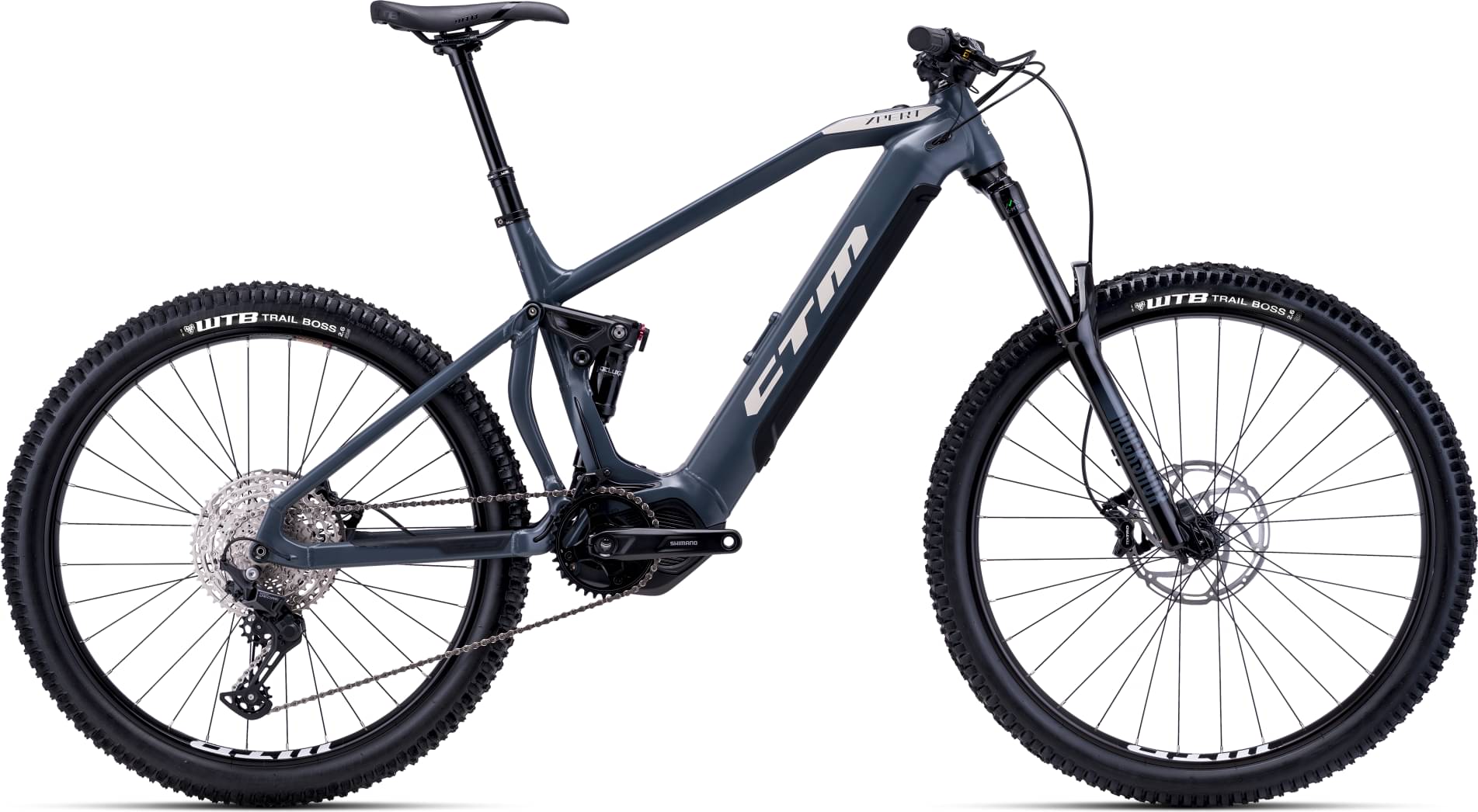

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036 / 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

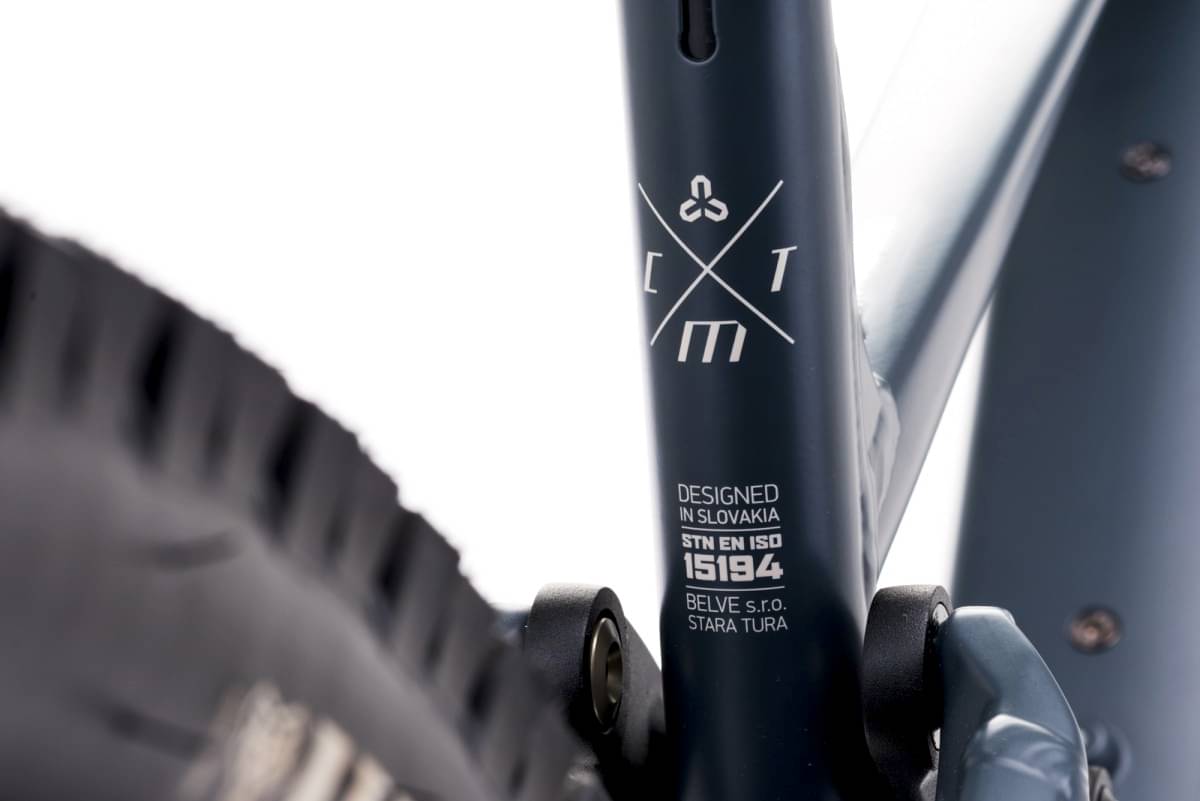

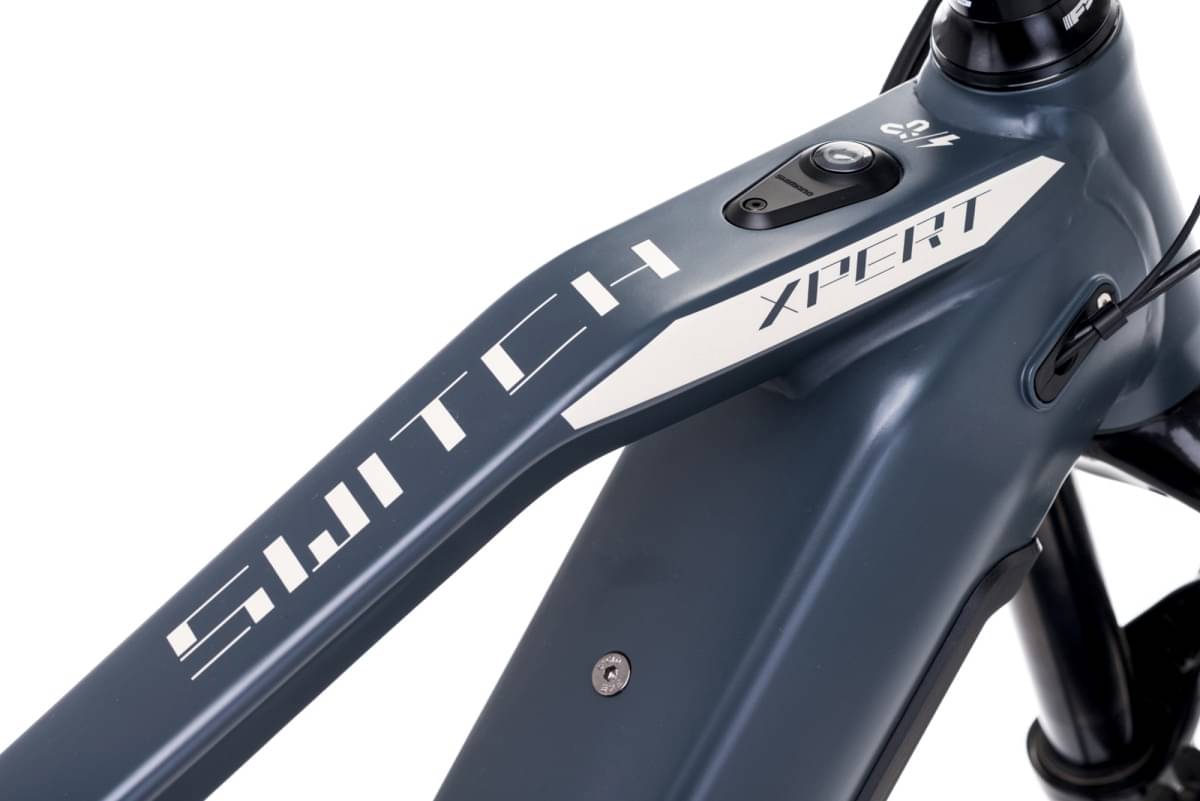

Frame
Frame
ALU 6061, rear travel 150 mm, MD, LG, XL
Suspension Fork
Rock Shox 35 GOLD RL, DebonAir, 160mm, boost™ 15x110axle
Drivetrain

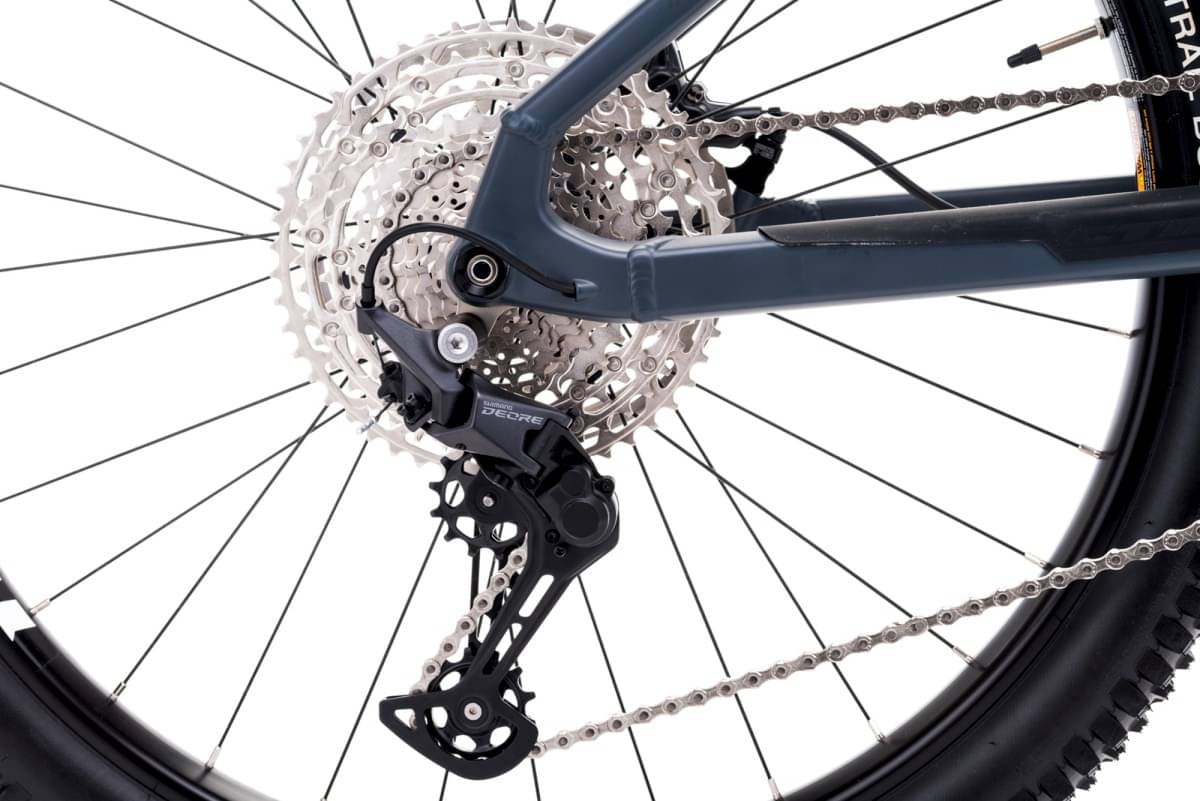

Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.
Crank
Shimano FC-EM600, 36T, 165mm
Chain
KMC X11e 122L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i35 TCS 2.0 / 27.5" / 29" / 32H
Tires
WTB Trail Boss G2 F 29x 2.6", R 27.5x2.6"
Brakes

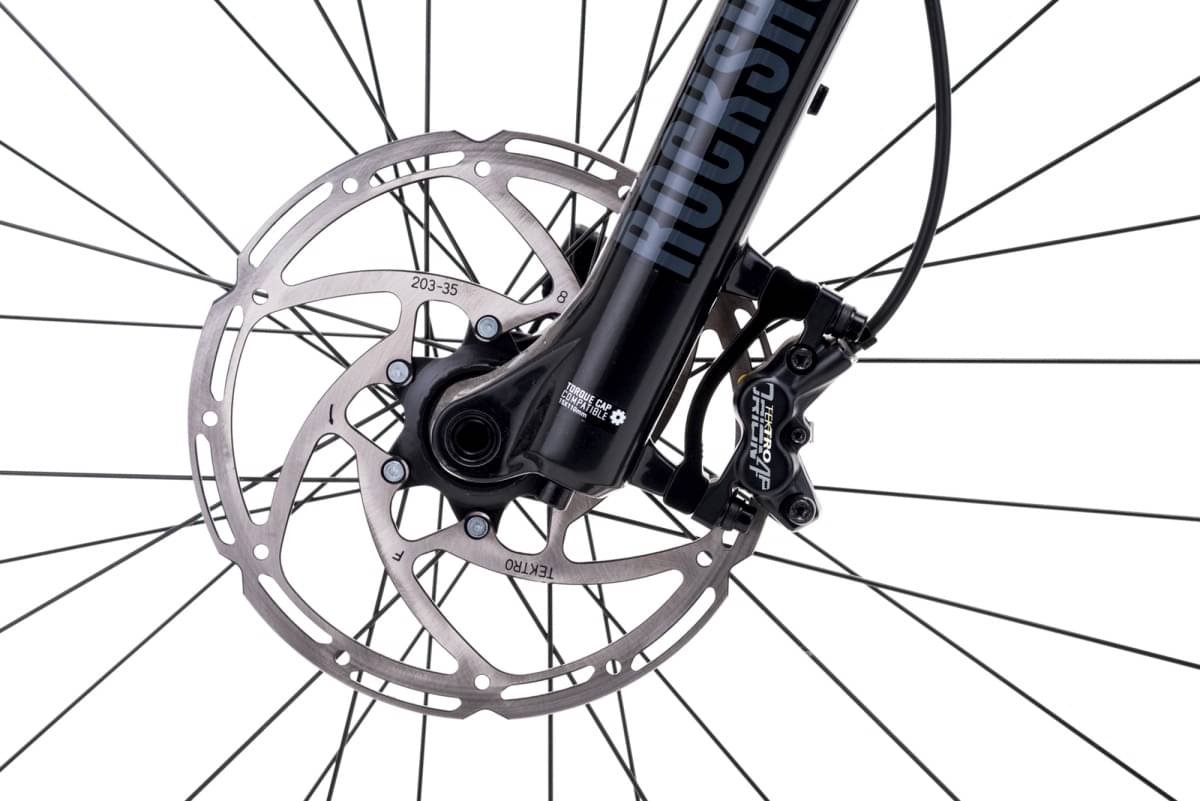

Brakes
TEKTRO ORION / 203 / DISC

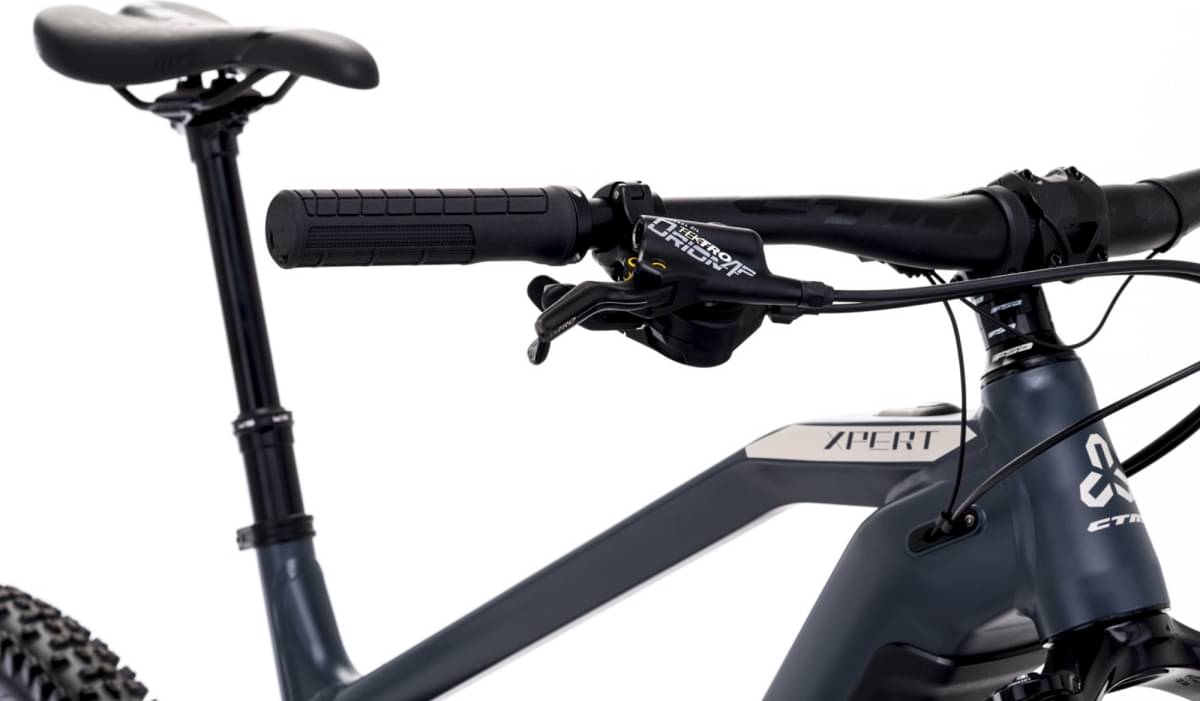

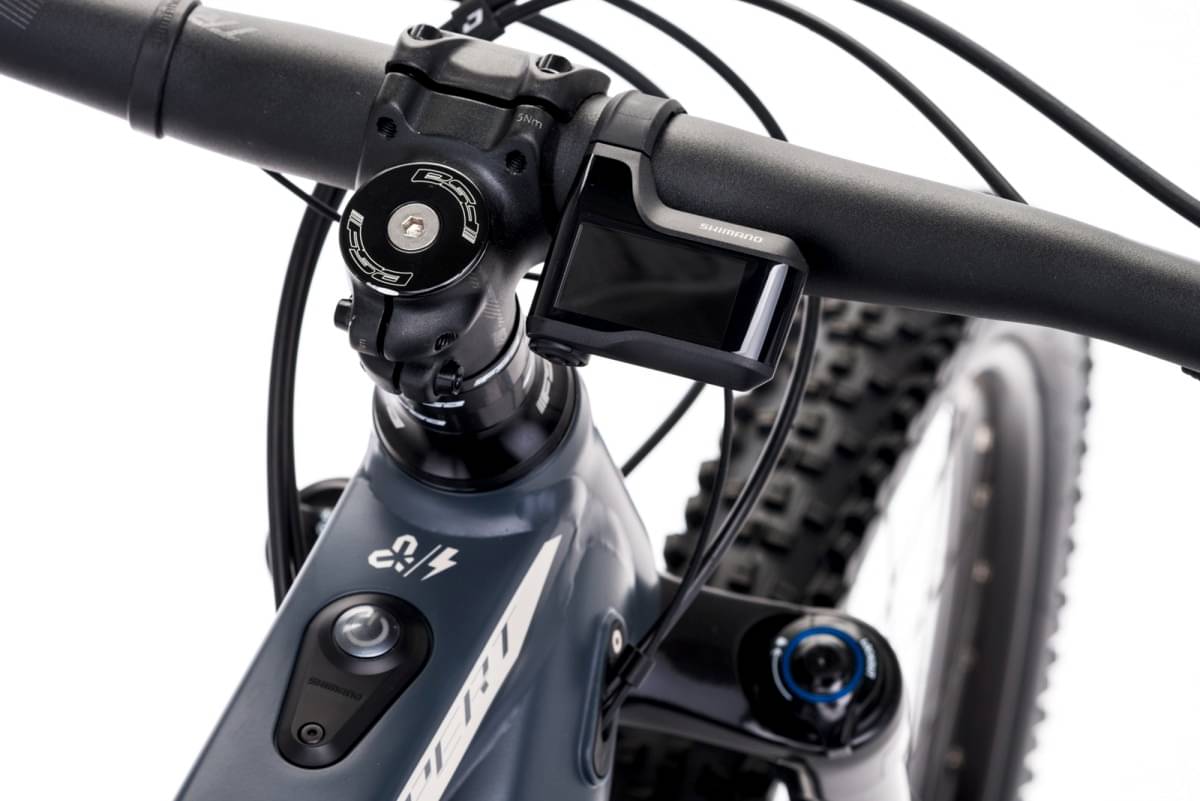

Cockpit
Stem
CTM ASM04 35 mm
Handlebar
CTM HB352, 35dia, 780mm
Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS RAGEi (M-125mm/L-150mm/XL-170mm)
Motor & Battery

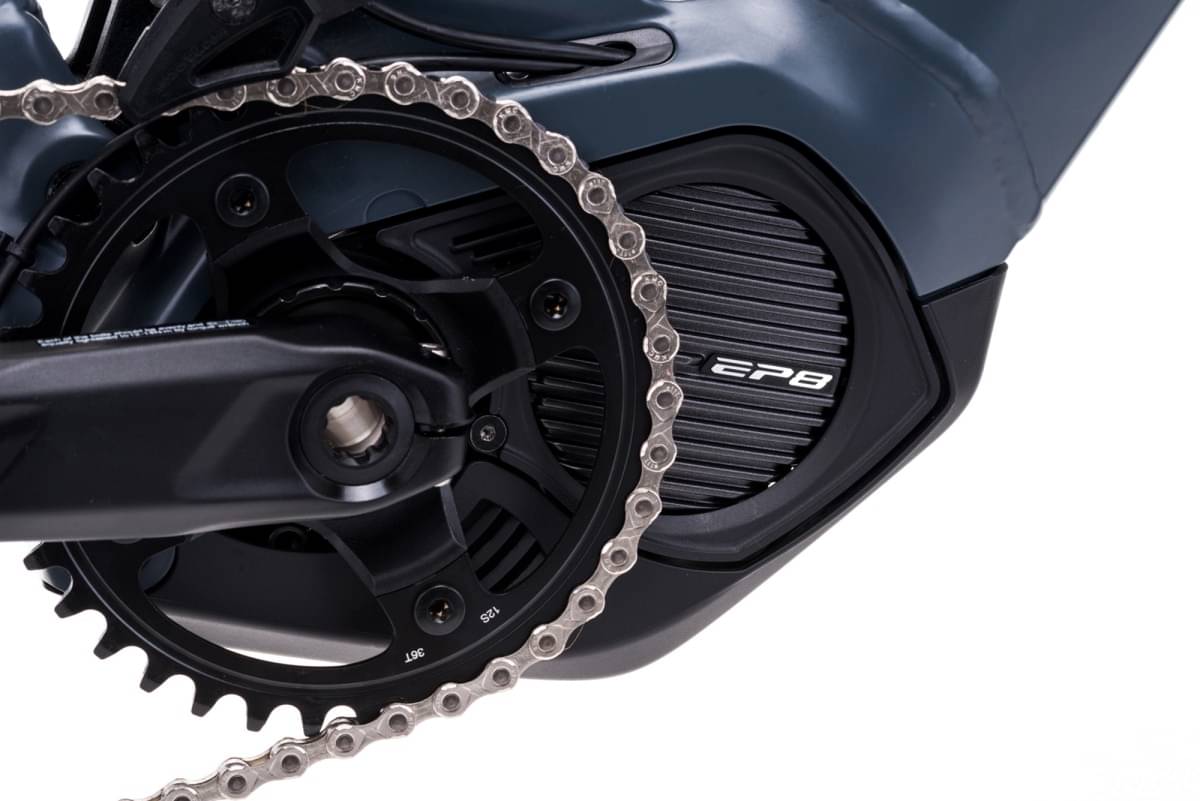

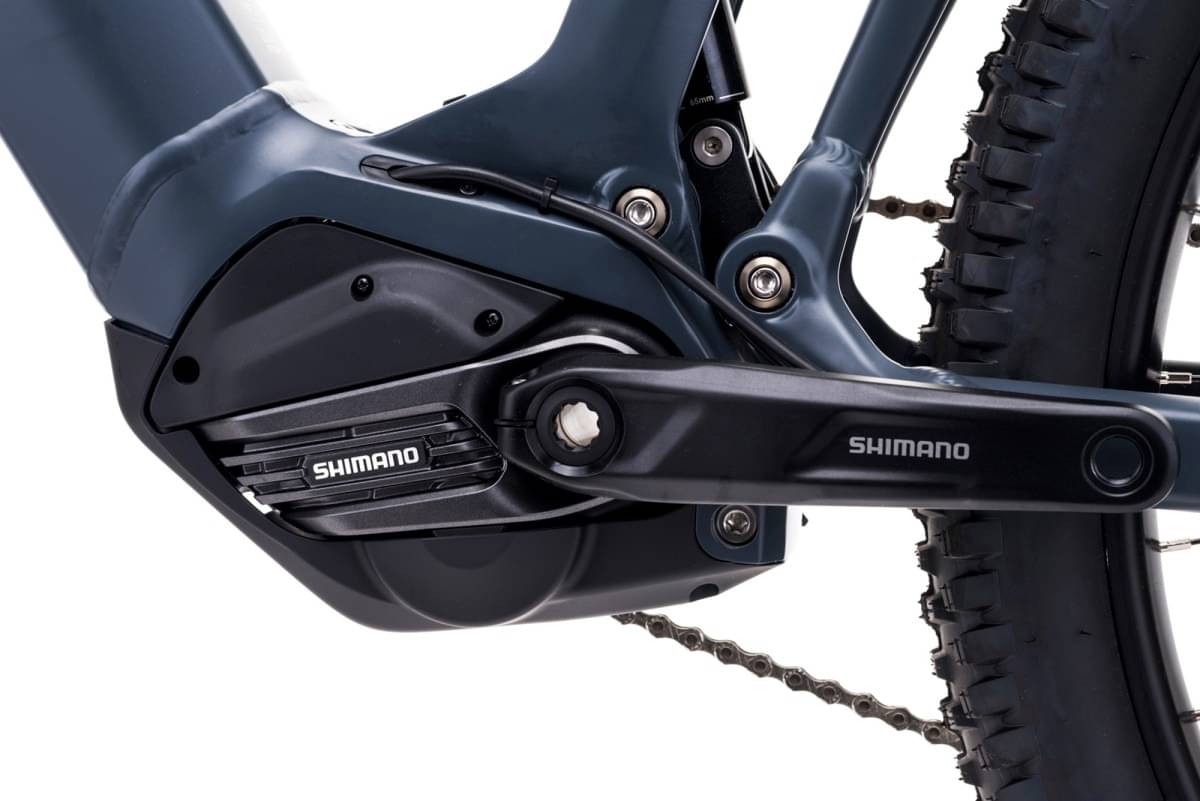

Motor
SHIMANO STEPS EP8 / 250W / 85Nm
Battery
SHIMANO BT-E8036 / 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.25 mm | 1.22 mm |
| Front Center | 760 mm | 784 mm | 808 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 595 mm | 604 mm | 613 mm |
| Reach | 463 mm | 483 mm | 503 mm |
| Top Tube Length | 622 mm | 644 mm | 667 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1223 mm | 1248 mm | 1271 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 180 cm | 190 cm | 205 cm |
About this model
SWITCH XPERT is part of the Ctm E Switch model. CTM launched 10 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the CTM SWITCH COMP 2022 has a starting price of 4034$. CTM SWITCH PRO 2022 on the other hand is the most expensive at 4883$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 4352$. Comparing the average cost of an Enduro e-bike to this one, you will see that SWITCH XPERT price is 9.95% lower.
SWITCH XPERT components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.

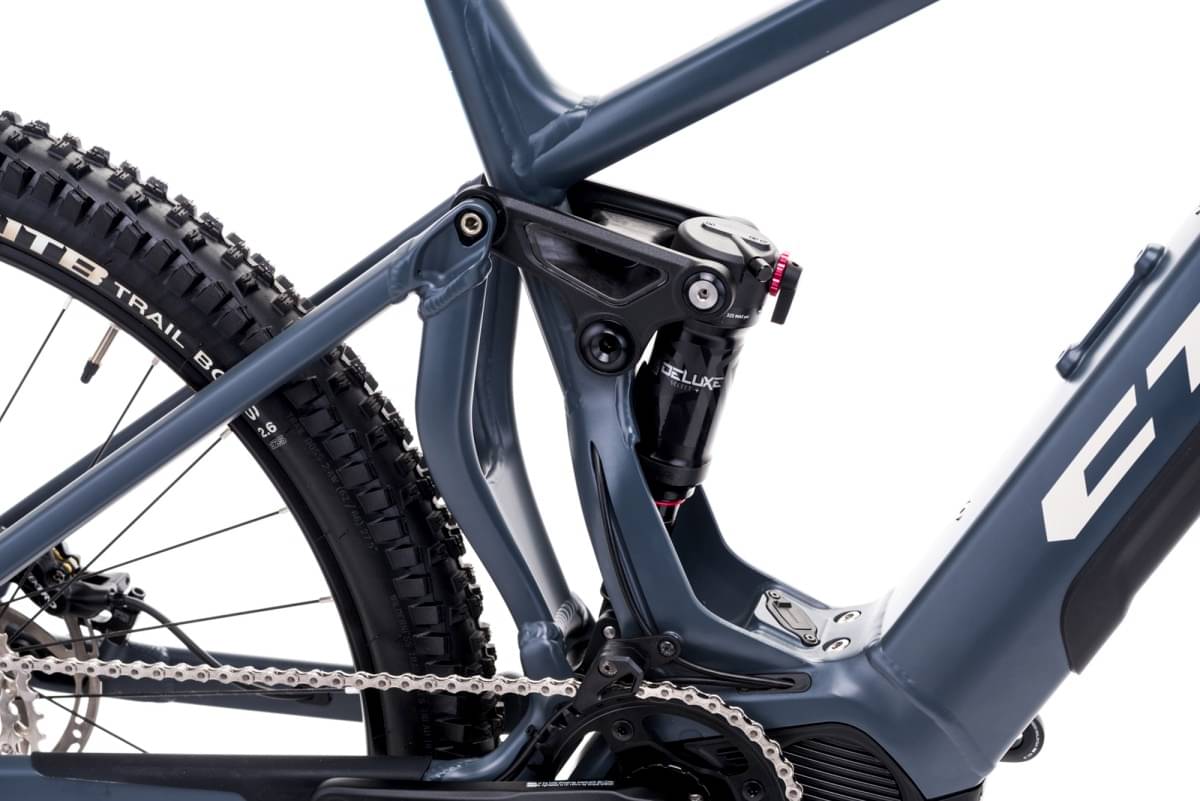

Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, CTM SWITCH XPERT 2022, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM SWITCH XPERT is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 205 cm (5.41 ft – 6.73 ft). In short, you can easily find one that suits you.
Dropper post
The CTM model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
