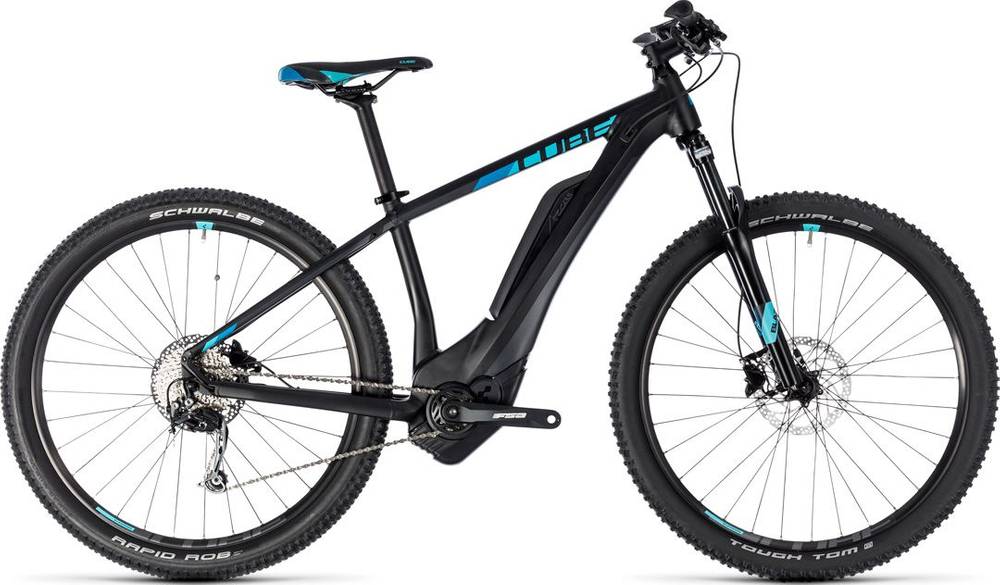

CUBE ACCESS HYBRID ONE 400 27.5 2018
2018 E-bike
Weight | 21.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RST
-
Groupset Deore, Sora -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
RST Blaze, Coil, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M592-SGS, 9-Speed
Shift Levers
Shimano SL-M3000
Cassette
Shimano CS-HG400, 12-36T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" |
|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.04 mm |
| Bottom Bracket Height | 307 mm | 307 mm |
| Front Center | 643 mm | 630 mm |
| Rake | 45 mm | 106 mm |
| Trail | 95 mm | 23 mm |
| Stack | 587 mm | 395 mm |
| Reach | 374 mm | 380 mm |
| Top Tube Length | 549 mm | 555 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 365 mm | 405 mm |
| Head Tube Angle | 68 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm |
| Chainstay Length | 462 mm | 462 mm |
| Wheelbase | 1101 mm | 1088 mm |
| Bottom Bracket Drop | 48 mm | 48 mm |
| Wheels | 27" | 27" |
Model Overview
ACCESS HYBRID ONE 400 27.5 completes the Cube E Access model. CUBE launched 57 e-bikes of this model so far. You can easily view all of the Cube E Access e-bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE ACCESS HYBRID ONE 400 27.5 it’s weighing 21.9 kg (48.28 lbs). At this weight, is a bit lighter than average. In short, the average Crosscountry e-bike weight is 5.98% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ACCESS HYBRID ONE 400 27.5 components
Fork
This e-bike has the RST fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, CUBE ACCESS HYBRID ONE 400 27.5 2018, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ACCESS HYBRID ONE 400 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
