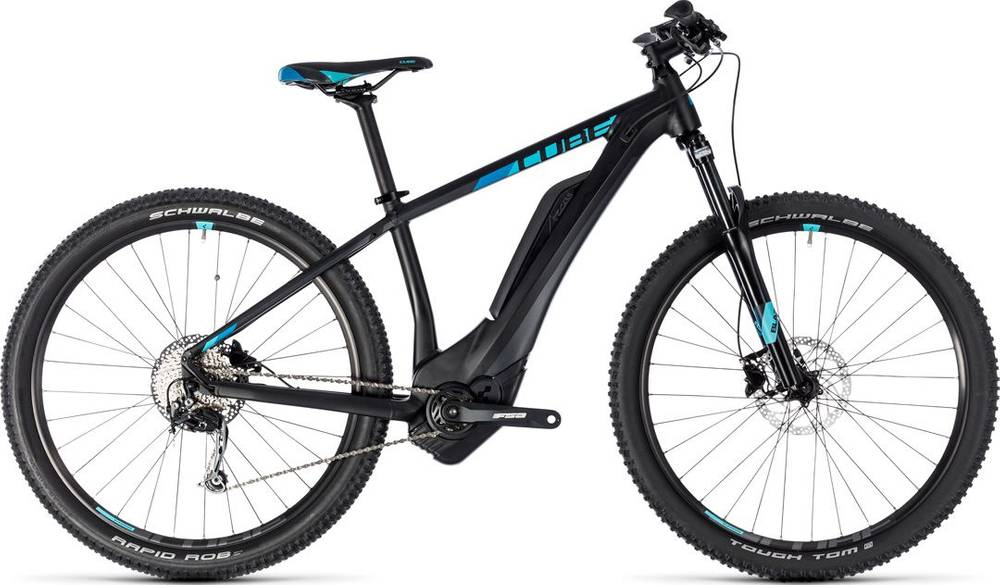

CUBE ACCESS HYBRID ONE 400 29 2018
2018 E-bike
Weight | 21.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST
-
Groupset Deore, Sora -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
RST Blaze, Coil, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M592-SGS, 9-Speed
Shift Levers
Shimano SL-M3000
Cassette
Shimano CS-HG400, 12-36T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.6 mm |
| Bottom Bracket Height | 309 mm | 309 mm |
| Front Center | 652 mm | 667 mm |
| Rake | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm |
| Stack | 640 mm | 647 mm |
| Reach | 386 mm | 404 mm |
| Top Tube Length | 580 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 69.5 ° | 70 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1124 mm | 1139 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 29" | 29" |
About this model
ACCESS HYBRID ONE 400 29 completes the Cube E Access model. There are 57 e-bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit lighter than average, ACCESS HYBRID ONE 400 29 has a weight of 21.9 kg (48.28 lbs). In conclusion, the average Crosscountry e-bike weighs 5.98% more than ACCESS HYBRID ONE 400 29.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ACCESS HYBRID ONE 400 29 components
Fork
The ACCESS HYBRID ONE 400 29 comes factory-installed with the RST fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, CUBE ACCESS HYBRID ONE 400 29 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE ACCESS HYBRID ONE 400 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
