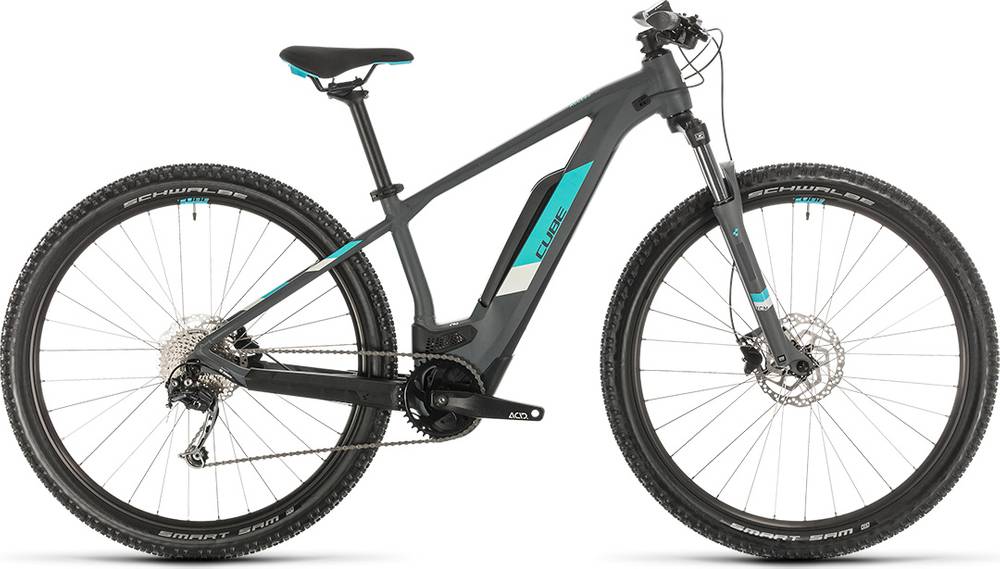

CUBE ACCESS HYBRID ONE 500 2020
2020 E-bike
Estimate price |
2,459$
Weight | 21.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
SR Suntour XCM Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore, 11-36T, 1x9
Shift Levers
Shimano SL-M2010-9R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 38T
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, K-Guard, 2.35
Brakes
Brakes
Shimano BR-MT200
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit All Terrain
Headset
FSA Orbit Z 1.5B ZS-R, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence WS
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerPack 500
Remote
Purion
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.52 mm | 1.55 mm | 1.51 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 309 mm | 309 mm |
| Front Center | 648 mm | 666 mm | 677 mm | 697 mm |
| Rake | 44 mm | 44 mm | 52 mm | 50 mm |
| Trail | 104 mm | 104 mm | 88 mm | 90 mm |
| Stack | 597 mm | 606 mm | 634 mm | 644 mm |
| Reach | 385 mm | 399 mm | 408 mm | 426 mm |
| Top Tube Length | 551 mm | 566 mm | 586 mm | 606 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 355 mm | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 466 mm | 466 mm |
| Wheelbase | 1091 mm | 1109 mm | 1135 mm | 1155 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 65 mm | 65 mm |
| Standover Height | 723 mm | 734 mm | 771 mm | 804 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
ACCESS HYBRID ONE 500 is a Cube E Access model. There are 57 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
CUBE ACCESS HYBRID ONE 500 2020 is the most economical model, with a starting price of 2276$. CUBE ACCESS HYBRID SLT 625 29 2020 on the other hand costs 3932$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, CUBE ACCESS HYBRID ONE 500 price was 2276$. Comparing this to the average Crosscountry e-bike price, we see that the price is 7.78% smaller.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 21.9 kg (48.28 lbs), the ACCESS HYBRID ONE 500 model is a bit lighter than average. In other words, this model is 5.98% lighter than the average Crosscountry e-bike.
ACCESS HYBRID ONE 500 components
Fork
CUBE ACCESS HYBRID ONE 500 2020 e-bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The ACCESS HYBRID ONE 500 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The ACCESS HYBRID ONE 500 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
