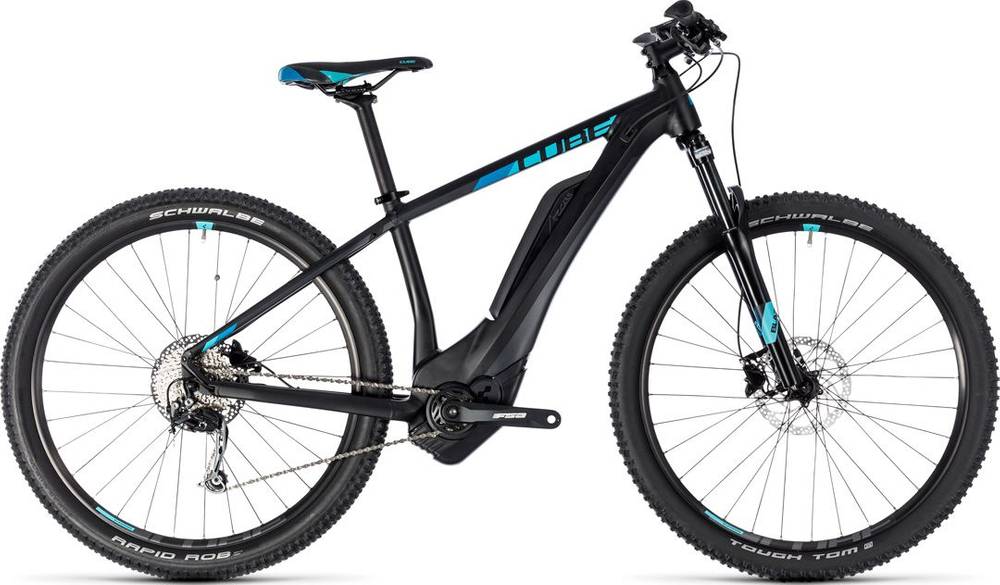

CUBE ACCESS HYBRID ONE 500 29 2018
2018 E-bike
Weight | 21.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST
-
Groupset Deore, Sora -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
RST Blaze, Coil, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M592-SGS, 9-Speed
Shift Levers
Shimano SL-M3000
Cassette
Shimano CS-HG400, 12-36T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.6 mm |
| Bottom Bracket Height | 309 mm | 309 mm |
| Front Center | 652 mm | 667 mm |
| Rake | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm |
| Stack | 640 mm | 647 mm |
| Reach | 386 mm | 404 mm |
| Top Tube Length | 580 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 69.5 ° | 70 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1124 mm | 1139 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 29" | 29" |
Model Overview
ACCESS HYBRID ONE 500 29 belongs to the Cube E Access model. 57 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ACCESS HYBRID ONE 500 29 weighs 21.9 kg (48.28 lbs) and is a bit lighter than the average. To sum up, it’s 5.98% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
CUBE ACCESS HYBRID ONE 500 29 2018 e-bike is equipped with the RST fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on ACCESS HYBRID ONE 500 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACCESS HYBRID ONE 500 29 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
