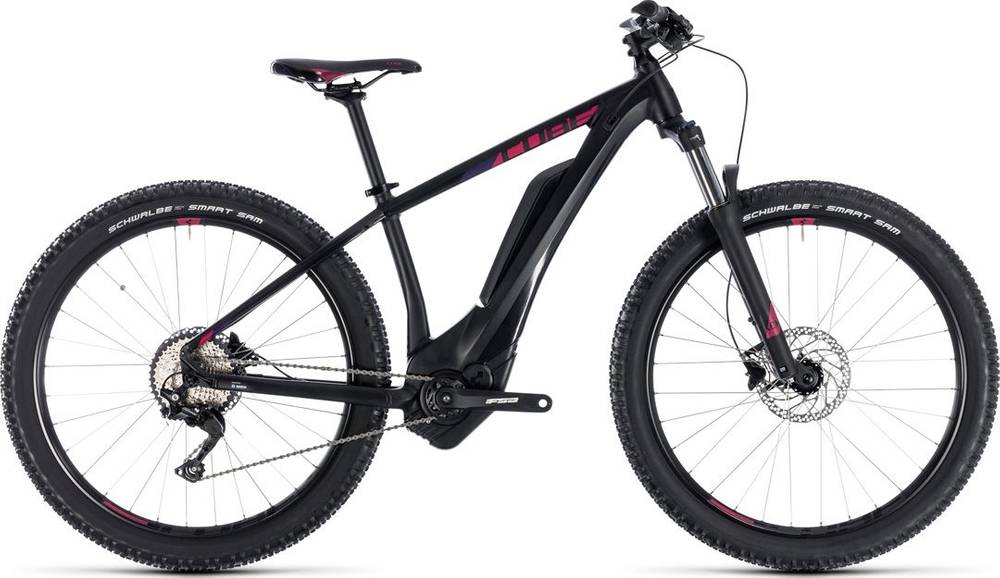

CUBE ACCESS HYBRID Pro 500 27.5 2018
2018 E-bike
Weight | 23.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X10
Wheels
Front Hub
CUBE, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" |
|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.04 mm |
| Bottom Bracket Height | 307 mm | 307 mm |
| Front Center | 643 mm | 630 mm |
| Rake | 45 mm | 106 mm |
| Trail | 95 mm | 23 mm |
| Stack | 587 mm | 395 mm |
| Reach | 374 mm | 380 mm |
| Top Tube Length | 549 mm | 555 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 365 mm | 405 mm |
| Head Tube Angle | 68 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm |
| Chainstay Length | 462 mm | 462 mm |
| Wheelbase | 1101 mm | 1088 mm |
| Bottom Bracket Drop | 48 mm | 48 mm |
| Wheels | 27" | 27" |
About this model
ACCESS HYBRID Pro 500 27.5 belongs to the Cube E Access model. CUBE launched 57 e-bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
ACCESS HYBRID Pro 500 27.5 weighs 23.3 kg (51.37 lbs) and is slightly heavier than the average. To sum up, it’s 0.39% heavier than the average weight of Crosscountry e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The ACCESS HYBRID Pro 500 27.5 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACCESS HYBRID Pro 500 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
