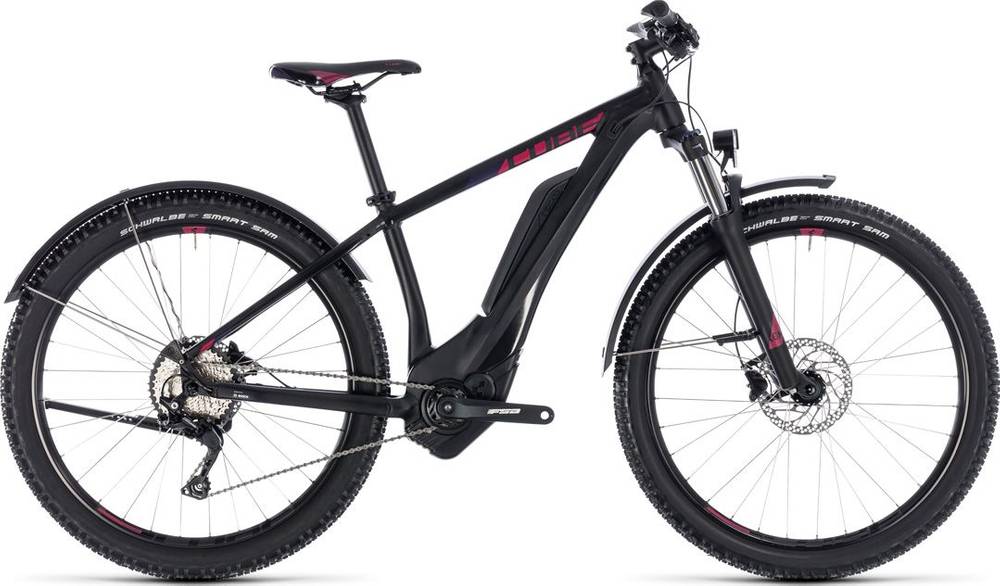

CUBE ACCESS HYBRID Pro Allroad 500 27.5 2018
2018 E-bike
Weight | 24.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X10
Wheels
Front Hub
CUBE, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" |
|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.04 mm |
| Bottom Bracket Height | 307 mm | 307 mm |
| Front Center | 643 mm | 630 mm |
| Rake | 45 mm | 106 mm |
| Trail | 95 mm | 23 mm |
| Stack | 587 mm | 395 mm |
| Reach | 374 mm | 380 mm |
| Top Tube Length | 549 mm | 555 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 365 mm | 405 mm |
| Head Tube Angle | 68 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm |
| Chainstay Length | 462 mm | 462 mm |
| Wheelbase | 1101 mm | 1088 mm |
| Bottom Bracket Drop | 48 mm | 48 mm |
| Wheels | 27" | 27" |
Model Overview
ACCESS HYBRID Pro Allroad 500 27.5 completes the Cube E Access model. There are 57 e-bikes that carry this model name. Take a sneak peek at all Cube E Access e-bikes models from 2018, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE ACCESS HYBRID Pro Allroad 500 27.5 it’s weighing 24.4 kg (53.79 lbs). At this weight, is a bit heavier than average. To sum up, it’s 5.13% heavier than the average weight of Crosscountry e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ACCESS HYBRID Pro Allroad 500 27.5 components
Fork
The ACCESS HYBRID Pro Allroad 500 27.5 comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The ACCESS HYBRID Pro Allroad 500 27.5 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The ACCESS HYBRID Pro Allroad 500 27.5 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
