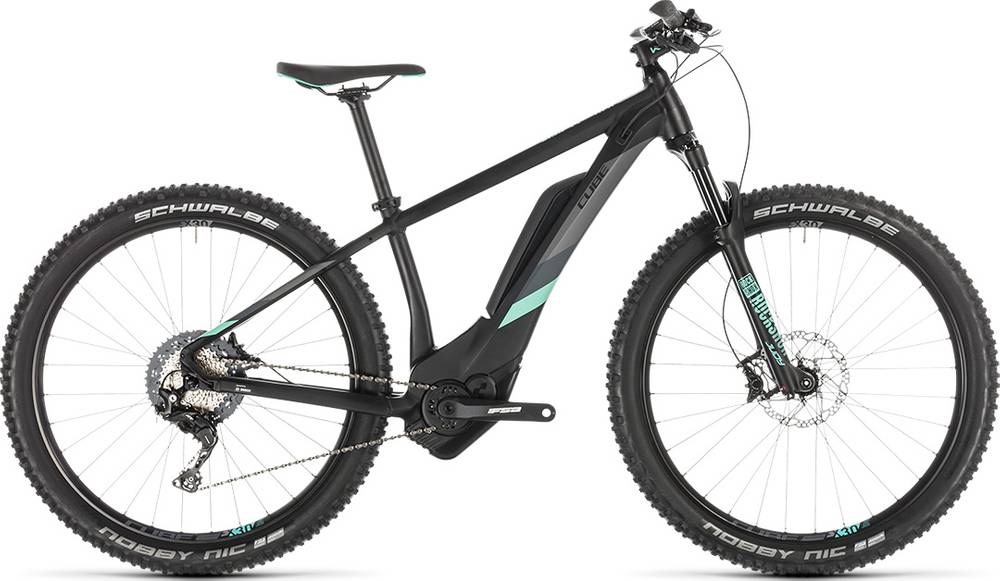

CUBE ACCESS HYBRID Race 500 2019
2019 E-bike
Estimate price |
3,210$
Weight | 21.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Semi-Integrated Battery
Suspension Fork
RockShox Judy Silver TK Air, Tapered, 15x110mm, 100mm, eMTB Approved, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 15T, 175mm
Chain
KMC X11
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.10, 720mm
Grips
Natural Fit GRIP All Terrain
Headset
FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active WS
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.61 mm | 1.67 mm | 1.61 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 309 mm | 309 mm |
| Front Center | 643 mm | 627 mm | 652 mm | 667 mm |
| Rake | 45 mm | 29 mm | 51 mm | 51 mm |
| Trail | 95 mm | 112 mm | 86 mm | 82 mm |
| Stack | 587 mm | 596 mm | 634 mm | 641 mm |
| Reach | 374 mm | 371 mm | 380 mm | 398 mm |
| Top Tube Length | 549 mm | 554 mm | 574 mm | 594 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 365 mm | 395 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 69.5 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 462 mm | 462 mm | 474 mm | 474 mm |
| Wheelbase | 1101 mm | 1085 mm | 1118 mm | 1133 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" |
Model Overview
ACCESS HYBRID Race 500 completes the Cube E Access model. There are 57 e-bikes that carry this model name. You can easily view all of the Cube E Access e-bikes models from 2019, here.
Model range prices
The most economical model, the CUBE ACCESS HYBRID ONE 400 2019 has a starting price of 2016$. CUBE ACCESS HYBRID SLT 500 KIOX 2019 on the other hand is the most expensive at 3821$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2019 and its price was 2972$. In conclusion, this e-bike price is 21.16% more expensive than the price of the average Crosscountry e-bike.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 21.7 kg (47.84 lbs), the ACCESS HYBRID Race 500 model is a bit lighter than average. To sum up, it’s 6.96% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The ACCESS HYBRID Race 500 comes factory-installed with the RockShox Judy Silver TK fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the ACCESS HYBRID Race 500 e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ACCESS HYBRID Race 500 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
