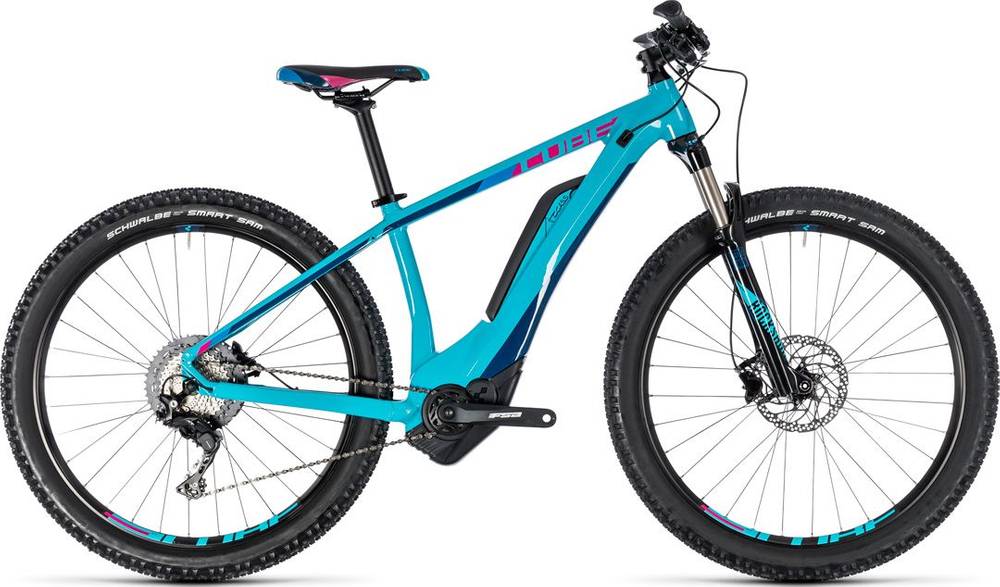

CUBE ACCESS HYBRID Race 500 29 2018
2018 E-bike
Weight | 22.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
RockShox Judy Silver TK Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X11
Wheels
Front Hub
Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock
Rear Hub
Shimano Deore FH-M6000, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.6 mm |
| Bottom Bracket Height | 309 mm | 309 mm |
| Front Center | 652 mm | 667 mm |
| Rake | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm |
| Stack | 640 mm | 647 mm |
| Reach | 386 mm | 404 mm |
| Top Tube Length | 580 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 69.5 ° | 70 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1124 mm | 1139 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 29" | 29" |
Model Overview
ACCESS HYBRID Race 500 29 completes the Cube E Access model. 57 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
ACCESS HYBRID Race 500 29 weighs 22.1 kg (48.72 lbs) and is a bit lighter than the average. To sum up, it’s 5.02% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ACCESS HYBRID Race 500 29 components
Fork
CUBE ACCESS HYBRID Race 500 29 2018 e-bike is equipped with the RockShox Judy Silver TK fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The ACCESS HYBRID Race 500 29 2018 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ACCESS HYBRID Race 500 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
