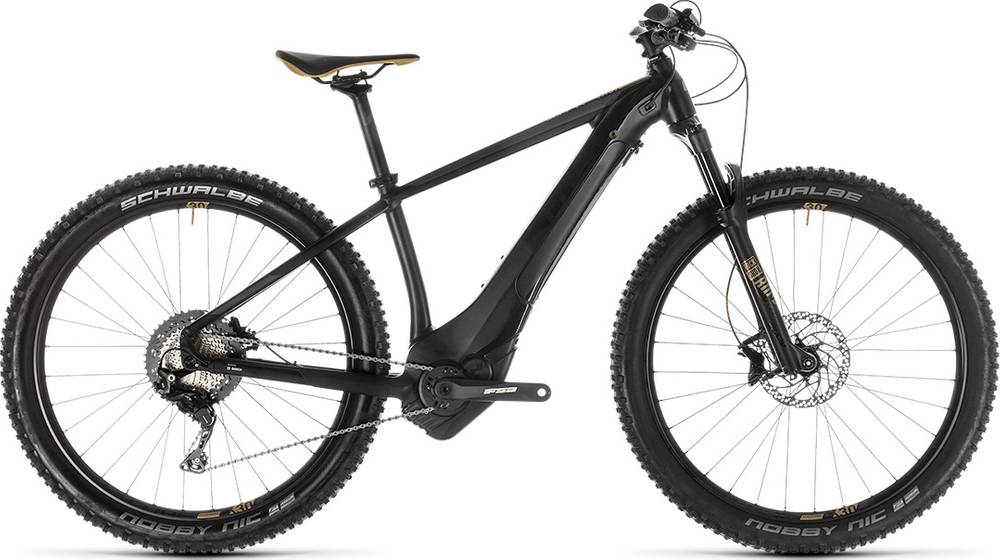

CUBE ACCESS HYBRID SL 500 2019
2019 E-bike
Estimate price |
3,440$
Weight | 22.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery
Suspension Fork
RockShox Judy Gold Air, Tapered, 15x110mm, 100mm, eMTB Approved, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 15T, 175mm
Chain
KMC X11e, EcoProTeQ
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Brakes
Brakes
Shimano BR-MT520/BR-MT500, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.10, 720mm
Grips
Natural Fit GRIP All Terrain
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active Race WS
Seatpost
Newmen Evolution, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.54 mm | 1.59 mm | 1.55 mm |
| Bottom Bracket Height | 307 mm | 304 mm | 312 mm | 309 mm |
| Front Center | 630 mm | 642 mm | 644 mm | 659 mm |
| Rake | 36 mm | 37 mm | 39 mm | 39 mm |
| Trail | 98 mm | 90 mm | 98 mm | 95 mm |
| Stack | 597 mm | 619 mm | 628 mm | 638 mm |
| Reach | 386 mm | 401 mm | 395 mm | 412 mm |
| Top Tube Length | 561 mm | 583 mm | 585 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 70 ° | 69.5 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 105 mm | 110 mm |
| Chainstay Length | 468 mm | 468 mm | 480 mm | 480 mm |
| Wheelbase | 1094 mm | 1105 mm | 1117 mm | 1131 mm |
| Bottom Bracket Drop | 48 mm | 51 mm | 62 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" |
Model Overview
ACCESS HYBRID SL 500 completes the Cube E Access model. CUBE released 57 e-bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
CUBE ACCESS HYBRID ONE 400 2019 is the cheapest e-bike model and costs 2016$. CUBE ACCESS HYBRID SLT 500 KIOX 2019 is the most expensive one and costs 3821$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When CUBE released this model in 2019, its price was 3184$. Comparing this to the average Crosscountry e-bike price, we see that the price is 29.8% higher.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 22.2 kg (48.94 lbs), CUBE e-bike is slightly lighter than average. In other words, this model is 4.55% lighter than the average Crosscountry e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Judy model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on ACCESS HYBRID SL 500 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE ACCESS HYBRID SL 500 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
