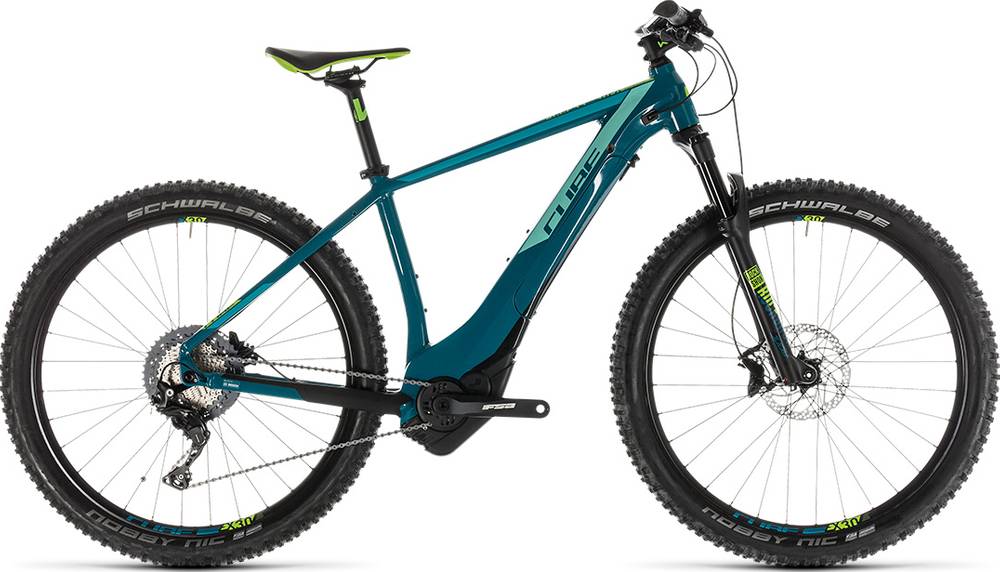

CUBE ACCESS HYBRID SL 500 KIOX 2019
2019 E-bike
Estimate price |
3,554$
Weight | 22.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery
Suspension Fork
RockShox Judy Gold Air, Tapered, 15x110mm, 100mm, eMTB Approved, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 15T, 175mm
Chain
KMC X11e, EcoProTeQ
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Brakes
Brakes
Shimano BR-MT520/BR-MT500, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.10, 720mm
Grips
Natural Fit GRIP All Terrain
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active Race WS
Seatpost
Newmen Evolution, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Kiox
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.54 mm | 1.59 mm | 1.55 mm |
| Bottom Bracket Height | 307 mm | 304 mm | 312 mm | 309 mm |
| Front Center | 630 mm | 642 mm | 644 mm | 659 mm |
| Rake | 36 mm | 37 mm | 39 mm | 39 mm |
| Trail | 98 mm | 90 mm | 98 mm | 95 mm |
| Stack | 597 mm | 619 mm | 628 mm | 638 mm |
| Reach | 386 mm | 401 mm | 395 mm | 412 mm |
| Top Tube Length | 561 mm | 583 mm | 585 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 70 ° | 69.5 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 105 mm | 110 mm |
| Chainstay Length | 468 mm | 468 mm | 480 mm | 480 mm |
| Wheelbase | 1094 mm | 1105 mm | 1117 mm | 1131 mm |
| Bottom Bracket Drop | 48 mm | 51 mm | 62 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" |
Model Overview
ACCESS HYBRID SL 500 KIOX is a Cube E Access model. CUBE released 57 e-bikes variations of this model so far. Take a sneak peek at all Cube E Access e-bikes models from 2019, by clicking here.
Model range prices
CUBE ACCESS HYBRID ONE 400 2019 is the most economical model, with a starting price of 2016$. CUBE ACCESS HYBRID SLT 500 KIOX 2019 on the other hand costs 3821$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE ACCESS HYBRID SL 500 KIOX price was 3290$. In conclusion, this e-bike price is 34.12% more expensive than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
ACCESS HYBRID SL 500 KIOX weighs 22.4 kg (49.38 lbs) and is slightly lighter than the average. In conclusion, the average Crosscountry e-bike weighs 3.62% more than ACCESS HYBRID SL 500 KIOX.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ACCESS HYBRID SL 500 KIOX components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the ACCESS HYBRID SL 500 KIOX model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACCESS HYBRID SL 500 KIOX comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
