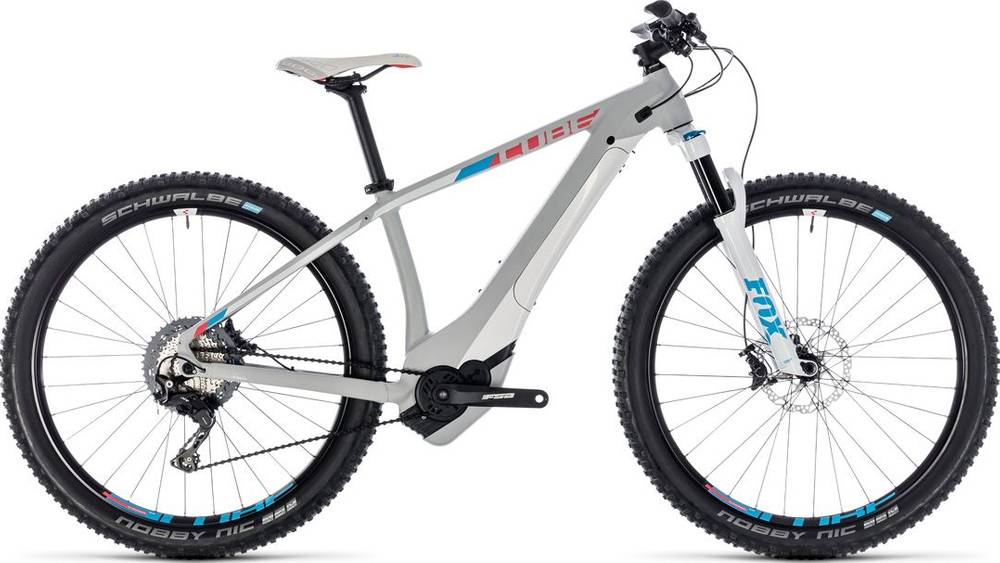

CUBE ACCESS HYBRID SLT 500 29 2018
2018 E-bike
Weight | 21.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 34
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Boost148, Internal Cable Routing, FIB
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 100mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X11e Turbo
Wheels
Front Hub
Shimano XT HB-M8010-B, 15QR, Boost, Centerlock
Rear Hub
Shimano XT FH-M8010-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Apex, Tubeless Easy
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
SDG Allure Steel
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.6 mm |
| Bottom Bracket Height | 309 mm | 309 mm |
| Front Center | 652 mm | 667 mm |
| Rake | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm |
| Stack | 640 mm | 647 mm |
| Reach | 386 mm | 404 mm |
| Top Tube Length | 580 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 69.5 ° | 70 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1124 mm | 1139 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 29" | 29" |
About this model
ACCESS HYBRID SLT 500 29 is part of the Cube E Access model. There are 57 e-bikes that carry this model name. Take a sneak peek at all Cube E Access e-bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 21.4 kg (47.18 lbs), CUBE e-bike is a bit lighter than average. In conclusion, the average Crosscountry e-bike weighs 8.46% more than ACCESS HYBRID SLT 500 29.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
ACCESS HYBRID SLT 500 29 components
Fork
The ACCESS HYBRID SLT 500 29 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The ACCESS HYBRID SLT 500 29 2018 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
