Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
SR Suntour XCT, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M360-SGSL, 8-Speed
Front Derailleur
Shimano FD-TX800, Downswing, 31.8mm
Shift Levers
Shimano SL-M310, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T
Crank
Shimano FC-M131, 42x32x22T, 170mm
Chain
KMC Z7
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE Hub
Rear Hub
CUBE Hub
Rims
CUBE SX, Disc
Tires
Schwalbe Smart Sam, Active, 2.1"
Brakes
Brakes
Promax V- Brake
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 660mm
Grips
CUBE Performance Grips
Headset
CUBE No.10 Semi-Integrated
Seat
Saddle
CUBE WLS Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.61 mm | 1.65 mm | 1.61 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 314 mm | 314 mm |
| Front Center | 604 mm | 627 mm | 642 mm | 657 mm |
| Rake | 45 mm | 45 mm | 50 mm | 51 mm |
| Trail | 88 mm | 88 mm | 87 mm | 82 mm |
| Stack | 603 mm | 603 mm | 628 mm | 640 mm |
| Reach | 351 mm | 374 mm | 381 mm | 397 mm |
| Top Tube Length | 528 mm | 551 mm | 571 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 456 mm |
| Wheelbase | 1032 mm | 1055 mm | 1091 mm | 1106 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 29" | 29" |
Model Overview

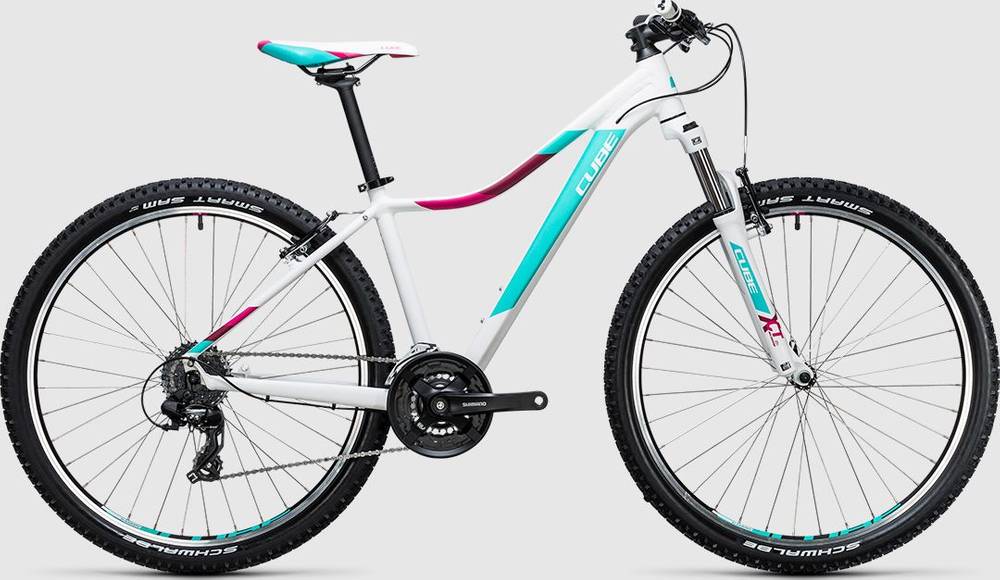

ACCESS WLS is a Cube Access model. CUBE released 94 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.5 kg (29.76 lbs), CUBE bike is a bit heavier than average. In other words, this model is 8.87% heavier than the average Crosscountry bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ACCESS WLS components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The ACCESS WLS 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The ACCESS WLS has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
