Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
SR Suntour XCT Disc, 100mm
Drivetrain
Rear Derailleur
Shimano RD-TX800, 8-Speed
Front Derailleur
Shimano FD-TX800, Downswing, 31.8mm
Shift Levers
Shimano SL-M310, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T
Crank
Shimano FC-TX801 42x34x24T, 170mm
Chain
KMC Z7
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE Disc Hub, 6-Bolt
Rear Hub
CUBE Disc Hub, 6-Bolt
Rims
CUBE SX, Disc
Tires
Schwalbe Smart Sam Active, 2.1"
Brakes
Brakes
Tektro HD-M285, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Riser Trail Bar, 660mm
Grips
CUBE Performance Grips
Headset
CUBE No.10 Semi-Integrated
Seat
Saddle
CUBE WLS Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.61 mm | 1.65 mm | 1.61 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 314 mm | 314 mm |
| Front Center | 604 mm | 627 mm | 642 mm | 657 mm |
| Rake | 45 mm | 45 mm | 50 mm | 51 mm |
| Trail | 88 mm | 88 mm | 87 mm | 82 mm |
| Stack | 603 mm | 603 mm | 628 mm | 640 mm |
| Reach | 351 mm | 374 mm | 381 mm | 397 mm |
| Top Tube Length | 528 mm | 551 mm | 571 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 456 mm |
| Wheelbase | 1032 mm | 1055 mm | 1091 mm | 1106 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 29" | 29" |
About this model

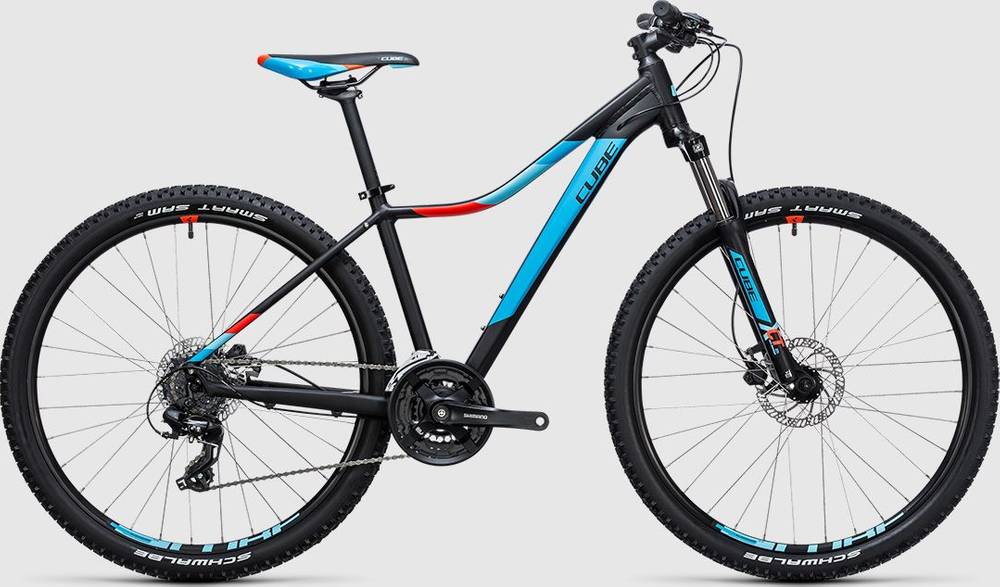

ACCESS WLS Disc is a Cube Access model. 94 bikes variations carry this model name so far. You can easily view all of the Cube Access bikes models from 2017, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.8 kg (30.42 lbs), CUBE bike is considerably heavier than average. In short, the average Crosscountry bike weight is 11.29% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
ACCESS WLS Disc components
Fork
CUBE ACCESS WLS Disc 2017 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the ACCESS WLS Disc model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACCESS WLS Disc comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
