Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GTC Twin Mold Monocoque Technology, ARG2, Tapered Head Tube, PressFit BB, X12, Integrated Cable Routing
Suspension Fork
Manitou Minute TS Air, QR15 HexLock, Tapered, 100mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DSGS, ShadowPlus, 11-Speed, Direct Mount
Front Derailleur
Shimano XT FD-M8020-D, Direct Mount, Side Swing
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
Shimano XT FC-M8000, 36x26T, 170mm
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Rims
Fulcrum Red 66, 28/28 Spokes, 15QR/X12
Tires
Schwalbe Rocket Ron Kevlar 2.25
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar Pro, 720mm
Grips
CUBE Natural Fit Race
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Selle Italia SC1 WLS
Seatpost
CUBE Prolight, 27.2*400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.54 mm | 1.49 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 309 mm |
| Front Center | 628 mm | 640 mm | 658 mm | 680 mm |
| Rake | 44 mm | 44 mm | 50 mm | 51 mm |
| Trail | 89 mm | 83 mm | 83 mm | 82 mm |
| Stack | 587 mm | 591 mm | 624 mm | 633 mm |
| Reach | 382 mm | 403 mm | 406 mm | 424 mm |
| Top Tube Length | 554 mm | 576 mm | 593.5 mm | 615 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 430 mm | 430 mm | 441 mm | 441 mm |
| Wheelbase | 1053 mm | 1065 mm | 1091 mm | 1113 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" |
About this model

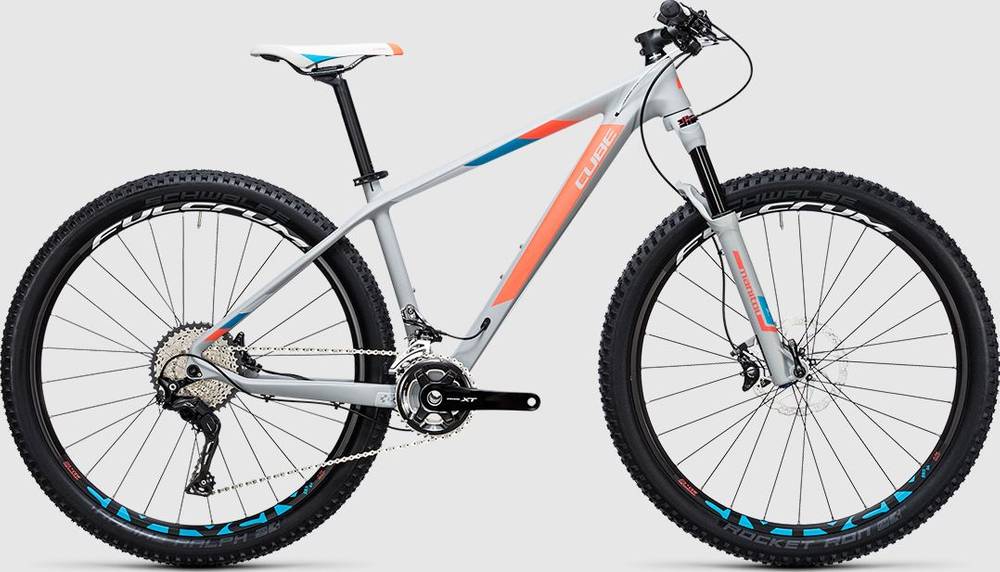

ACCESS WLS GTC SL is part of the Cube Access model. CUBE launched 94 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 10.9 kg (24.03 lbs), CUBE bike is considerably lighter than average. In short, the average Crosscountry bike weight is 13.76% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The ACCESS WLS GTC SL comes factory-installed with the Manitou fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, CUBE ACCESS WLS GTC SL 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ACCESS WLS GTC SL has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
