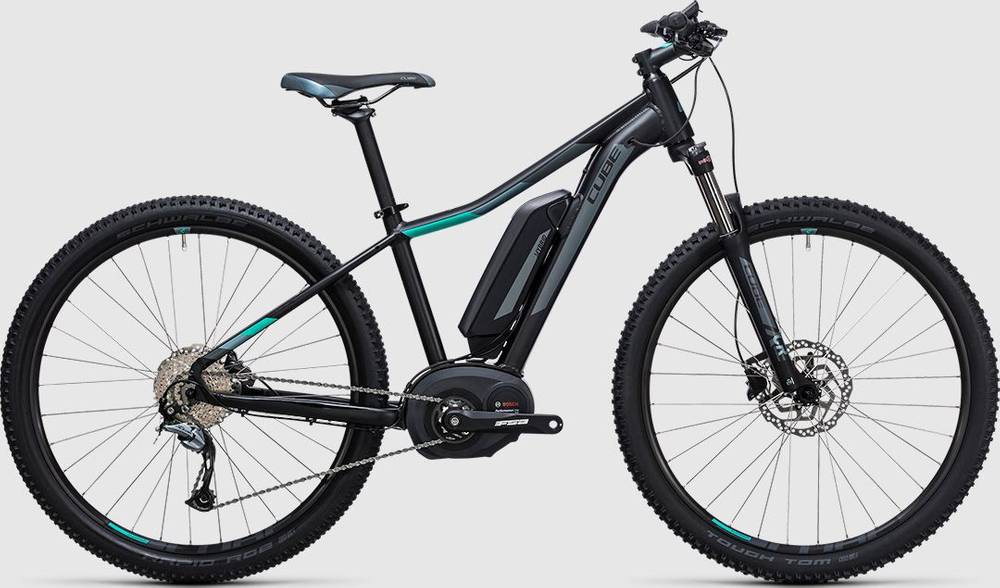

CUBE ACCESS WLS HYBRID ONE 400 2017
2017 E-bike
Weight | 20.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Sora, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only
Suspension Fork
SR Suntour XCM32 DS, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3000, 9-Speed
Shift Levers
Shimano SL-M370, Rapidfire-Plus
Cassette
Shimano CS-HG300, 12-36T
Crank
FSA CK-745, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR
Rear Hub
Shimano FH-TX505, QR
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WLS Active 1.1
Seatpost
CUBE Perfomance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.61 mm | 1.65 mm | 1.61 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 314 mm | 314 mm |
| Front Center | 604 mm | 627 mm | 642 mm | 657 mm |
| Rake | 45 mm | 45 mm | 50 mm | 51 mm |
| Trail | 88 mm | 88 mm | 87 mm | 82 mm |
| Stack | 603 mm | 603 mm | 628 mm | 640 mm |
| Reach | 351 mm | 374 mm | 381 mm | 397 mm |
| Top Tube Length | 528 mm | 551 mm | 571 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 456 mm |
| Wheelbase | 1032 mm | 1055 mm | 1091 mm | 1106 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 29" | 29" |
Model Overview
ACCESS WLS HYBRID ONE 400 belongs to the Cube E Access model. There are 57 e-bikes that carry this model name. You can easily view all of the Cube E Access e-bikes models from 2017, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 20.8 kg (45.86 lbs), CUBE e-bike is considerably lighter than average. To sum up, it’s 11.59% lighter than the average weight of Crosscountry e-bikes.
ACCESS WLS HYBRID ONE 400 components
Fork
This e-bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the ACCESS WLS HYBRID ONE 400 e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE ACCESS WLS HYBRID ONE 400 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
