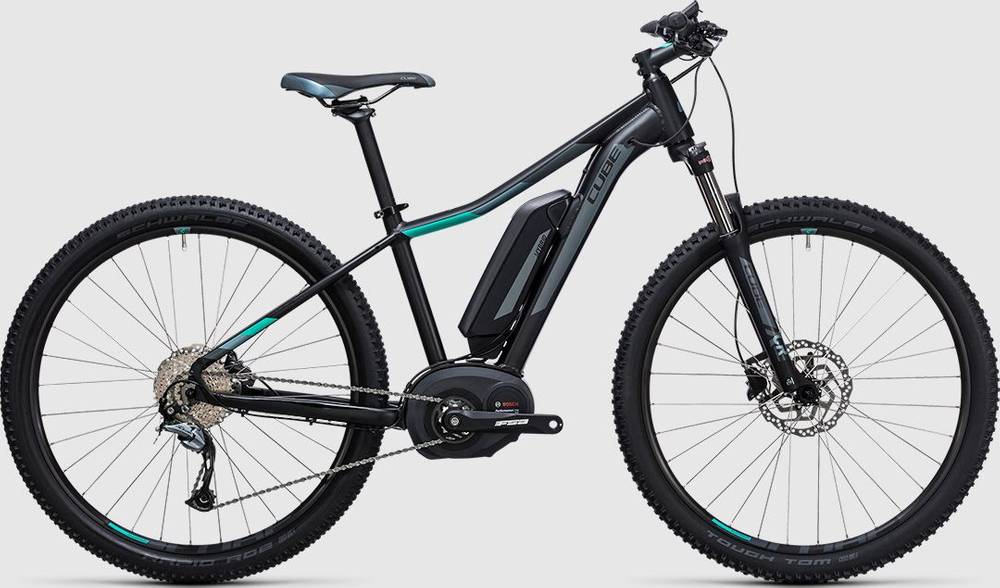

CUBE ACCESS WLS HYBRID ONE 500 2017
2017 E-bike
Weight | 20.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Sora, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only
Suspension Fork
SR Suntour XCM32 DS, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3000, 9-Speed
Shift Levers
Shimano SL-M370, Rapidfire-Plus
Cassette
Shimano CS-HG300, 12-36T
Crank
FSA CK-745, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR
Rear Hub
Shimano FH-TX505, QR
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WLS Active 1.1
Seatpost
CUBE Perfomance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.61 mm | 1.65 mm | 1.61 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 314 mm | 314 mm |
| Front Center | 604 mm | 627 mm | 642 mm | 657 mm |
| Rake | 45 mm | 45 mm | 50 mm | 51 mm |
| Trail | 88 mm | 88 mm | 87 mm | 82 mm |
| Stack | 603 mm | 603 mm | 628 mm | 640 mm |
| Reach | 351 mm | 374 mm | 381 mm | 397 mm |
| Top Tube Length | 528 mm | 551 mm | 571 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 456 mm |
| Wheelbase | 1032 mm | 1055 mm | 1091 mm | 1106 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 29" | 29" |
About this model
ACCESS WLS HYBRID ONE 500 is a Cube E Access model. CUBE launched 57 e-bikes of this model so far. Take a sneak peek at all Cube E Access e-bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably lighter than average, ACCESS WLS HYBRID ONE 500 has a weight of 20.8 kg (45.86 lbs). In other words, this model is 11.59% lighter than the average Crosscountry e-bike.
ACCESS WLS HYBRID ONE 500 components
Fork
CUBE ACCESS WLS HYBRID ONE 500 2017 e-bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the ACCESS WLS HYBRID ONE 500 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
