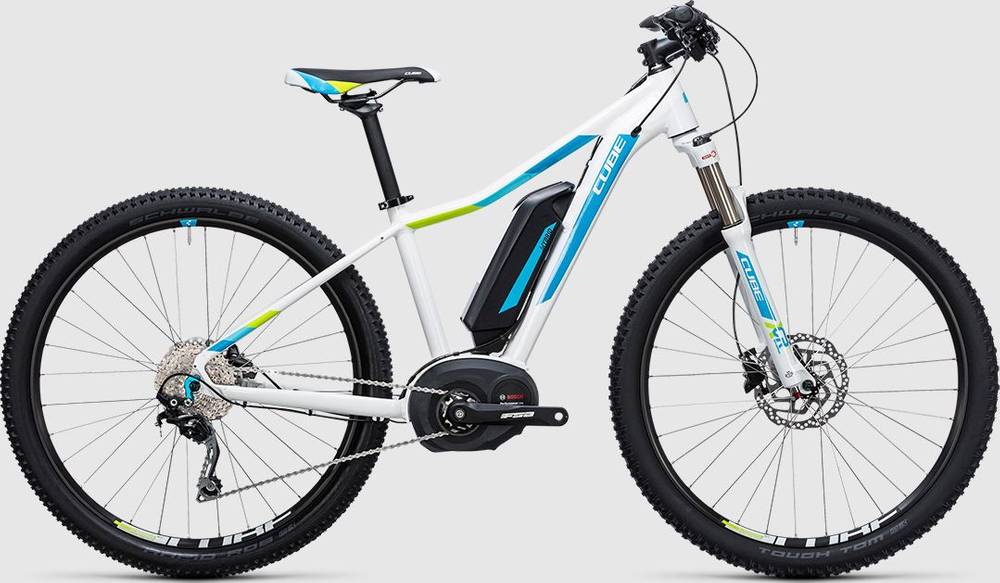

CUBE ACCESS WLS HYBRID Pro 400 2017
2017 E-bike
Weight | 20.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCR 32
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only
Suspension Fork
SR Suntour XCR32 RL-R Coil, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M610-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M610, Rapidfire-Plus
Cassette
Shimano CS-HG50, 11-36T
Crank
FSA CK-745, 15T
Chain
KMC X10-73
Wheels
Front Hub
Shimano HB-TX505, QR
Rear Hub
Shimano FH-TX505, QR
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WLS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.75 mm | 1.64 mm | 1.64 mm | 1.58 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 309 mm |
| Front Center | 604 mm | 628 mm | 646 mm | 666 mm |
| Rake | 45 mm | 45 mm | 51 mm | 51 mm |
| Trail | 88 mm | 88 mm | 82 mm | 82 mm |
| Stack | 600 mm | 600 mm | 628 mm | 633 mm |
| Reach | 342 mm | 366 mm | 382 mm | 400 mm |
| Top Tube Length | 526 mm | 550 mm | 574 mm | 594 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 365 mm | 395 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 469 mm | 469 mm | 487 mm | 487 mm |
| Wheelbase | 1068 mm | 1092 mm | 1125 mm | 1145 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" |
About this model
ACCESS WLS HYBRID Pro 400 completes the Cube E Access model. CUBE released 57 e-bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ACCESS WLS HYBRID Pro 400 weighs 20.6 kg (45.42 lbs) and is considerably lighter than the average. In short, the average Crosscountry e-bike weight is 12.67% higher than this one.
ACCESS WLS HYBRID Pro 400 components
Fork
CUBE ACCESS WLS HYBRID Pro 400 2017 e-bike is equipped with the SunTour XCR 32 fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The ACCESS WLS HYBRID Pro 400 2017 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE ACCESS WLS HYBRID Pro 400 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
