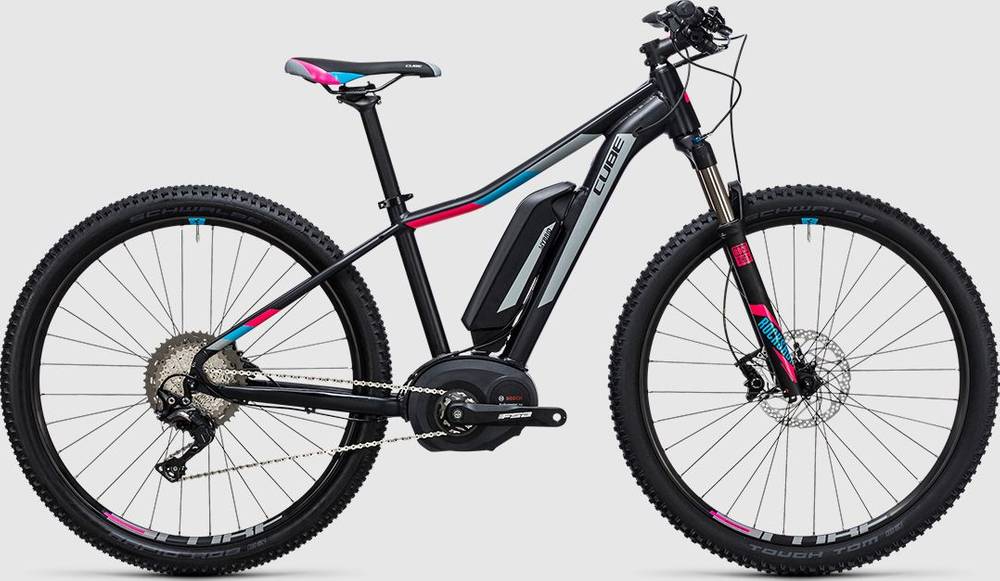

CUBE ACCESS WLS HYBRID Race 500 2017
2017 E-bike
Weight | 19.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Recon Silver TK
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only
Suspension Fork
Rock Shox Recon Silver TK Air, 100mm, PopLoc
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-GS, 11-Speed
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
FSA CK-745, 15T
Chain
KMC X11
Wheels
Front Hub
Shimano Deore HB-M615, Centerlock
Rear Hub
Shimano Deore FH-M615, Centerlock
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Natural Fit Comfort
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE WLS Active 1.1
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.75 mm | 1.64 mm | 1.64 mm | 1.58 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 309 mm |
| Front Center | 604 mm | 628 mm | 646 mm | 666 mm |
| Rake | 45 mm | 45 mm | 51 mm | 51 mm |
| Trail | 88 mm | 88 mm | 82 mm | 82 mm |
| Stack | 600 mm | 600 mm | 628 mm | 633 mm |
| Reach | 342 mm | 366 mm | 382 mm | 400 mm |
| Top Tube Length | 526 mm | 550 mm | 574 mm | 594 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 365 mm | 395 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 120 mm |
| Chainstay Length | 469 mm | 469 mm | 487 mm | 487 mm |
| Wheelbase | 1068 mm | 1092 mm | 1125 mm | 1145 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" |
About this model
ACCESS WLS HYBRID Race 500 is part of the Cube E Access model. There are 57 e-bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry e-bikes
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, ACCESS WLS HYBRID Race 500 has a weight of 19.9 kg (43.87 lbs). To sum up, it’s 16.63% lighter than the average weight of Crosscountry e-bikes.
ACCESS WLS HYBRID Race 500 components
Fork
The RockShox Recon Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on ACCESS WLS HYBRID Race 500 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
