Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
SR Suntour XCM RL Disc 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M592, 9-Speed
Front Derailleur
Shimano FD-M4000, Downswing, 31,8
Shift Levers
Shimano SL-M4000, Rapidfire-Plus
Cassette
Shimano CS-HG300, 12-36T
Crank
Shimano FC-M3000, 9-Speed, 40x30x22T, 170mm
Chain
Shimano CN-HG53
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505
Rear Hub
Shimano FH-TX505
Rims
CUBE ZX 20, Disc
Tires
Schwalbe Smart Sam, Active, 2.25"
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE WLS Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.61 mm | 1.65 mm | 1.61 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 314 mm | 314 mm |
| Front Center | 604 mm | 627 mm | 642 mm | 657 mm |
| Rake | 45 mm | 45 mm | 50 mm | 51 mm |
| Trail | 88 mm | 88 mm | 87 mm | 82 mm |
| Stack | 603 mm | 603 mm | 628 mm | 640 mm |
| Reach | 351 mm | 374 mm | 381 mm | 397 mm |
| Top Tube Length | 528 mm | 551 mm | 571 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 456 mm |
| Wheelbase | 1032 mm | 1055 mm | 1091 mm | 1106 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 29" | 29" |
Model Overview

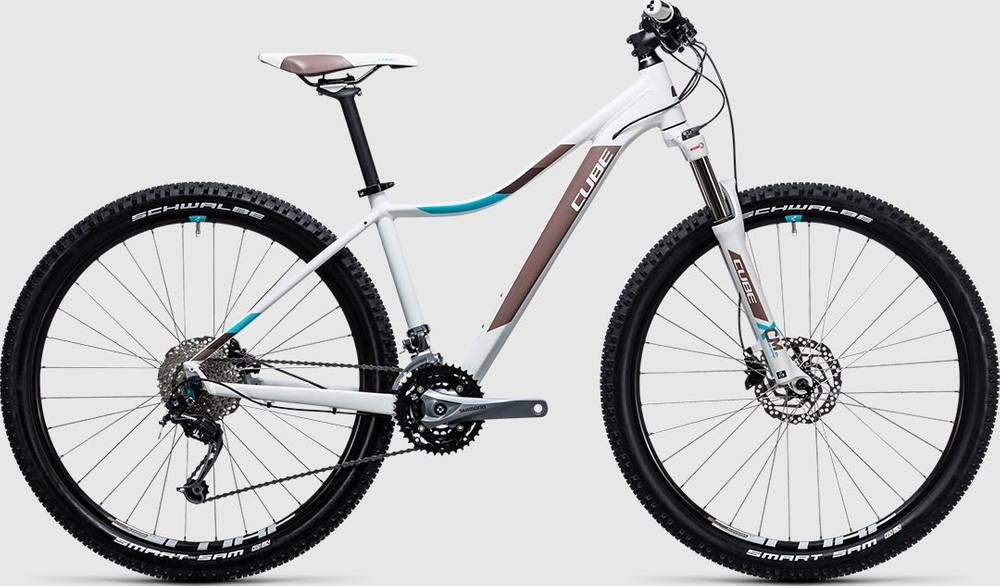

ACCESS WLS Pro belongs to the Cube Access model. CUBE released 94 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.7 kg (30.2 lbs), the ACCESS WLS Pro model is considerably heavier than average. In short, the average Crosscountry bike weight is 10.48% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the ACCESS WLS Pro bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
