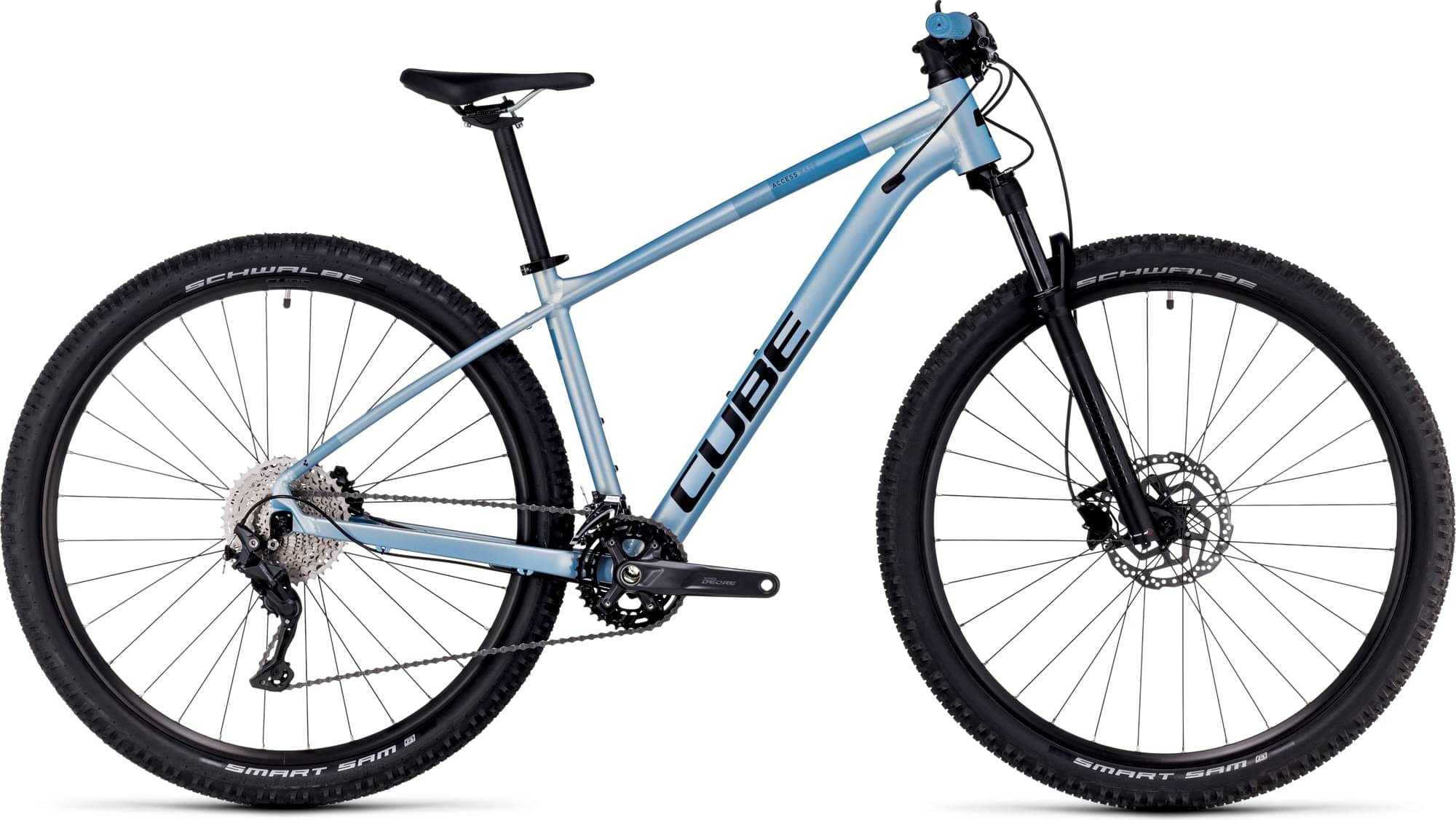

CUBE ACCESS WS RACE 2023

2023 Mountain
Estimate price | 1,146$
Weight | 13.9 kg
Open compare Use advisor
  • CUBE ACCESS WS RACE 2023 - Sagemetallic’n’petrol
  • CUBE ACCESS WS RACE 2023 - cube-access-ws-race-2023-1.jpeg
  • CUBE ACCESS WS RACE 2023 - cube-access-ws-race-2023-2.jpeg
  • CUBE ACCESS WS RACE 2023 - cube-access-ws-race-2023-3.jpeg
  • CUBE ACCESS WS RACE 2023 - cube-access-ws-race-2023-4.jpeg
  • CUBE ACCESS WS RACE 2023 - cube-access-ws-race-2023-5.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 27.5"
  • Travel Front 100mm
  • Fork RockShox Judy Silver TK
  • Groupset Deore, SLX
  • Suspension Hardtail
  • Drivetrain 2 × 11
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    151cm - 164cm

  • SM

    159cm - 170cm

  • MD

    165cm - 177cm

  • LG

    171cm - 184cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

Suspension Fork

RockShox Judy Silver TK Air, 100mm, PopLoc

Drivetrain

Rear Derailleur

Shimano Deore RD-M4120-SGS, 11-Speed

Front Derailleur

Shimano SLX FD-M7025-L, Topswing, 31.8mm Clamp

Shift Levers

Shimano Deore SL-M5100, Rapidfire-Plus

Cassette

Shimano CS-M5100, 11-42T

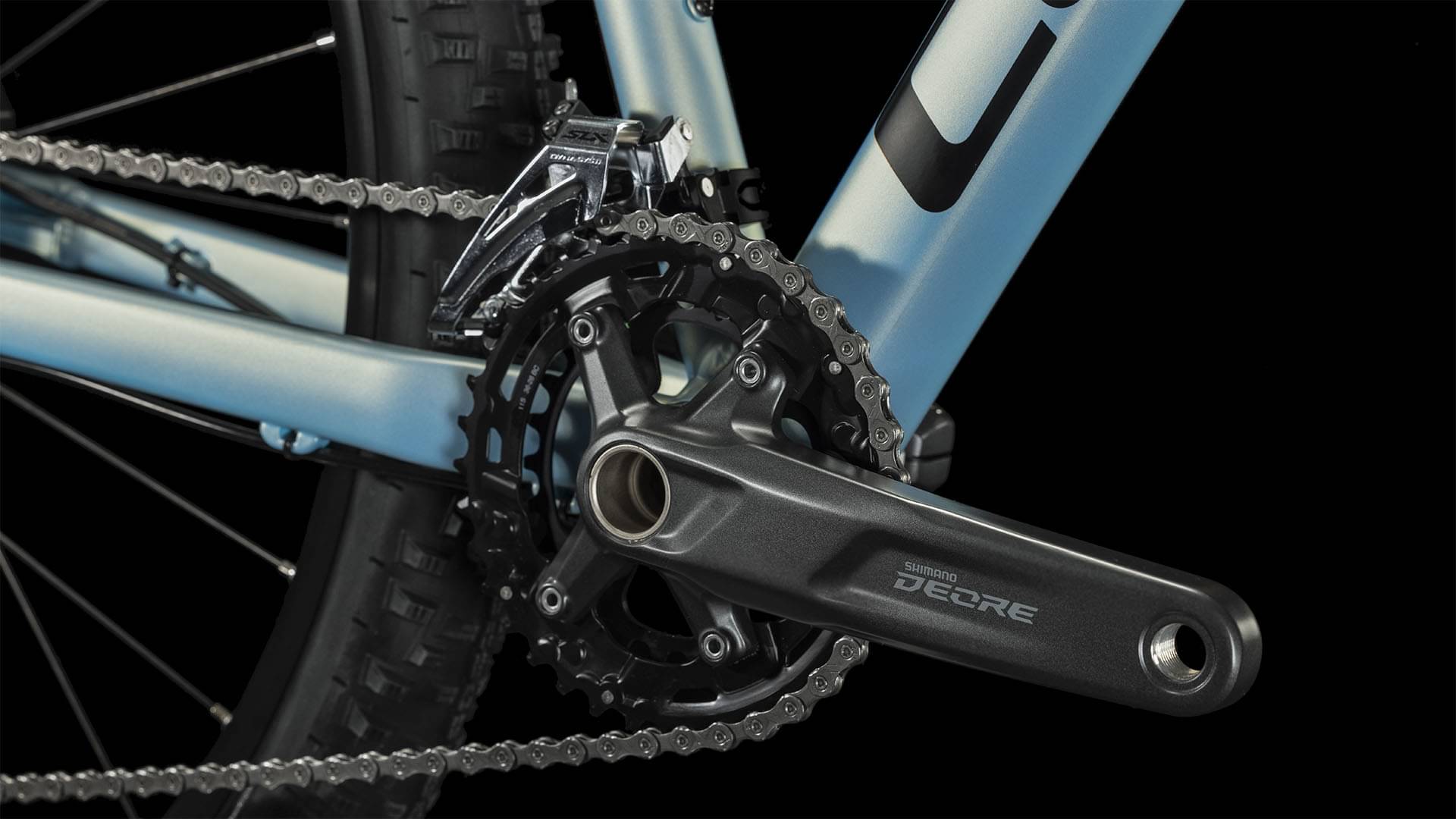

Crank

Shimano Deore FC-M5100, 36X26T, 175mm

Bottom Bracket

Shimano SM-BB52, 68mm BSA

Chain

KMC X11

Pedals

ACID PP MTB

Wheels

Front Hub

Shimano HB-M4050, QR, Centerlock

Rear Hub

Shimano FH-M4050, QR, Centerlock

Rims

CUBE ZX20, 32H, Disc

Tires

Schwalbe Smart Sam, Active, 2.25

Brakes

Brakes

Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)

Cockpit

Stem

CUBE Performance Stem SLX, 31.8mm

Handlebar

CUBE Rise Trail Bar, 680mm

Grips

ACID React

Headset

CUBE FPH868, Semi-Integrated

Seat

Saddle

Natural Fit Venec Lite WS

Seatpost

CUBE Performance Post, 27.2mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLG
Stack Reach Ratio
1.6 mm1.55 mm1.58 mm1.54 mm
Bottom Bracket Height
303 mm303 mm309 mm309 mm
Front Center
641 mm656 mm679 mm700
Rake
42 mm42 mm46 mm46 mm
Trail
95 mm95 mm98 mm98 mm
Stack
591 mm593 mm623 mm633 mm
Reach
369 mm383 mm394 mm411 mm
Top Tube Length
541 mm561 mm581 mm601 mm
Seat Tube Angle
74 °73.5 °73.5 °73.5 °
Seat Tube Length
340 mm370 mm420 mm470 mm
Head Tube Angle
68.5 °68.5 °68.5 °68.5 °
Head Tube Length
113 mm116 mm116 mm127 mm
Chainstay Length
418 mm418 mm441 mm441 mm
Wheelbase
1054 mm1069 mm1112 mm1133 mm
Bottom Bracket Drop
52 mm52 mm65 mm65 mm
Wheels27"27"29"29"
Rider Min Height151 cm159 cm165 cm171 cm
Rider Max Height164 cm170 cm177 cm184 cm

Model Overview

ACCESS WS RACE completes the Cube Access model. There are 94 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.

Model range prices

CUBE ACCESS WS 2023 is the most affordable bike of this model and has a price of 636$. On the other hand, CUBE ACCESS WS C:62 SL 2023, is the most expensive and costs 2866$.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Average price for Crosscountry bikes

According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.

This bike was released in 2023 and its price was 1061$. Comparing this to the average Crosscountry bike price, we see that the price is 79.55% lower.

Crosscountry bikes average weight

The average weight for Crosscountry bikes is 12.31 kg (27.14 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.

Weighing 13.9 kg (30.64 lbs), the ACCESS WS RACE model is considerably heavier than average. In other words, this model is 12.92% heavier than the average Crosscountry bike.

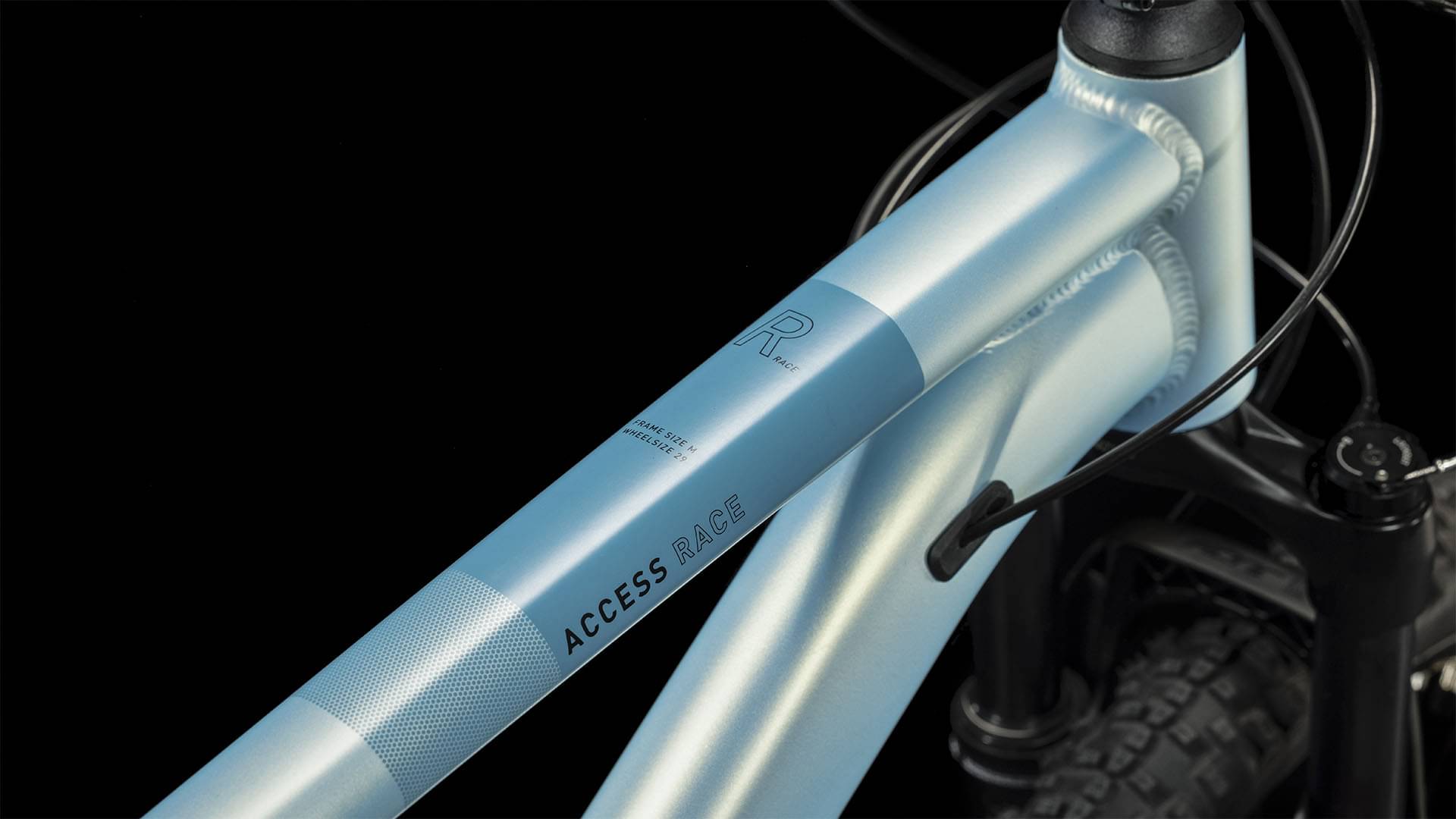

Internal Cable Routing

Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.

Overview of components

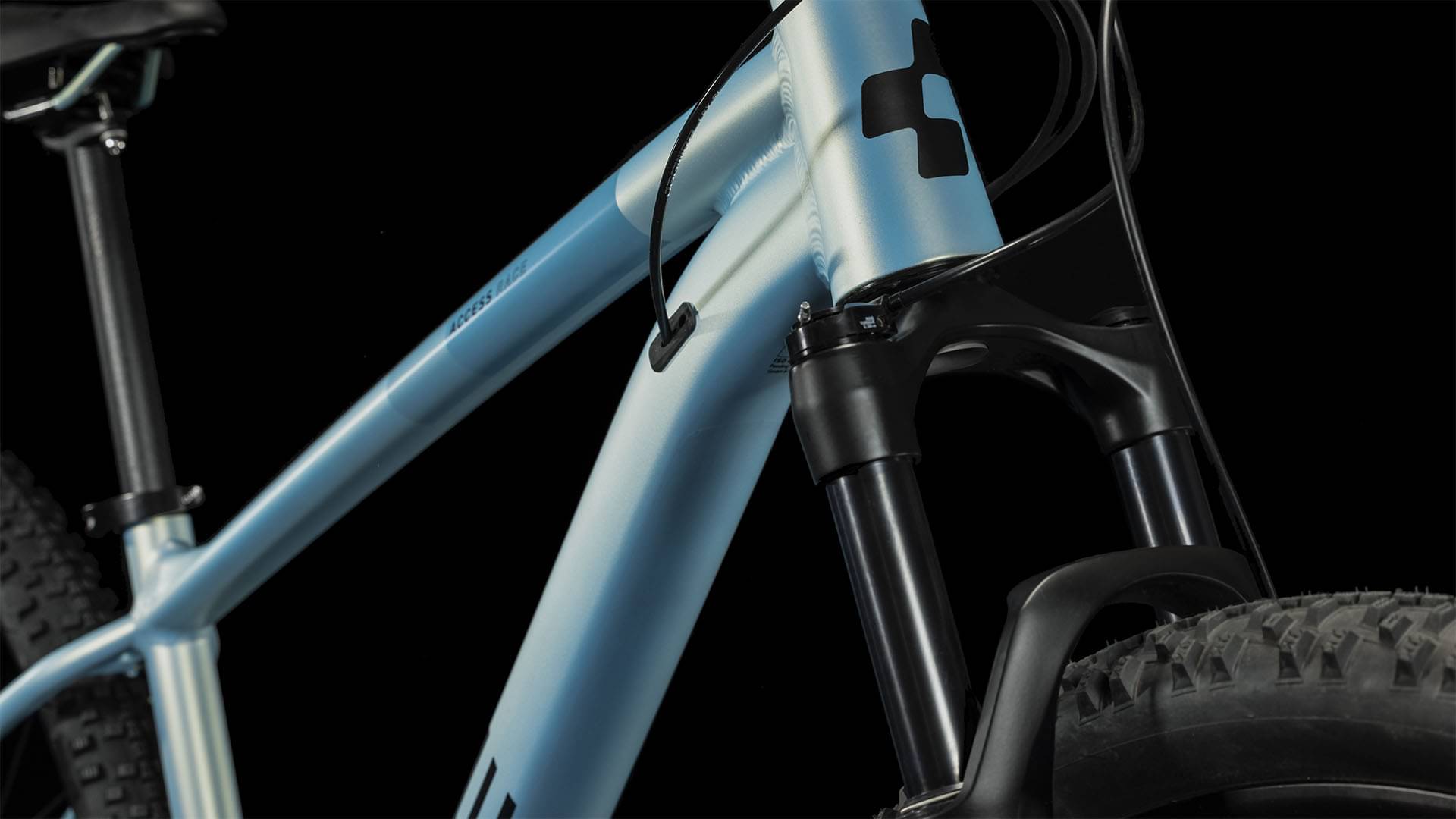

Fork

The fork installed on this bike is the RockShox Judy Silver TK model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

Wheels

The ACCESS WS RACE 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACCESS WS RACE comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.

Sizes

CUBE ACCESS WS RACE bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
