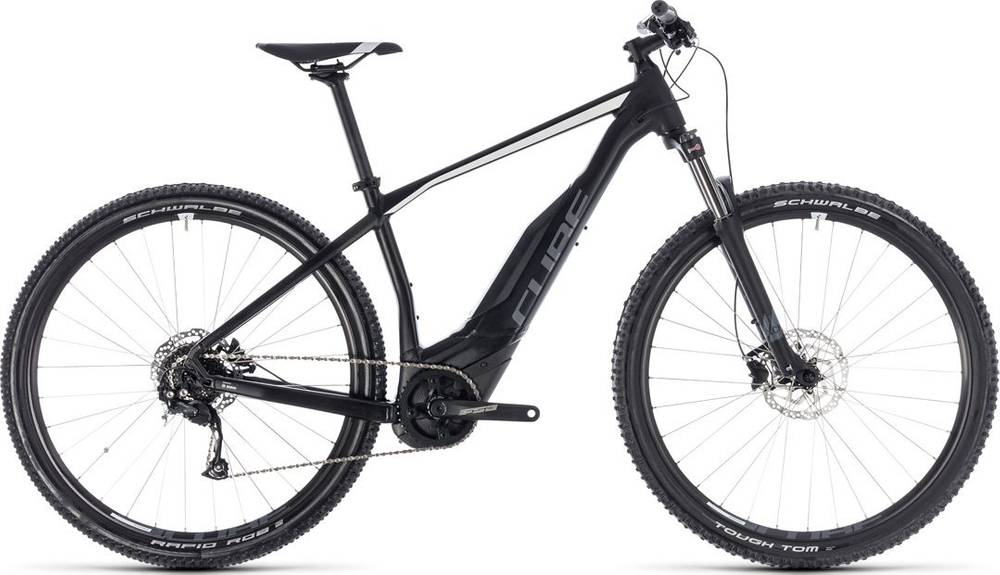

CUBE ACID HYBRID ONE 400 29 2018
2018 E-bike
Weight | 21.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Advanced Hydroforming, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
SR Suntour XCM ATB Coil, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano RD-M2000-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA CK-602, 38T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.54 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 663 mm | 684 mm | 704 mm | 725 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 619 mm | 626 mm | 636 mm | 645 mm | 659 mm |
| Reach | 382 mm | 395 mm | 412 mm | 429 mm | 445 mm |
| Top Tube Length | 564 mm | 579 mm | 599 mm | 619 mm | 639 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm | 133 mm | 148 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1113 mm | 1129 mm | 1150 mm | 1170 mm | 1192 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
ACID HYBRID ONE 400 29 is a Cube E Acid model. CUBE released 31 e-bikes variations of this model so far. You can easily view all of the Cube E Acid e-bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
CUBE ACID HYBRID ONE 400 29 it’s weighing 21.7 kg (47.84 lbs). At this weight, is a bit lighter than average. In other words, this model is 6.96% lighter than the average Crosscountry e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
ACID HYBRID ONE 400 29 components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the ACID HYBRID ONE 400 29 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
