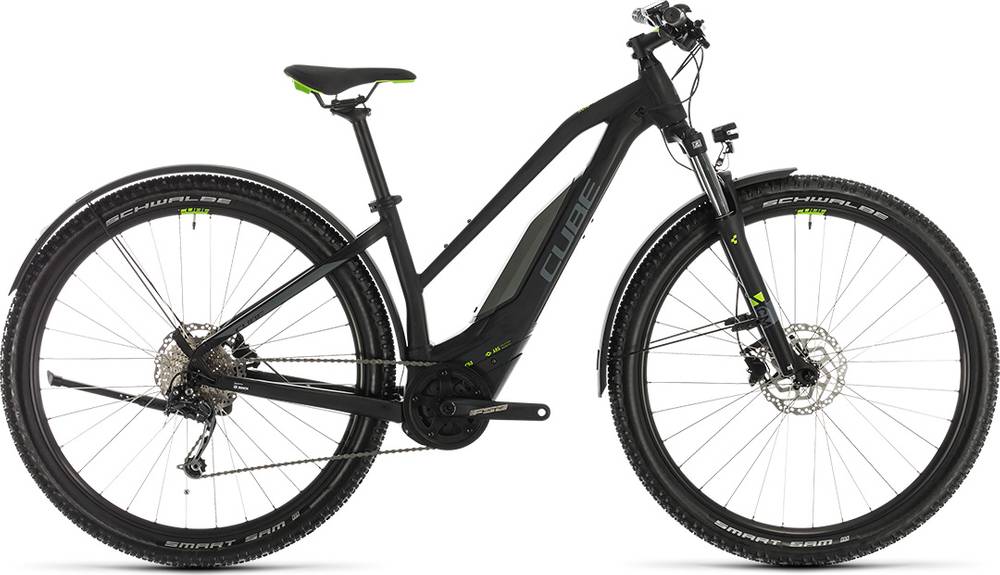

CUBE ACID HYBRID ONE 400 ALLROAD 29 Trapeze 2020
2020 E-bike
Estimate price |
2,235$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
SR Suntour XCM ATB Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore, 11-36T, 1x9
Shift Levers
Shimano SL-M2010-9R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
FSA CK-602, 38T
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, K-Guard, 2.35
Brakes
Brakes
Shimano BR-MT200
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance GEN3 (65Nm)
Battery
PowerPack 400
Remote
Purion
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.58 mm | 1.54 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 670 mm | 663 mm | 684 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 89 mm | 89 mm |
| Stack | 614 mm | 626 mm | 636 mm |
| Reach | 395 mm | 395 mm | 412 mm |
| Top Tube Length | 564 mm | 579 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1140 mm | 1133 mm | 1154 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 705 mm | 692 mm | 706 mm |
| Wheels | 29" | 29" | 29" |
About this model
ACID HYBRID ONE 400 ALLROAD 29 Trapeze is a Cube E Acid model. CUBE launched 31 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
CUBE ACID 240 HYBRID YOUTH 2020 is the most economical model, with a starting price of 1862$. CUBE ACID HYBRID ONE 500 ALLROAD 29 Trapeze 2020 on the other hand costs 2276$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE ACID HYBRID ONE 400 ALLROAD 29 Trapeze price was 2069$. Doing a quick comparison, we notice that ACID HYBRID ONE 400 ALLROAD 29 Trapeze price is 18.56% smaller than the average cost of a Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, ACID HYBRID ONE 400 ALLROAD 29 Trapeze has a weight of 23.1 kg (50.93 lbs). To sum up, it’s 0.48% lighter than the average weight of Crosscountry e-bikes.
ACID HYBRID ONE 400 ALLROAD 29 Trapeze components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The ACID HYBRID ONE 400 ALLROAD 29 Trapeze 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACID HYBRID ONE 400 ALLROAD 29 Trapeze comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
