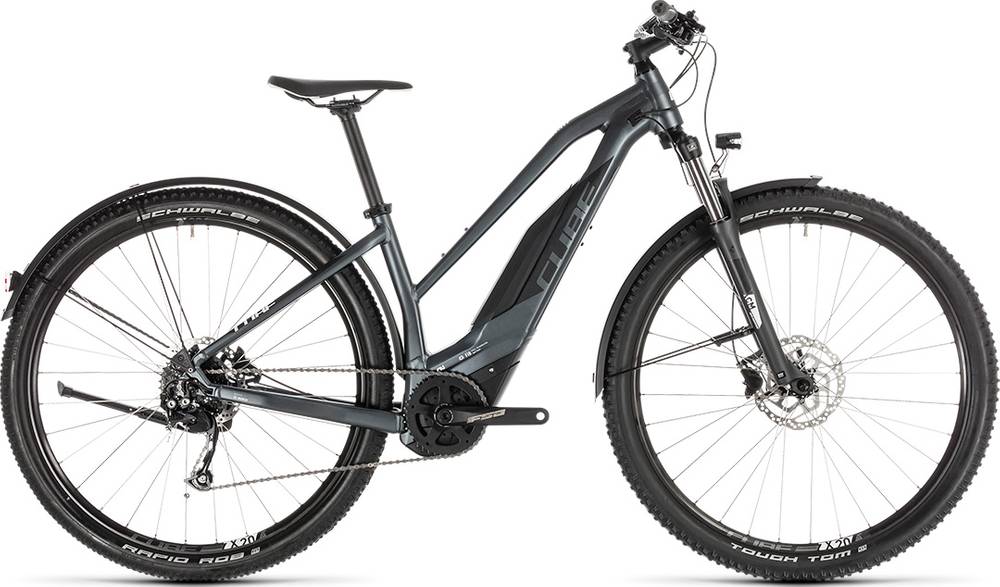

CUBE ACID HYBRID ONE ALLROAD 400 29 Trapeze 2019
2019 E-bike
Estimate price |
2,178$
Weight | 22.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery
Suspension Fork
SR Suntour XCM ATB Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M2000-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA CK-602, 38T, 175mm
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.54 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 663 mm | 684 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 619 mm | 626 mm | 636 mm |
| Reach | 382 mm | 395 mm | 412 mm |
| Top Tube Length | 564 mm | 579 mm | 599 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1113 mm | 1129 mm | 1150 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
About this model
ACID HYBRID ONE ALLROAD 400 29 Trapeze is part of the Cube E Acid model. There are 31 e-bikes that carry this model name. Take a sneak peek at all Cube E Acid e-bikes models from 2019, by clicking here.
Model range prices
CUBE ACID HYBRID ONE 400 29 2019 is the cheapest e-bike model and costs 1910$. CUBE ACID HYBRID Pro 500 29 Trapeze 2019 is the most expensive one and costs 2547$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 2016$. Doing a quick comparison, we notice that ACID HYBRID ONE ALLROAD 400 29 Trapeze price is 21.68% smaller than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
ACID HYBRID ONE ALLROAD 400 29 Trapeze weighs 22.7 kg (50.04 lbs) and is slightly lighter than the average. In short, the average Crosscountry e-bike weight is 2.25% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ACID HYBRID ONE ALLROAD 400 29 Trapeze components
Fork
CUBE ACID HYBRID ONE ALLROAD 400 29 Trapeze 2019 e-bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on ACID HYBRID ONE ALLROAD 400 29 Trapeze are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACID HYBRID ONE ALLROAD 400 29 Trapeze comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
