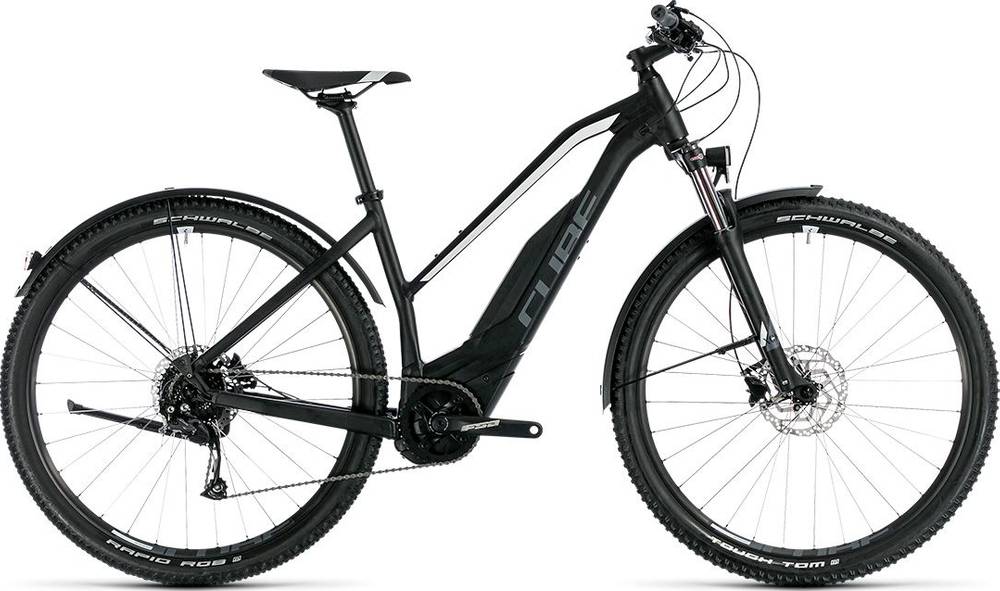

CUBE ACID HYBRID ONE Allroad 500 29 Trapeze 2018
2018 E-bike
Weight | 22.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Advanced Hydroforming, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
SR Suntour XCM ATB Coil, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano RD-M2000-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA CK-602, 38T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.54 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 663 mm | 684 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 619 mm | 626 mm | 636 mm |
| Reach | 382 mm | 395 mm | 412 mm |
| Top Tube Length | 564 mm | 579 mm | 599 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1113 mm | 1129 mm | 1150 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
About this model
ACID HYBRID ONE Allroad 500 29 Trapeze is a Cube E Acid model. CUBE released 31 e-bikes variations of this model so far. You can easily view all of the Cube E Acid e-bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly lighter than average, ACID HYBRID ONE Allroad 500 29 Trapeze has a weight of 22.6 kg (49.82 lbs). In other words, this model is 2.7% lighter than the average Crosscountry e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ACID HYBRID ONE Allroad 500 29 Trapeze components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on ACID HYBRID ONE Allroad 500 29 Trapeze are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE ACID HYBRID ONE Allroad 500 29 Trapeze is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
