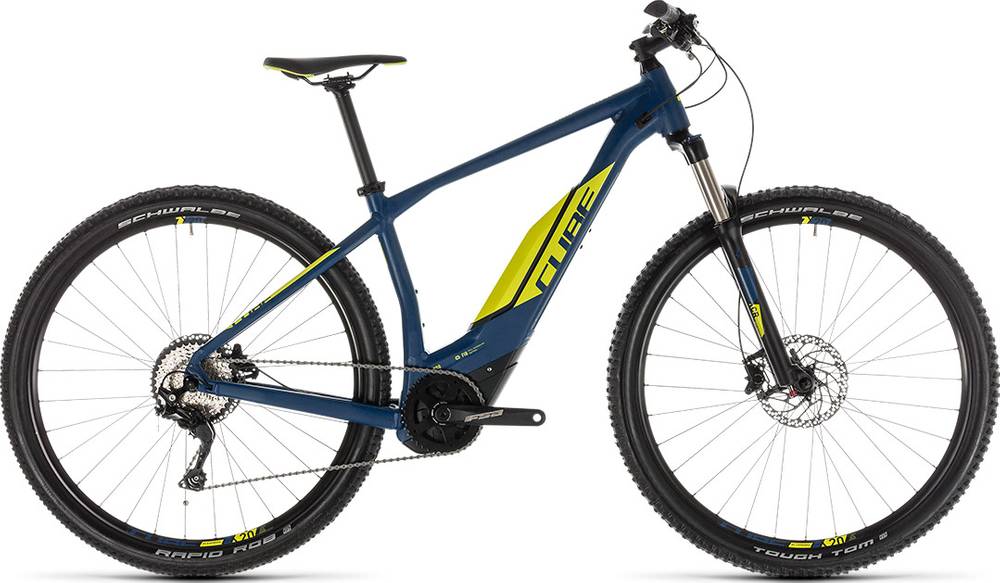

CUBE ACID HYBRID Pro 500 29 2019
2019 E-bike
Estimate price |
2,752$
Weight | 21.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery
Suspension Fork
SR Suntour XCR32 Air, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA CK-602, 38T, 175mm
Chain
KMC X10
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Deore FH-M6000, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-MT400, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit GRIP All Terrain
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.54 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 663 mm | 684 mm | 704 mm | 725 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 619 mm | 626 mm | 636 mm | 645 mm | 659 mm |
| Reach | 382 mm | 395 mm | 412 mm | 429 mm | 445 mm |
| Top Tube Length | 564 mm | 579 mm | 599 mm | 619 mm | 639 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm | 133 mm | 148 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1113 mm | 1129 mm | 1150 mm | 1170 mm | 1192 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
ACID HYBRID Pro 500 29 belongs to the Cube E Acid model. 31 e-bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
CUBE ACID HYBRID ONE 400 29 2019 is the most economical model, with a starting price of 1910$. CUBE ACID HYBRID Pro 500 29 Trapeze 2019 on the other hand costs 2547$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2019 and its price was 2547$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 3.83% higher.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 21.1 kg (46.52 lbs), the ACID HYBRID Pro 500 29 model is much lighter than average. To sum up, it’s 10% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ACID HYBRID Pro 500 29 components
Fork
The SunTour XCR 32 Air is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the ACID HYBRID Pro 500 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
