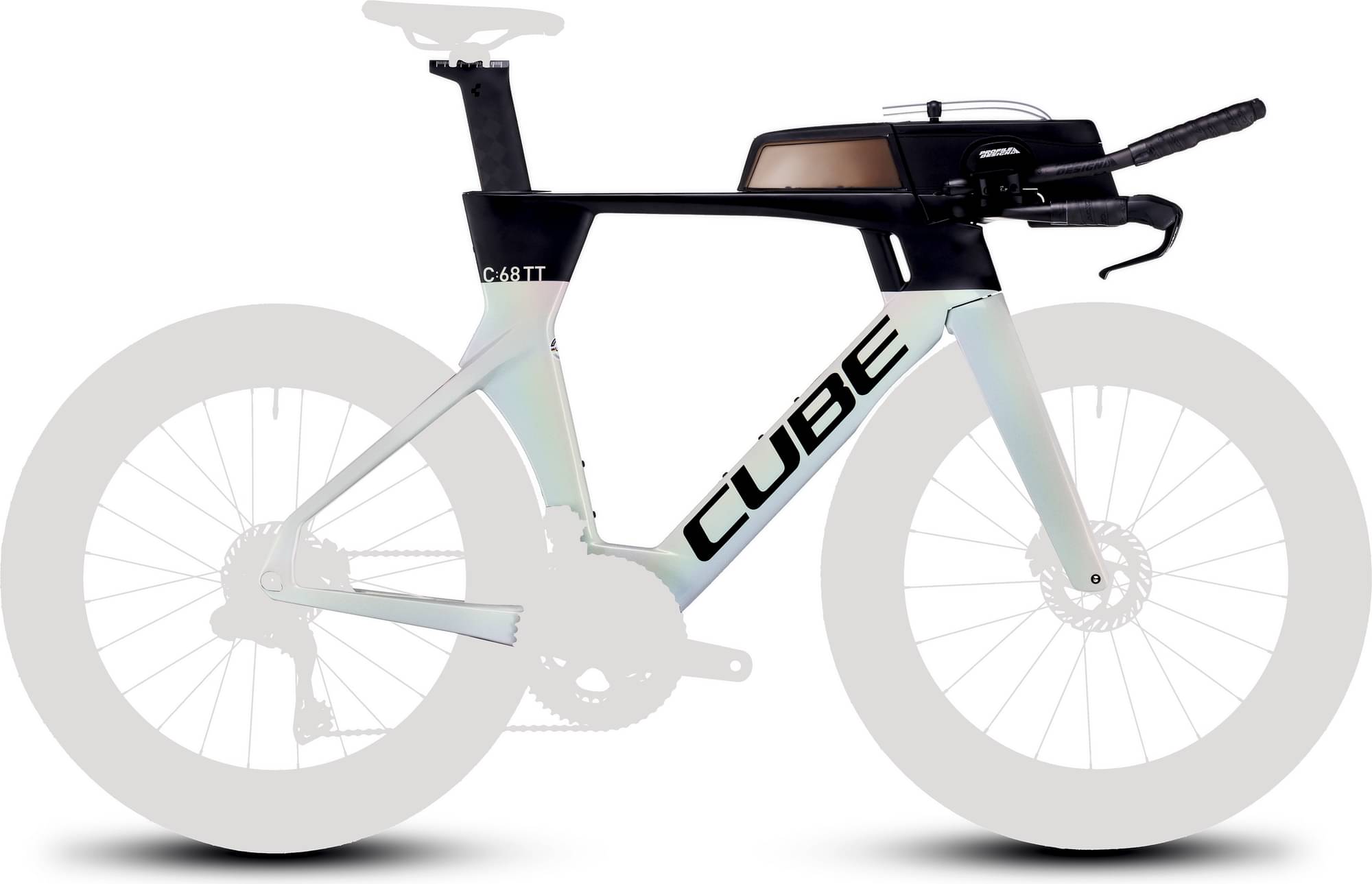

CUBE AERIUM C:68 TT FRAMESET, LOW 2023
2023 Road
Estimate price |
4,013$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aerium C:68® Monocoque Advanced Twin Mold Technology, UCI approved, Twin Head Tube, Full Integrated Cable Routing, Flat Mount Disc, 12x142mm, AXH
Suspension Fork
Aerium C:68® TT, Integrated Cable Routing, Flat Mount Disc, 12x100mm
Cockpit
Handlebar
CUBE Aerium C:68® TT Cockpit System, 400mm
Seat
Seatpost
CUBE Aerium C:68® TT Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.23 mm | 1.23 mm | 1.23 mm | 1.22 mm |
| Bottom Bracket Height | 262 mm | 251 mm | 106 mm | 129 mm |
| Front Center | 581 mm | 597 mm | mm | mm |
| Rake | 43 mm | 49 mm | mm | mm |
| Trail | 64 mm | 58 mm | mm | mm |
| Stack | 486 mm | 497 mm | 517 mm | 539 mm |
| Reach | 395 mm | 404 mm | 420 mm | 441 mm |
| Top Tube Length | 498 mm | 510 mm | 530 mm | 556 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 535 mm | 545 mm | 566 mm | 588 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 74 mm | 85 mm | 106 mm | 129 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 989 mm | 1012 mm | 1040 mm |
| Bottom Bracket Drop | 74 mm | 85 mm | 230 mm | 207 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
AERIUM C:68 TT FRAMESET, LOW belongs to the Cube Aerium model. CUBE released 53 frames variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CUBE AERIUM C:68 TT FRAMESET, HIGH 2023 is the most affordable frame of this model and has a price of 3715$. On the other hand, CUBE AERIUM C:68X, FRAMESET 2023, is the most expensive and costs 4246$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Triathlon frames average price
According to our math, the average price for a trustworthy Triathlon frame is 3089$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, CUBE AERIUM C:68 TT FRAMESET, LOW price was 3715$. Comparing this to the average Triathlon frame price, we see that the price is 20.27% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
AERIUM C:68 TT FRAMESET, LOW components
Fork material
When it comes to the fork, this frame has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
AERIUM C:68 TT FRAMESET, LOW comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
