Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCE, 100mm
Drivetrain
Rear Derailleur
Shimano RD-TX800, 8-Speed
Front Derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-M315, 36x22T, 170mm
Bottom Bracket
Feimin FP-B902N, 73mm BSA
Chain
KMC Z8.3
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE Alloy Light, QR, 6-Bolt
Rear Hub
CUBE Alloy Light, QR, 6-Bolt
Rims
CUBE ZX20, 32H, Disc
Tires
CUBE IMPAC Smartpac, 2.25
Brakes
Brakes
Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH863, Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.55 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 632 mm | 660 mm | 684 mm | 705 mm | 722 mm |
| Rake | 30 mm | 42 mm | 47 mm | 47 mm | 42 mm |
| Trail | 108 mm | 95 mm | 97 mm | 97 mm | 102 mm |
| Stack | 586 mm | 589 mm | 618 mm | 628 mm | 647 mm |
| Reach | 375 mm | 389 mm | 400 mm | 417 mm | 432 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 107 mm | 110 mm | 110 mm | 121 mm | 141 mm |
| Chainstay Length | 432 mm | 432 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1059 mm | 1087 mm | 1128 mm | 1149 mm | 1166 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
AIM completes the Cube Aim model. 58 bikes variations carry this model name so far. Take a sneak peek at all Cube Aim bikes models from 2023, by clicking here.
Model range prices
CUBE AIM 2023 is the cheapest bike model and costs 636$. CUBE AIM, SLX ALLROAD 2023 is the most expensive one and costs 955$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 636$. Comparing the average cost of a Crosscountry bike to this one, you will see that AIM price is 199.53% smaller.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.31 kg (27.14 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
AIM weighs 14.9 kg (32.85 lbs) and is much heavier than the average. In other words, this model is 21.04% heavier than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
AIM components

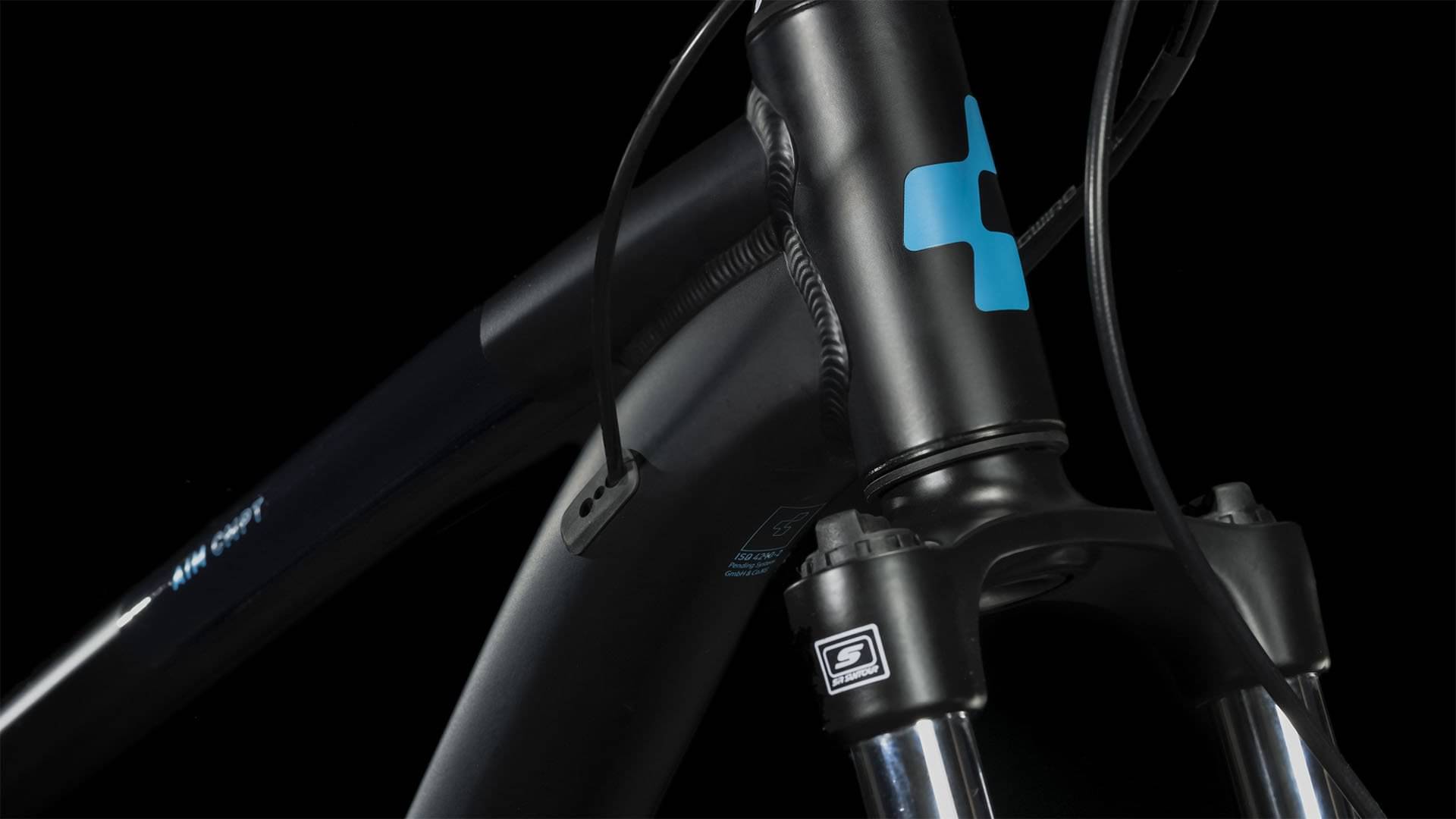

Fork
CUBE AIM 2023 bike is equipped with the Suntour XCE fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, CUBE AIM 2023, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE AIM is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
