Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
SR Suntour XCT Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-TX800, 8-Speed
Front Derailleur
Shimano FD-T700-TS6, Downswing, 31.8mm
Shift Levers
Shimano ST-EF51, EZ Fire Plus
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-T501, 42x32x22T, 170mm
Chain
KMC Z7
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE Alloy Light
Rear Hub
CUBE Alloy Light
Rims
CUBE SD20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.1
Brakes
Brakes
Tektro MD-280, Mech. Disc Brake
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grips
Headset
CUBE No.10 Semi-Integrated
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 647 mm | 662 mm | 683 mm | 693 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm | 82 mm | 82 mm |
| Stack | 621 mm | 632 mm | 642 mm | 656 mm |
| Reach | 384 mm | 401 mm | 418 mm | 423 mm |
| Top Tube Length | 573 mm | 593 mm | 613 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1093 mm | 1108 mm | 1129 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

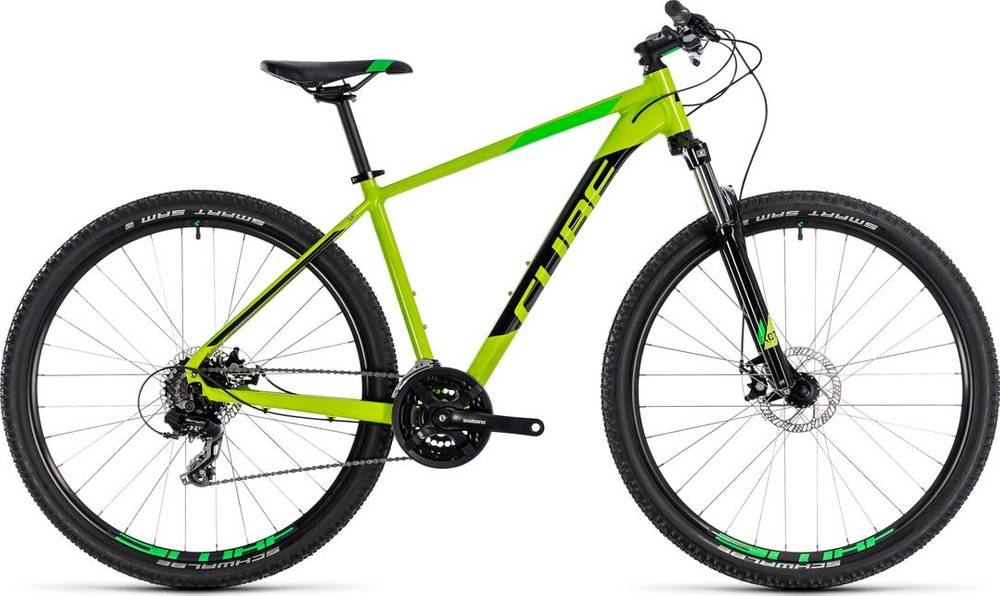

AIM 29 completes the Cube Aim model. 58 bikes variations carry this model name so far. You can easily view all of the Cube Aim bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, AIM 29 has a weight of 14.5 kg (31.97 lbs). In conclusion, the average Crosscountry bike weighs 16.94% less than AIM 29.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
AIM 29 components
Fork
The AIM 29 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the AIM 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE AIM 29 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
