Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Acera, Altus -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
SR Suntour XCM RL, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano RD-M360 SG SL, Direct Attachment
Front Derailleur
Shimano FD-M310, Top Swing
Shift Levers
Shimano SL-M310, Rapidfire-Plus
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-TX801, 42x32x22T, 170mm
Chain
KMC Z7
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX 505
Rear Hub
Shimano FH-TX 505
Rims
CUBE ZX 20, 32H, Disc
Tires
Schwalbe Smart Sam Active, 2.1"
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 660mm
Grips
CUBE Performance Grips
Headset
CUBE No.10 Semi-Integrated
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 18" | 19" | 20" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.57 mm | 1.61 mm | 1.57 mm | 1.57 mm | 1.56 mm | 1.53 mm | 1.55 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 314 mm | 304 mm | 314 mm | 304 mm | 314 mm | 314 mm |
| Front Center | 608 mm | 631 mm | 647 mm | 644 mm | 662 mm | 666 mm | 683 mm | 693 mm |
| Rake | 43 mm | 43 mm | 51 mm | 44 mm | 51 mm | 44 mm | 51 mm | 51 mm |
| Trail | 90 mm | 90 mm | 86 mm | 83 mm | 82 mm | 83 mm | 82 mm | 82 mm |
| Stack | 599 mm | 599 mm | 624 mm | 622 mm | 635 mm | 641 mm | 645 mm | 659 mm |
| Reach | 358 mm | 381 mm | 387 mm | 396 mm | 404 mm | 411 mm | 421 mm | 426 mm |
| Top Tube Length | 533 mm | 556 mm | 576 mm | 578 mm | 596 mm | 599 mm | 616 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73.5 ° | 73 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 450 mm | 470 mm | 490 mm | 515 mm | 565 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 125 mm | 120 mm | 145 mm | 130 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 433 mm | 456 mm | 433 mm | 456 mm | 456 mm |
| Wheelbase | 1036 mm | 1059 mm | 1096 mm | 1072 mm | 1111 mm | 1094 mm | 1132 mm | 1142 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 60 mm | 51 mm | 60 mm | 51 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
About this model

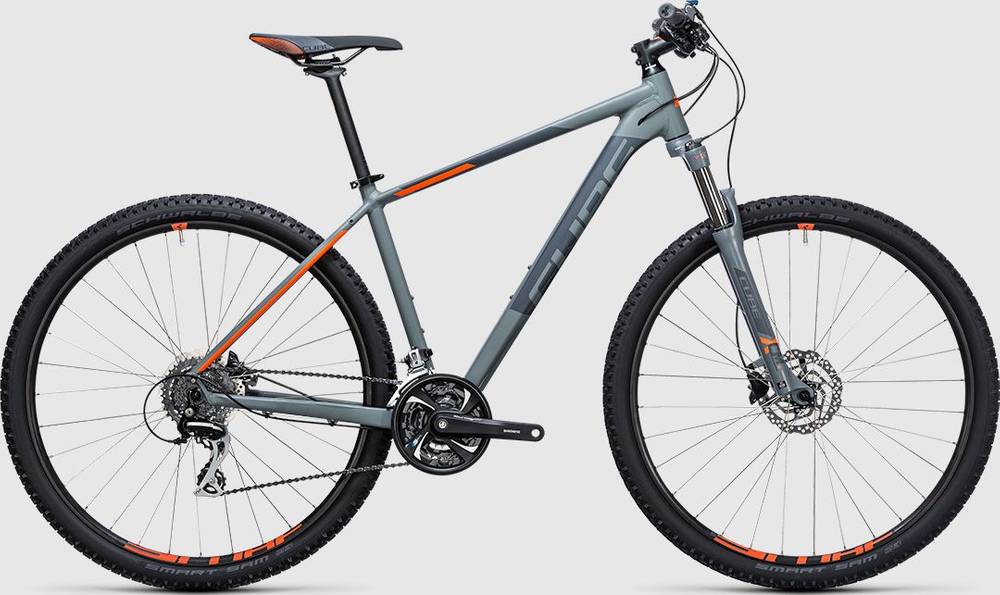

AIM Race completes the Cube Aim model. CUBE released 58 bikes variations of this model so far. You can easily view all of the Cube Aim bikes models from 2017, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CUBE AIM Race it’s weighing 14 kg (30.86 lbs). At this weight, is considerably heavier than average. In short, the average Crosscountry bike weight is 12.9% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
AIM Race components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, CUBE AIM Race 2017, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE AIM Race has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
