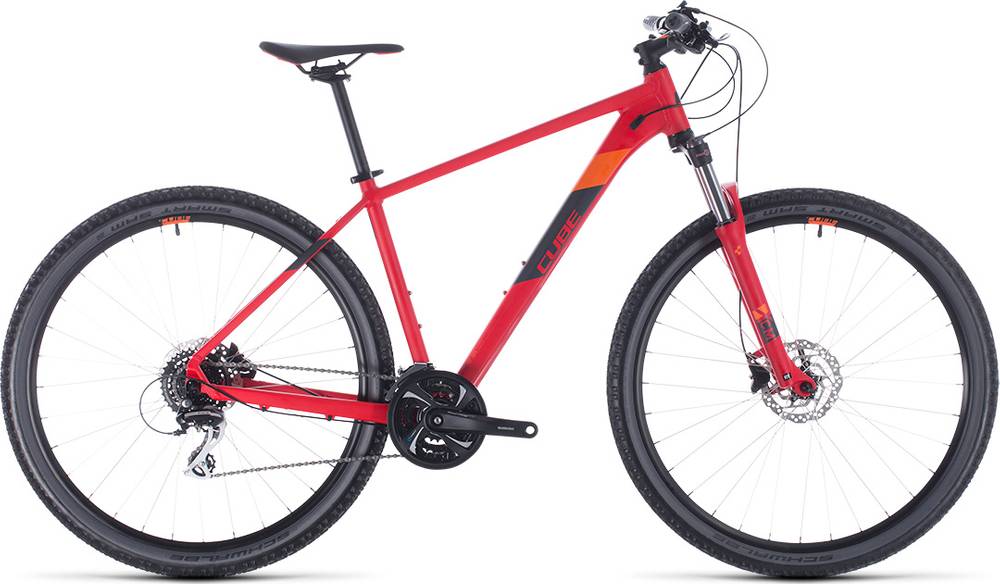

CUBE AIM Race 2020
2020 Mountain
Estimate price |
557$
Weight | 14.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
SR Suntour XCM Disc, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano RD-M360, 11-34T, 3x8
Front Derailleur
Shimano FD-M310, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG318, 11-34T
Crank
Shimano FC-TX801, 42x32x22T
Chain
KMC CU8.3
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SD20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.1
Brakes
Brakes
Shimano BR-MT200
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 660mm
Grips
CUBE Performance Grip
Headset
CUBE FPH863, Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 18" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.57 mm | 1.58 mm | 1.53 mm | 1.55 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 304 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 630 mm | 641 mm | 662 mm | 666 mm | 683 mm | 704 mm | 725 mm |
| Rake | 42 mm | 38 mm | 50 mm | 42 mm | 51 mm | 51 mm | 50 mm |
| Trail | 91 mm | 96 mm | 90 mm | 91 mm | 89 mm | 89 mm | 90 mm |
| Stack | 601 mm | 614 mm | 629 mm | 623 mm | 639 mm | 648 mm | 663 mm |
| Reach | 380 mm | 390 mm | 397 mm | 408 mm | 413 mm | 431 mm | 447 mm |
| Top Tube Length | 551 mm | 567 mm | 581 mm | 591 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 450 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 106 mm | 109 mm | 108.5 mm | 129 mm | 119.5 mm | 129.5 mm | 144.5 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 433 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1057 mm | 1068 mm | 1110 mm | 1094 mm | 1131 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 51 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 716 mm | 751 mm | 775 mm | 786 mm | 811 mm | 842 mm | 877 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" | 29" |
Model Overview
AIM Race completes the Cube Aim model. CUBE released 58 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the CUBE AIM 2020 has a starting price of 413$. CUBE AIM SL ALLROAD 2020 on the other hand is the most expensive at 723$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE AIM Race price was 516$. Comparing this to the average Crosscountry bike price, we see that the price is 269.19% smaller.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, AIM Race has a weight of 14.2 kg (31.31 lbs). In conclusion, the average Crosscountry bike weighs 14.52% less than AIM Race.
Overview of components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, CUBE AIM Race 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE AIM Race has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
