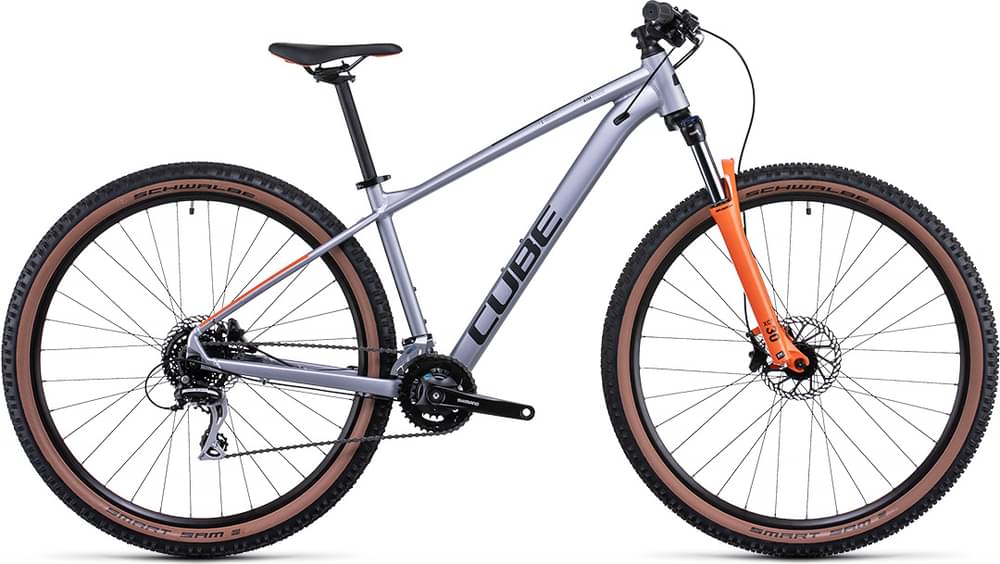

CUBE AIM RACE 2021
2021 Mountain
Estimate price |
687$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCT Disc, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano RD-M360, 8-Speed
Front Derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T
Crank
Shimano FC-M315, 36x22T
Chain
KMC Z8.3
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE Alloy Light, QR, 6-Bolt
Rear Hub
CUBE Alloy Light, QR, 6-Bolt
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Clarks M2, Hydr. Disc Brake, PM/PM (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.54 mm | 1.51 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 309 mm | 309 mm | 323 mm |
| Front Center | 646 mm | 660 mm | 683 mm | 704 mm | 726 mm | 744 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 39 mm |
| Trail | 95 mm | 95 mm | 98 mm | 98 mm | 98 mm | 106 mm |
| Stack | 586 mm | 588.6 mm | 618.3 mm | 628.4 mm | 647 mm | 660.9 mm |
| Reach | 375.4 mm | 389 mm | 400.2 mm | 417.2 mm | 431.7 mm | 447.6 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108.2 mm | 111 mm | 111 mm | 121.8 mm | 141.8 mm | 156.8 mm |
| Chainstay Length | 418 mm | 418 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1058 mm | 1073 mm | 1116 mm | 1137 mm | 1159 mm | 1180 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 65 mm | 65 mm | 51 mm |
| Standover Height | 698 mm | 711 mm | 750 mm | 783 mm | 815 mm | 849 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
AIM RACE belongs to the Cube Aim model. CUBE launched 58 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the CUBE AIM 2021 has a starting price of 530$. CUBE AIM SL ALLROAD 2021 on the other hand is the most expensive at 848$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, CUBE AIM RACE price was 636$. Comparing this to the average Crosscountry bike price, we see that the price is 199.53% lower.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CUBE AIM RACE it’s weighing 14.1 kg (31.09 lbs). At this weight, is considerably heavier than average. To sum up, it’s 13.71% heavier than the average weight of Crosscountry bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
AIM RACE components
Fork
The AIM RACE comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, CUBE AIM RACE 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AIM RACE comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
AIM RACE comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
