Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
SR Suntour XCM RL Disc, Remote Lockout, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M592, 9-Speed
Front Derailleur
Shimano FD-M4000, Downswing, 31.8mm Clamp
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG400, 12-36T
Crank
Shimano FC-MT100, 40x30x22T, 175mm
Chain
Shimano CN-HG53
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25"
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
CUBE No.10 Semi-Integrated
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 647 mm | 662 mm | 683 mm | 693 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm | 82 mm | 82 mm |
| Stack | 621 mm | 632 mm | 642 mm | 656 mm |
| Reach | 384 mm | 401 mm | 418 mm | 423 mm |
| Top Tube Length | 573 mm | 593 mm | 613 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1093 mm | 1108 mm | 1129 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

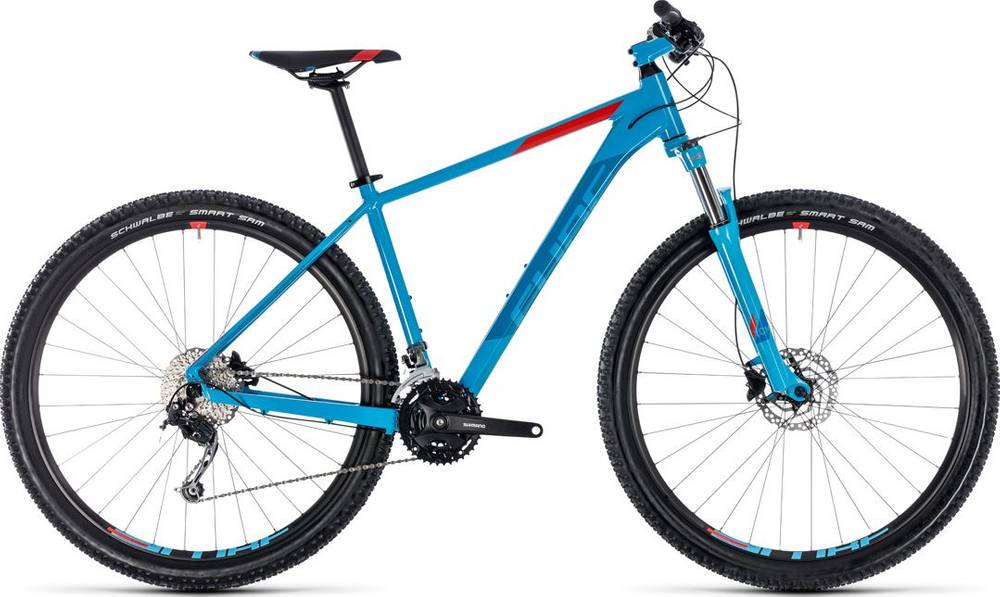

AIM SL 29 is a Cube Aim model. CUBE released 58 bikes variations of this model so far. You can easily view all of the Cube Aim bikes models from 2018, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, AIM SL 29 has a weight of 14.4 kg (31.75 lbs). In short, the average Crosscountry bike weight is 16.13% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
CUBE AIM SL 29 2018 bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the AIM SL 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AIM SL 29 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
