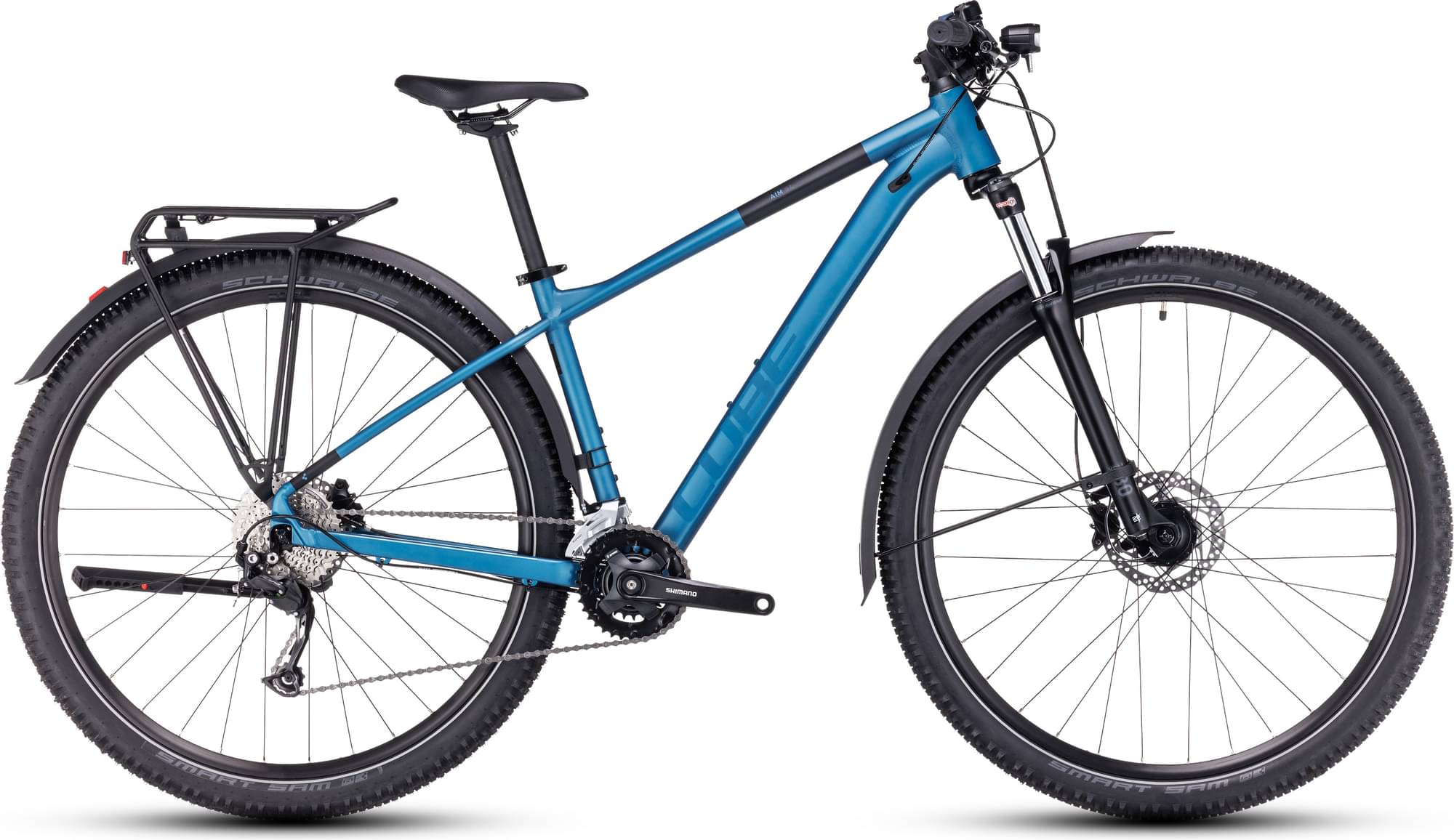

CUBE AIM, SLX ALLROAD 2022
2022 Road
Estimate price |
1,031$
Weight | 16.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Fork Suntour XCM -
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCM Disc, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Front Derailleur
Shimano FD-M2020, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M2010-9R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
Shimano FC-MT101, 36x22T
Bottom Bracket
Thun Paso-ML, 73mm BSA
Chain
KMC X9
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
Shimano HB-TX506, QR, 6-Bolt
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Cockpit
Stem
CUBE Performance Stem Race, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH868, Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.54 mm | 1.51 mm | 1.5 mm | 1.48 mm |
| Front Center | 646 mm | 660 mm | 683 mm | 704 mm | 726 mm | 747 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 586 mm | 588.6 mm | 618.3 mm | 628.4 mm | 647 mm | 660.9 mm |
| Reach | 375.4 mm | 389 mm | 400.2 mm | 417.2 mm | 431.7 mm | 447.6 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108.2 mm | 111 mm | 111 mm | 121.8 mm | 141.8 mm | 156.8 mm |
| Chainstay Length | 418 mm | 418 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1058 mm | 1073 mm | 1116 mm | 1137 mm | 1159 mm | 1180 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
AIM, SLX ALLROAD belongs to the Cube Aim model. CUBE launched 58 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
CUBE AIM 2022 is the most affordable bike of this model and has a price of 530$. On the other hand, CUBE AIM, SLX ALLROAD 2022, is the most expensive and costs 955$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
General Road bikes average price
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Road bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 955$. Comparing this to the average General Road bike price, we see that the price is 100.52% lower.
General Road bikes average weight
On a deeper look, we notice that the average weight of a General Road bike is 9 kg (19.84 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 16.7 kg (36.82 lbs), CUBE bike is much heavier than average. In conclusion, the average General Road bike weighs 85.56% less than AIM, SLX ALLROAD.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the AIM, SLX ALLROAD bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The AIM, SLX ALLROAD has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
