Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost148, AXH
Suspension Fork
Rock Shox Sid XX, Fast Black, XLoc, 15mm Maxle Stealth, Tapered, 100mm
Rear Shock
Rock Shox Monarch XX, 165x38mm, Xloc
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DSGS, ShadowPlus, 11-Speed, Direct Mount
Front Derailleur
Shimano XT FD-M8020-D, Side Swing
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-42T
Crank
Shimano XT FC-M8000-B2, Boost, 36x26T, 175mm (180mm for largest frame size)
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG601
Wheels
Rims
Fulcrum Red 55, 28/28 Spokes, 15x110mm / 12x148mm, 622x23C, Tubeless Ready
Tires
Schwalbe Rocket Ron, Addix Speed, Kevlar, 2.25, LiteSkin
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution SL 318.4, 31.8mm
Handlebar
Newmen Advanced 318.0, 740mm
Grips
CUBE Race SL Grip 29.5 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Selle Italia X3
Seatpost
Newmen Advanced, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 659 mm | 685 mm | 709 mm | 732 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm |
| Trail | 83 mm | 82 mm | 82 mm | 82 mm |
| Stack | 594 mm | 604 mm | 613 mm | 622 mm |
| Reach | 409 mm | 431 mm | 451 mm | 471 mm |
| Top Tube Length | 569 mm | 594 mm | 617 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 97 mm | 107 mm | 117 mm | 127 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1103 mm | 1129 mm | 1153 mm | 1176 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

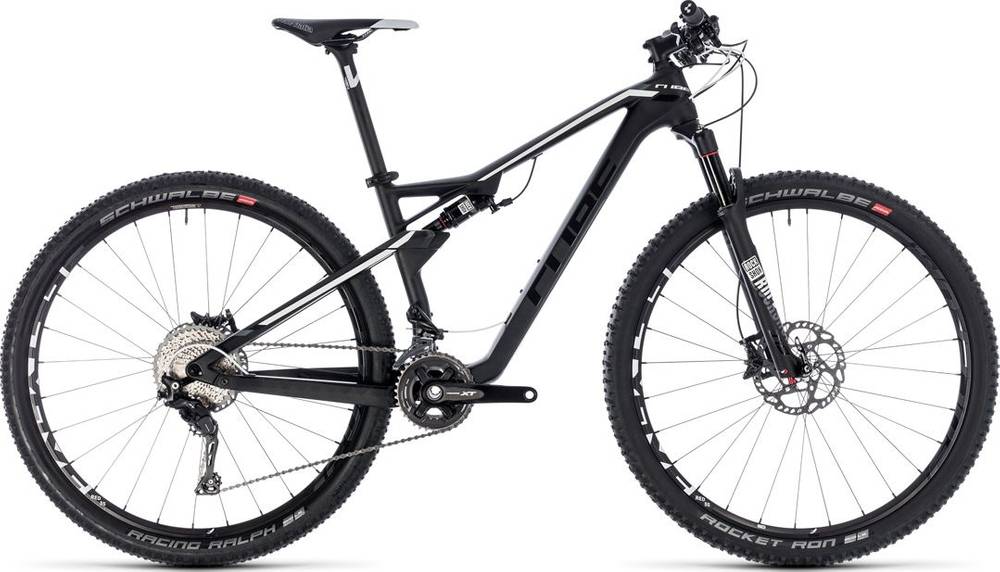

AMS 100 C:68 Race 29 is part of the Cube Ams model. 32 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
AMS 100 C:68 Race 29 weighs 11.6 kg (25.57 lbs) and is a bit lighter than the average. In conclusion, the average Crosscountry bike weighs 6.9% more than AMS 100 C:68 Race 29.
AMS 100 C:68 Race 29 components
Fork
CUBE AMS 100 C:68 Race 29 2018 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Rock Shox Monarch XX rear shock model, which has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the AMS 100 C:68 Race 29 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE AMS 100 C:68 Race 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
