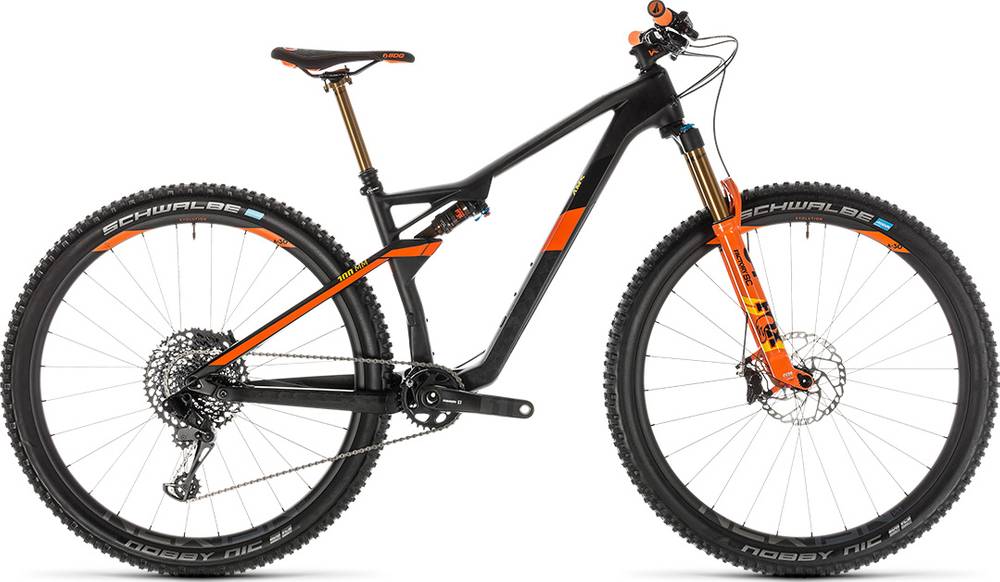

CUBE AMS 100 C:68 TM 29 2019
2019 Mountain
Estimate price |
4,587$
Weight | 11.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost 148, AXH
Suspension Fork
Fox 34 Float SC FIT4 Factory, Tapered, 15x110mm, 120mm, Kashima Coated
Rear Shock
Fox Float DPS Factory EVOL, 165x38mm, Kashima Coated
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Front Derailleur
Direct mount (none included)
Shift Levers
SRAM GX Eagle™ Trigger
Cassette
SRAM XG-1275, 10-50T
Crank
SRAM X1 Carbon Boost Eagle™ DUB, 30T, 175mm (170mm for smallest frame size)
Bottom Bracket
Press-fit
Chain
SRAM NX Eagle™
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Newmen Evolution SL A.30 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rear Hub
Newmen Evolution SL A.30 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Spokes
Newmen Evolution SL A.30 wheelset, straightpull
Tires
Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35
Brakes
Brakes
Shimano XT BR-M8020 (front) / M8000 (rear), Hydr. Disc Brake (180/160)
Brake Levers
Shimano XT BR-M8000
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.20, 760mm
Grips
SDG Slater
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG FLY MTN 2
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated, 457x150mm (409x125mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 668 mm | 693 mm | 716 mm | 740 mm |
| Rake | 55 mm | 53 mm | 52 mm | 53 mm |
| Trail | 85 mm | 87 mm | 88 mm | 87 mm |
| Stack | 603 mm | 613 mm | 622 mm | 632 mm |
| Reach | 395 mm | 418 mm | 438 mm | 458 mm |
| Top Tube Length | 573 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 97 mm | 107 mm | 117 mm | 127 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1113 mm | 1138 mm | 1161 mm | 1185 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
AMS 100 C:68 TM 29 is part of the Cube Ams model. CUBE launched 32 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
CUBE AMS 100 C:68 Race 29 2019 is the most economical model, with a starting price of 3715$. CUBE AMS 100 C:68 SLT 29 2019 on the other hand costs 6370$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. In conclusion, this bike price is 122.89% more expensive than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly lighter than average, AMS 100 C:68 TM 29 has a weight of 11.9 kg (26.23 lbs). In other words, this model is 4.2% lighter than the average Crosscountry bike.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Factory EVOL rear shock model, which has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The AMS 100 C:68 TM 29 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AMS 100 C:68 TM 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the AMS 100 C:68 TM 29. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
