Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6 Superlight, Double Butted, Smooth Welded, 3D Flat Mount Disc Brake Dropouts, Road Comfort Geometry, Fender Option, X12
Suspension Fork
CUBE CSL Race Disc, One Piece 3D-Forged Steerer/Crown, Carbon Blades, 1 1/8" - 1 1/4" Tapered, Flat Mount, 100mm X12
Drivetrain
Rear Derailleur
Shimano 105 RD-5800GS, 11-Speed
Front Derailleur
Shimano 105 FD-5800, 31.8mm Clamp
Shift Levers
Shimano ST-RS505
Cassette
Shimano 105 CS-5800, 11-32T
Crank
Shimano 105 FC-5800, 50x34T
Chain
Shimano CN-HG600-11
Wheels
Rims
Mavic Aksium Disc, 100x12mm / 142x12mm, 6-Bolt
Tires
Conti Grand Sport Race SL, 25-622
Brakes
Brakes
Shimano BR-RS505, Hydr. Disc Brake, Flat Mount (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Wing Race Bar Compact
Headset
FSA Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4"
Seat
Saddle
CUBE RP 1.0
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.55 mm | 1.58 mm | 1.62 mm | 1.67 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 262 mm | 262 mm | 262 mm | 262 mm |
| Front Center | 581 mm | 591 mm | 605 mm | 614 mm | 624 mm | 628 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 49 mm |
| Trail | 61 mm | 58 mm | 54 mm | 54 mm | 54 mm | 56 mm |
| Stack | 530 mm | 553 mm | 583 mm | 602 mm | 621 mm | 641 mm |
| Reach | 361 mm | 368 mm | 377 mm | 380 mm | 384 mm | 383 mm |
| Top Tube Length | 509 mm | 529 mm | 552 mm | 567 mm | 582 mm | 587 mm |
| Seat Tube Angle | 74.6 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 130 mm | 152 mm | 182 mm | 202 mm | 222 mm | 242 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 409 mm | 409 mm |
| Wheelbase | 977 mm | 987 mm | 1001 mm | 1010 mm | 1022 mm | 1026 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

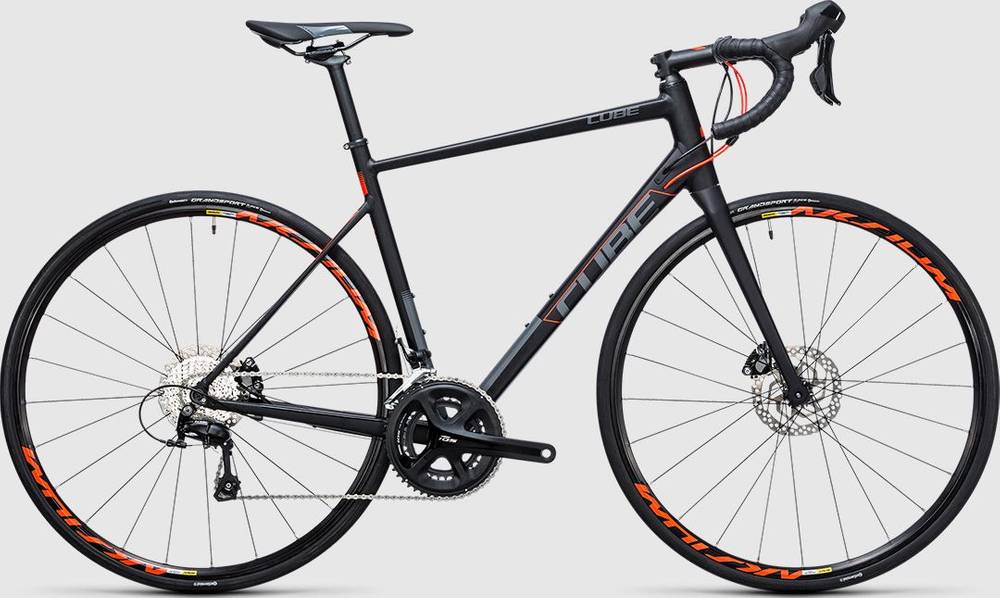

ATTAIN SL Disc completes the Cube Attain model. 63 bikes variations carry this model name so far. Take a sneak peek at all Cube Attain bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Endurance bikes average weight
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE ATTAIN SL Disc it’s weighing 9.45 kg (20.83 lbs). At this weight, is much heavier than average. In short, the average Endurance bike weight is 15.24% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on ATTAIN SL Disc are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
