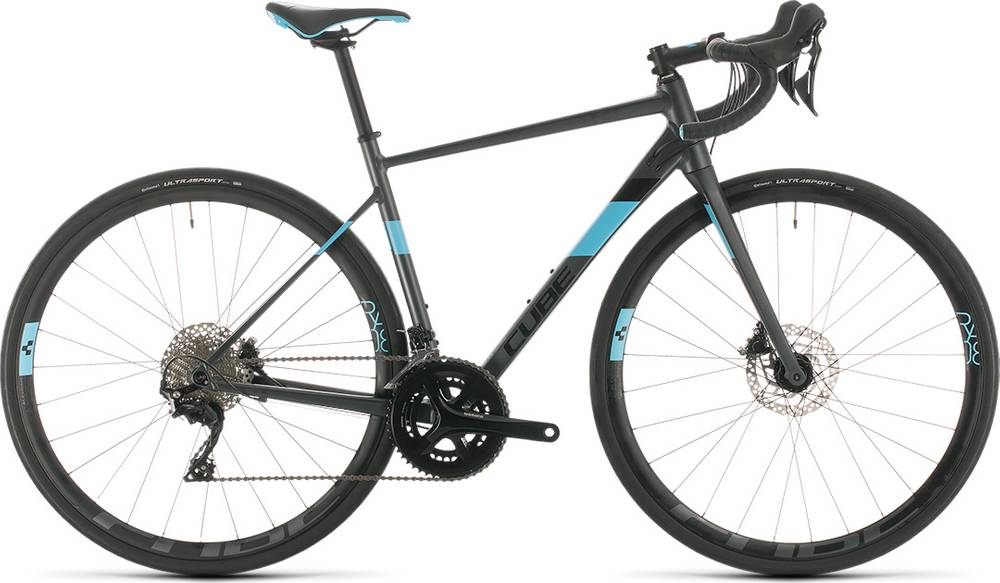

CUBE AXIAL WS RACE 2020
2020 Road
Estimate price |
1,452$
Weight | 9.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium, CUBE CSL Race Disc, One Piece 3D-Forged, Carbon Blades, Flat Mount
Suspension Fork
CUBE CSL Race Disc, One Piece 3D-Forged Steerer/Crown, Carbon Blades, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm
Drivetrain
Rear Derailleur
Shimano 105, 11-34T, 2x11
Front Derailleur
Shimano 105 FD-R7000, 31.8mm Clamp
Shift Levers
Shimano 105 ST-R7025
Cassette
Shimano 105 CS-HG700, 11-34T
Crank
Shimano FC-RS510, 50x34T
Chain
Shimano CN-HG601
Wheels
Rims
CUBE RA 0.8 Aero Disc
Tires
Conti Ultra Sport 2, 28-622
Brakes
Brakes
Shimano 105
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Compact Race Bar
Headset
FSA Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4"
Seat
Saddle
Natural Fit Venec WS
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 262 mm | 262 mm |
| Front Center | 576 mm | 581 mm | 591 mm | 605 mm |
| Rake | 45 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 61 mm | 58 mm | 54 mm |
| Stack | 521 mm | 534 mm | 557 mm | 587 mm |
| Reach | 361 mm | 365 mm | 372 mm | 381 mm |
| Top Tube Length | 506 mm | 513 mm | 533 mm | 556 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 70.6 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 130 mm | 152 mm | 182 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 976 mm | 981 mm | 991 mm | 1005 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 696 mm | 719 mm | 746 mm | 776 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
AXIAL WS RACE completes the Cube Axial model. 50 bikes variations carry this model name so far. Take a sneak peek at all Cube Axial bikes models from 2020, by clicking here.
Model range prices
CUBE AXIAL WS 2020 is the most economical model, with a starting price of 775$. CUBE AXIAL WS C:62 SL 2020 on the other hand costs 2587$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1344$. In conclusion, this bike price is 74.55% smaller than the price of the average Endurance bike.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, AXIAL WS RACE has a weight of 9.7 kg (21.38 lbs). In short, the average Endurance bike weight is 18.29% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on AXIAL WS RACE are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE AXIAL WS RACE has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
