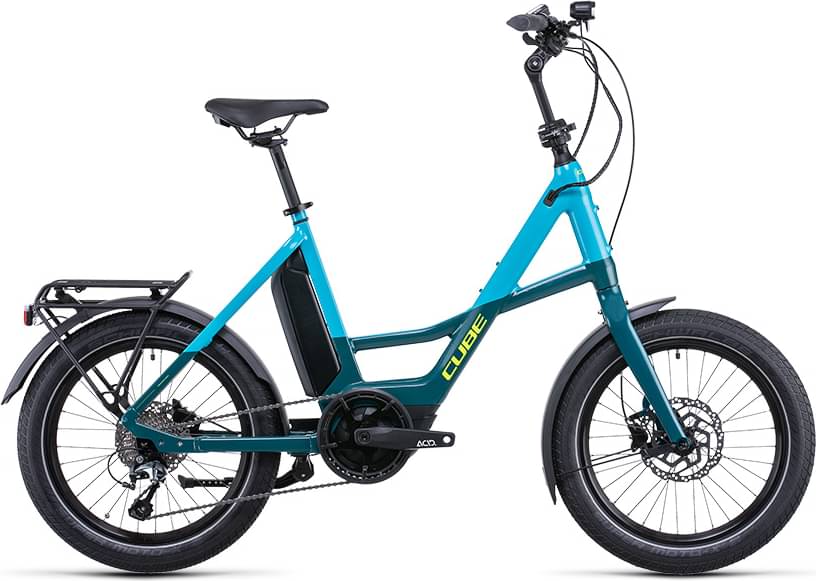

CUBE COMPACT SPORT HYBRID 500 2022
2022 E-bike
Estimate price |
3,096$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset Tiagra -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
Suspension Fork
Aluminium 20"
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700GS, 10-Speed
Shift Levers
Shimano Tiagra SL-4700
Cassette
Shimano CS-HG500, 11-34T
Crank
ACID E-Crank, 165mm, 44T
Chain
KMC X10
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Super Moto-X, Double Defense, 62-406
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Cockpit
Stem
BySchulz Speedlifter Twist Pro SDS T15
Handlebar
CUBE Comfort Trail Bar, 680mm
Grips
Natural Fit Comfort
Headset
Cube H835D3, Semi-Integrated, Sealed bearing
Seat
Saddle
Natural Fit Sequence
Seatpost
Newmen Evolution, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.34 mm |
| Front Center | 635 mm |
| Rake | 55 mm |
| Stack | 539.3 mm |
| Reach | 402.5 mm |
| Top Tube Length | 575 mm |
| Seat Tube Angle | 73.2 ° |
| Seat Tube Length | 480 mm |
| Head Tube Angle | 72 ° |
| Head Tube Length | 260 mm |
| Chainstay Length | 440 mm |
| Wheelbase | 1074 mm |
| Bottom Bracket Drop | 21 mm |
| Standover Height | 495 mm |
| Wheels | 20" |
| Rider Min Height | 120 cm |
About this model
COMPACT SPORT HYBRID 500 is a Cube E Compact model. There are 8 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the CUBE COMPACT SPORT HYBRID 500 2022 has a starting price of 2866$. CUBE COMPACT HYBRID 500 2022 on the other hand is the most expensive at 2866$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 2866$. Comparing this to the average Commuter e-bike price, we see that the price is 11.56% more expensive.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 23.1 kg (50.93 lbs), CUBE e-bike is a bit lighter than average. In short, the average Commuter e-bike weight is 9.09% higher than this one.
COMPACT SPORT HYBRID 500 components
Fork material
COMPACT SPORT HYBRID 500 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the COMPACT SPORT HYBRID 500 e-bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
