Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NCX -
Groupset XT, Shimano -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Cross Taper Double Butted
Suspension Fork
SR Suntour NCX D-RL Coil Taper, 63mm
Drivetrain
Rear Derailleur
Shimano XT RD-T8000, 10-Speed
Front Derailleur
Shimano LX FD-T670, Top Swing, 31.8mm
Shift Levers
Shimano SLX SL-M670, Rapidfire-Plus
Cassette
Shimano CS-HG500, 11-34T
Crank
Shimano FC-T551, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
Chain
KMC X10
Pedals
CUBE Aluminium MTB
Wheels
Front Hub
Shimano HB-M4050
Rear Hub
Shimano FH-M4050
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Tour
Headset
FSA Orbit Z-t ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal Viper
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.62 mm | 1.63 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm |
| Front Center | 618 mm | 628 mm | 644 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Trail | 76 mm | 76 mm | 76 mm |
| Stack | 629 mm | 638 mm | 657 mm |
| Reach | 386 mm | 393 mm | 402 mm |
| Top Tube Length | 576 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1058 mm | 1068 mm | 1084 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 |
About this model

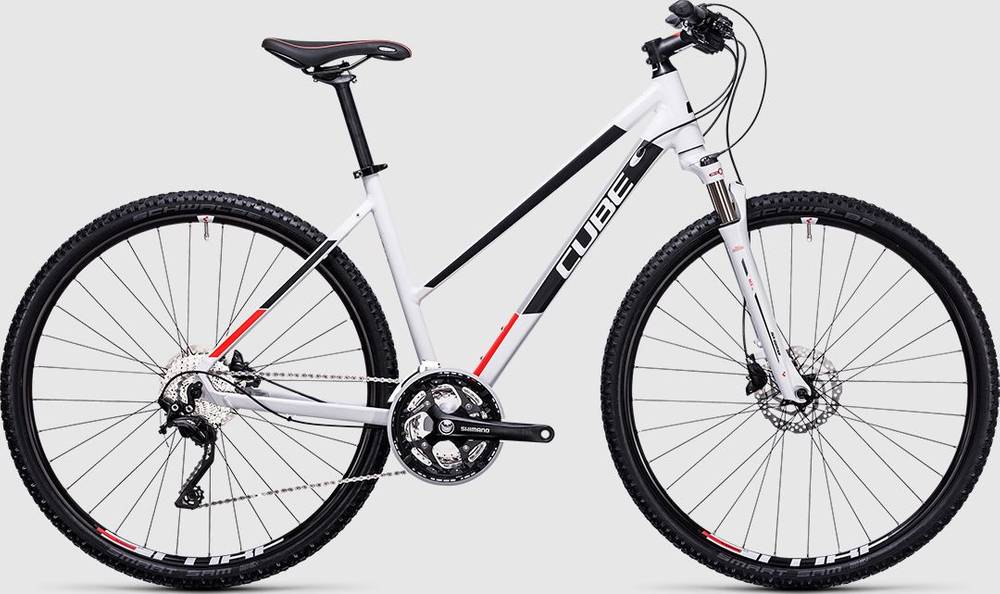

CROSS is a Cube Cross model. CUBE released 72 bikes variations of this model so far. You can easily view all of the Cube Cross bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Touring bikes average price
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, even though the average price of a Touring bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Touring bikes average weight
On a deeper look, we notice that the average weight of a Touring bike is 13.35 kg (29.43 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, CROSS has a weight of 12.75 kg (28.11 lbs). In other words, this model is 4.71% lighter than the average Touring bike.
Overview of components
Fork
CUBE CROSS 2017 bike is equipped with the SunTour NCX fork, and has mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the CROSS bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
