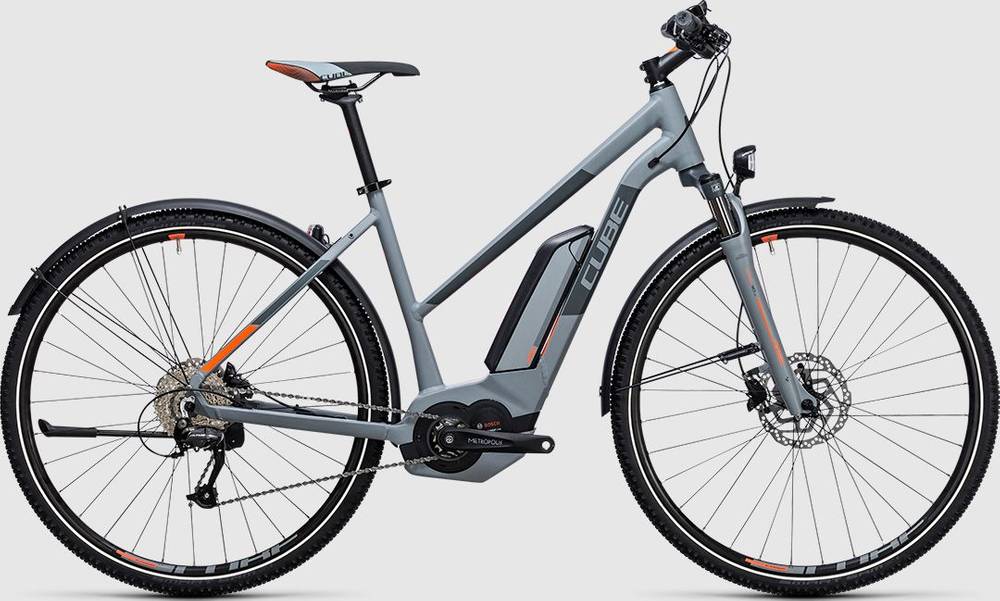

CUBE CROSS HYBRID ONE Allroad 400 2017
2017 E-bike
Weight | 21.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Altus, FSA -
Suspension Hardtail -
Motor Bosch 250W 48Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort, Gravity Casting Bracket, Double Butted, Disc Only
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M370-SGS, 9-Speed
Shift Levers
Shimano SL-M370, Rapidfire-Plus
Cassette
Shimano CS-HG300, 12-36T
Crank
FSA Metropolis Urban AL-8, 15T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR
Rear Hub
Shimano FH-TX505, QR
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Cube Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (48Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.68 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 637 mm | 644 mm | 651 mm |
| Rake | 42 mm | 42 mm | 47 mm |
| Trail | 81 mm | 78 mm | 66 mm |
| Stack | 631 mm | 633 mm | 668 mm |
| Reach | 384 mm | 396 mm | 397 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1106 mm | 1113 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
About this model
CROSS HYBRID ONE Allroad 400 belongs to the Cube E Cross model. 67 e-bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring e-bikes average price
If you want an acceptable Touring e-bike you should know that the average price is 2429$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Touring e-bikes average weight
On a deeper look, we notice that the average weight of a Touring e-bike is 25.55 kg (56.33 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 21.9 kg (48.28 lbs), CUBE e-bike is much lighter than average. To sum up, it’s 16.67% lighter than the average weight of Touring e-bikes.
CROSS HYBRID ONE Allroad 400 components
Fork
CUBE CROSS HYBRID ONE Allroad 400 2017 e-bike is equipped with the SunTour NEX fork, and has mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, CUBE CROSS HYBRID ONE Allroad 400 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE CROSS HYBRID ONE Allroad 400 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
