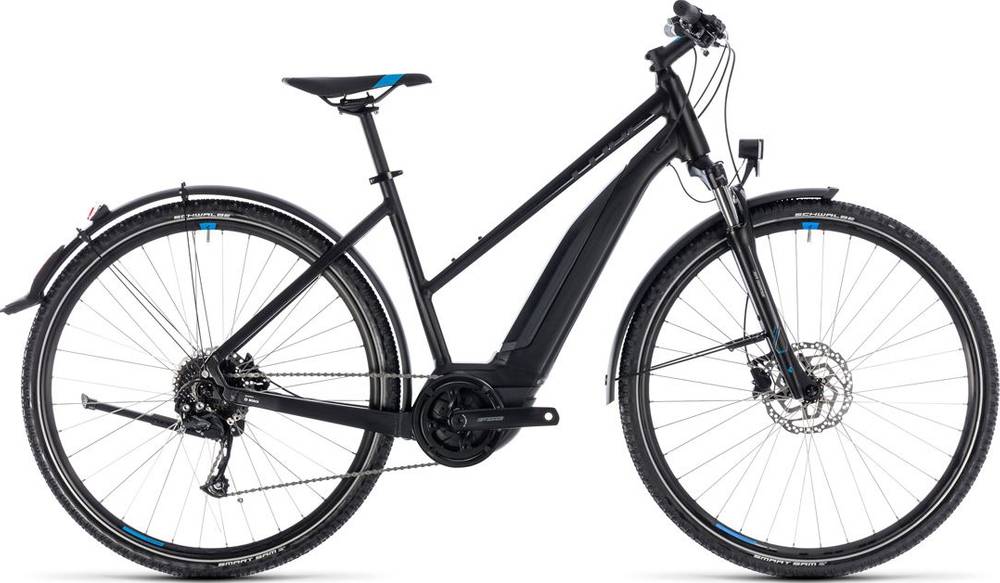

CUBE CROSS HYBRID ONE Allroad 400 Trapeze 2018
2018 E-bike
Weight | 21.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Sport, Full Integrated Battery, Double Butted, Disc Only
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M2000-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA Metropolis Comfort, 38T, Chainguard
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Cube Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.6 mm | 1.61 mm |
| Front Center | 644 mm | 644 mm | 656 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 89 mm | 83 mm | 83 mm |
| Stack | 621 mm | 635 mm | 649 mm |
| Reach | 389 mm | 396 mm | 403 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1113 mm | 1113 mm | 1125 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
About this model
CROSS HYBRID ONE Allroad 400 Trapeze is part of the Cube E Cross model. CUBE released 67 e-bikes variations of this model so far. Take a sneak peek at all Cube E Cross e-bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 21.2 kg (46.74 lbs), the CROSS HYBRID ONE Allroad 400 Trapeze model is considerably lighter than average. In conclusion, the average Hybrid e-bike weighs 12.22% more than CROSS HYBRID ONE Allroad 400 Trapeze.
CROSS HYBRID ONE Allroad 400 Trapeze components
Fork
The CROSS HYBRID ONE Allroad 400 Trapeze comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the CROSS HYBRID ONE Allroad 400 Trapeze model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSS HYBRID ONE Allroad 400 Trapeze has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
